HITACHI SEIKI - HG 630BE-MIL-HIT-1998-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- HITACHI SEIKI HG 630 Horizontal Machining Center

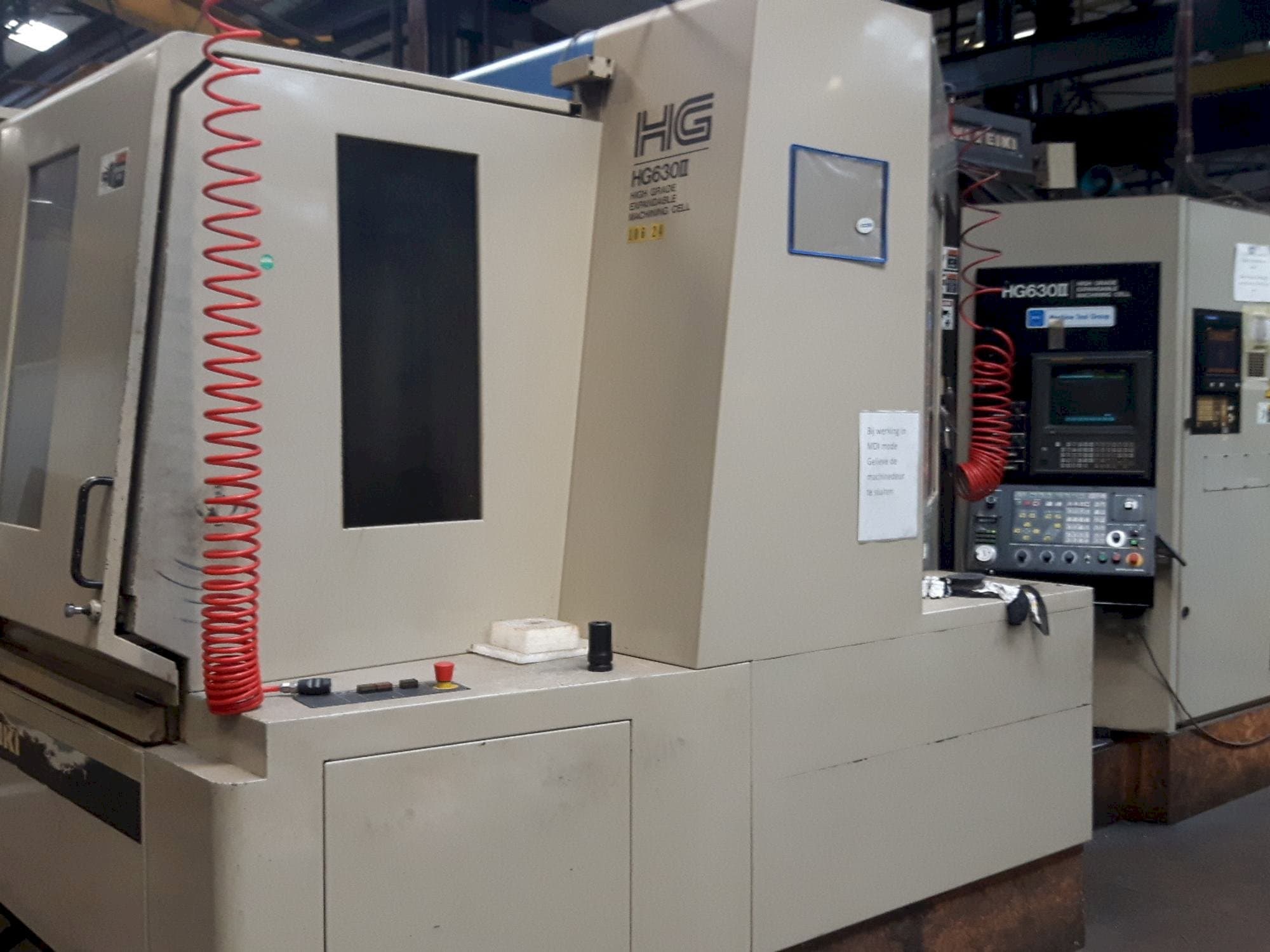

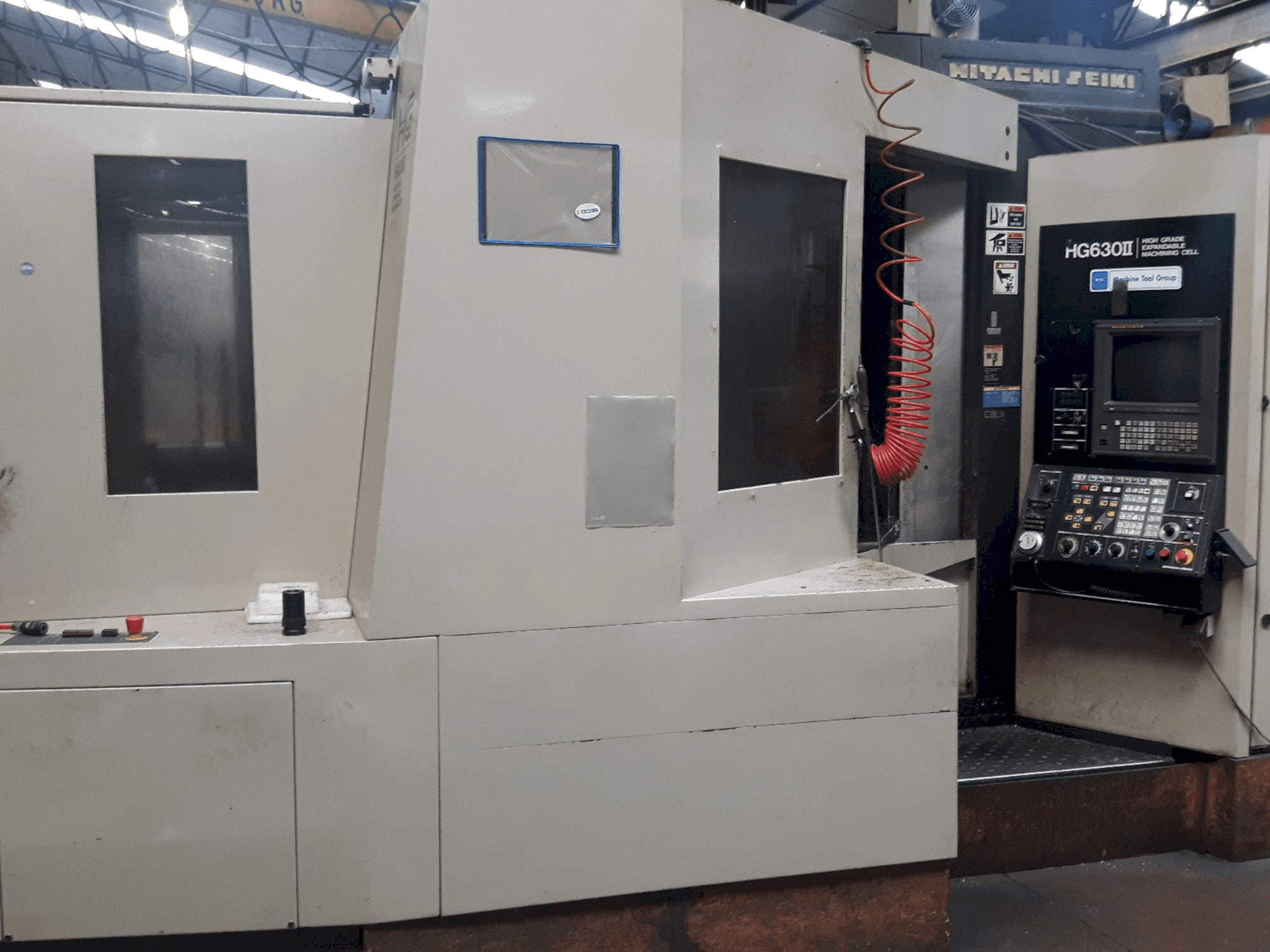

This HITACHI SEIKI HG 630 Horizontal Machining Center, made in Japan in 1998, is operated through a FANUC 15MB control unit. This model counts with a spindle speed of 16000 rpm, it has 120 slots in storage as well. It presents very good conditions, as it has been regularly serviced.
Overview
- brand: HITACHI SEIKI
- year: 1998
- MODEL: HG 630
- production hours: 40000
- application type: Milling
- Location: Belgium
- machine type: Horizontal Machining Centre
- control unit brand: FANUC
Technical Information - HITACHI SEIKI HG 630
Control Unit
- Control Brand: FANUC
- Control Model: 15MB
Dimensions
- Machine Weight: 14000 kg
- Table Length: 630 mm
- Table Width: 630 mm
Movement
- X-axis Travel: 950 mm
- Y-axis Travel: 820 mm
- Z-axis Travel: 760 mm
Technical Specification
- Max. Tool Weight: 20 kg
- Number of Tools: 120
- Spindle Speed: 16000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Regularly maintained machine in very good condition
Technical Machine Benefits
- External and internal through spindle 15bar
- Chip to chip time : 7 sec
- Feeds: rapid x - y - z: 24m/min
- Pallet index positions: 360* 1degree
- Spindel: speeds – power- torque : 80-2930 rpm - 15/11kw – 391 nm
- 2 pallets
Machine History
Industries
Machinery building
End product
Machinery parts
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
