HELLER - PT 16DE-MIL-HEL-2016-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used HELLER PT 16 For Sale | gindumac.com

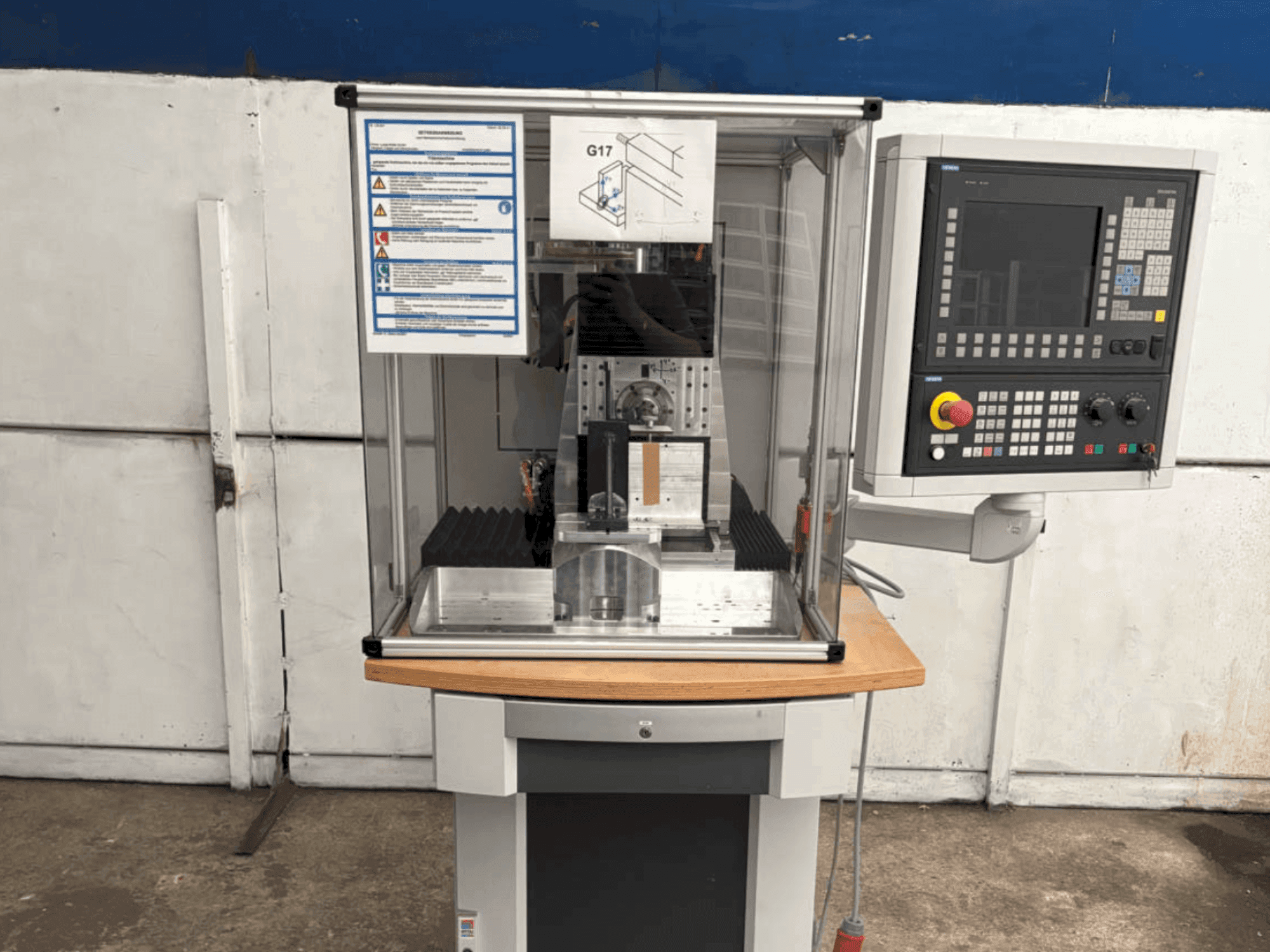

This 3-axis HELLER PT 16 was manufactured in 2016. It features a multifunction spindle driven by a compact servo motor, achieving speeds up to 15 m/min and a maximum of 9,000 rpm. The machine offers a 200mm stroke in 3 axes with ball rail guides and screws for enhanced precision. Consider the opportunity to buy this HELLER PT 16 CNC milling machine. Contact us for more information about this machine.
Overview
- brand: HELLER
- year: 2016
- MODEL: PT 16
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - HELLER PT 16
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D sl
Movement
- Number of Axes: 3
Technical Specification
- Spindle Speed: 9000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Speeds: up to 15 m/min
- Torque: 12. 75 nm
- Multifunction spindle: equipped with a compact servo motor
- Spindle inserts: er 16, hsk e25 (manual and automated)
- Basic machine: offers numerous expansion options for workpiece carriers
- Fixed table for 3-axis operation
- The machine is 3 axis, but the program can display five.
- Equipped with ball rail guides and ball screws for efficient movement
Extra Information
Each ProfiTrainer is designed for multifunctional use with the ability to adapt for various spindle requirements. Base plate; X/Z cross table, Y column; Horizontal spindle, manual tool change, Tool holder, ER16 collet Table, fixed rotation axis B Drives and CNC: Siemens 840D sl Mobile housing, drawer, protective cover Operating voltage: 400V X-axis: Travel range: From -100 to 100 mm Acceleration: 2 m/s² Speed (rapid traverse): 15 m/min Jerk G0 rapid traverse (effective): 50 m/s³ Jerk G1 feed (effective): 50 m/s³ Y-axis: Travel range: From 25 to 225 mm Acceleration: 2 m/s² Speed (rapid traverse): 15 m/min Jerk G0 rapid traverse (effective): 50 m/s³ Jerk G1 feed (effective): 50 m/s³ Z-axis: Travel range: From 105 to 305 mm Acceleration: 2 m/s² Speed (rapid traverse): 15 m/min Jerk G0 rapid traverse (effective): 50 m/s³ Jerk G1 feed (effective): 50 m/s³
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
