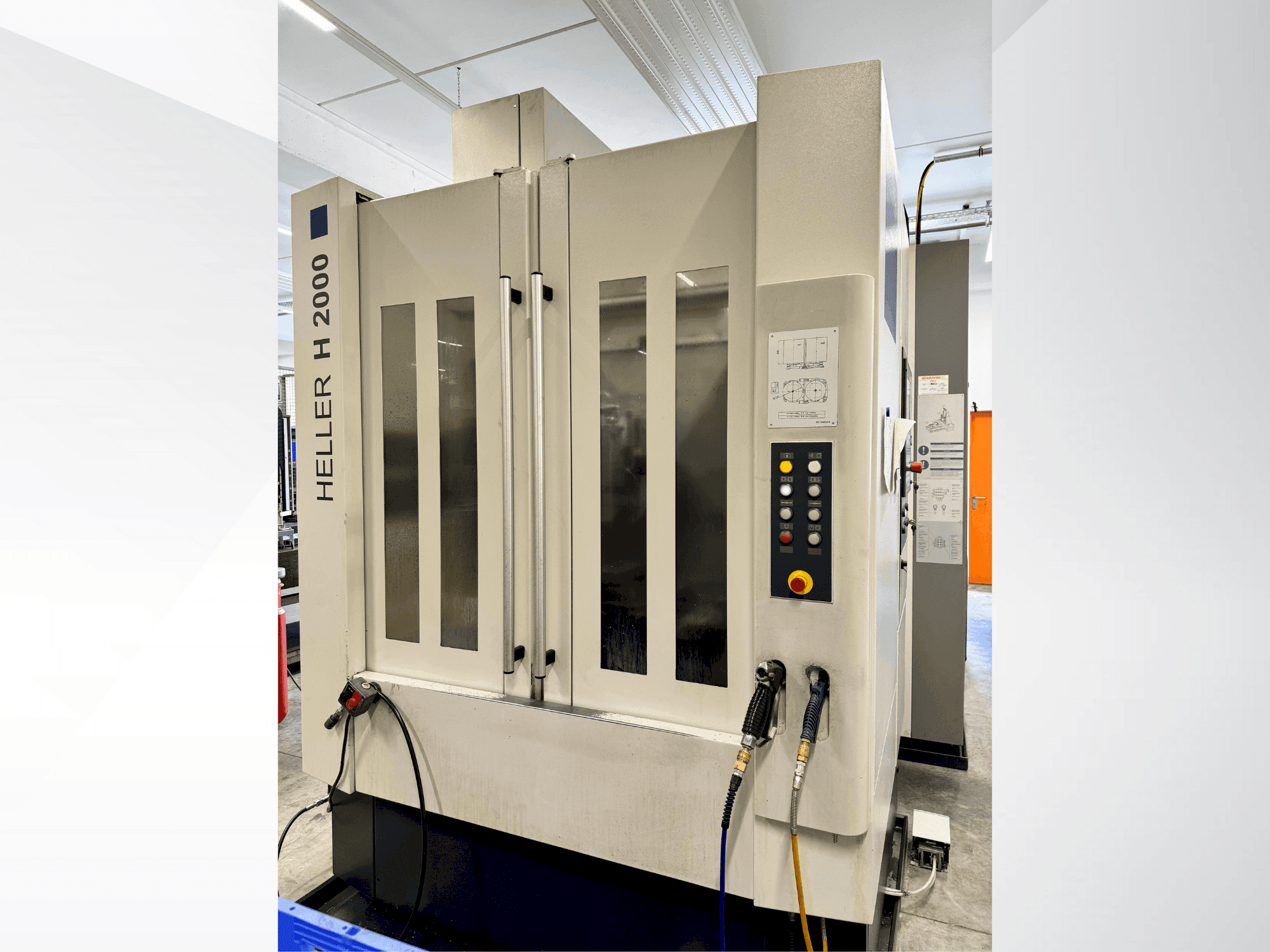

Front view of HELLER H2000  machine

HELLER - H2000DE-MIL-HEL-2014-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis HELLER H2000 horizontal machining center was manufactured in 2014. Equipped with a Siemens 840D solution line control, it features a robust spindle capable of 10,000 rpm and 38 kW power. It includes an NC rotary table and a tool magazine with 80 slots for HSK 63 holders. Additional features include an infrared receiver with a Renishaw measuring probe and a scraper belt conveyor. For more information about this horizontal machining center, please reach out to us.

Overview

  • brand: HELLER
  • year: 2014
  • MODEL: H2000
  • production hours: 41841
  • application type: Milling
  • Location: Germany
  • machine type: Horizontal Machining Centre
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - HELLER H2000

General Data

  • Measurements width: 6200 MM
  • Measurements depth: 3400 MM
  • Measurements height: 2500 MM

Control Unit

  • Model: 840D solution line
  • Brand: SIEMENS

Main drive

  • Spindle speed range: 10,000 1/MIN
  • Spindle motor power: 38 kw
  • Tool taper: HSK 63

Tools

  • Slots in storage: 80

    Additional equipment

    • - Infrared receiver for measuring probe
    • - Renishaw measuring probe
    • - Scraper belt conveyor
    • - Fast drill breakage control
    • - NC rotary table
    • - Media interface, 5-way for workpiece clamping

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - High-performance control unit, powerful spindle, efficient operational features
      • Qualitative Machine Benefits:
        • - Maintained within tolerances, service package from heller
        • - Last geometry report from november 2023 confirms all tolerances are ok.

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
