HEBROCK - AKV 3005 DK-FDE-EDG-HEB-2004-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

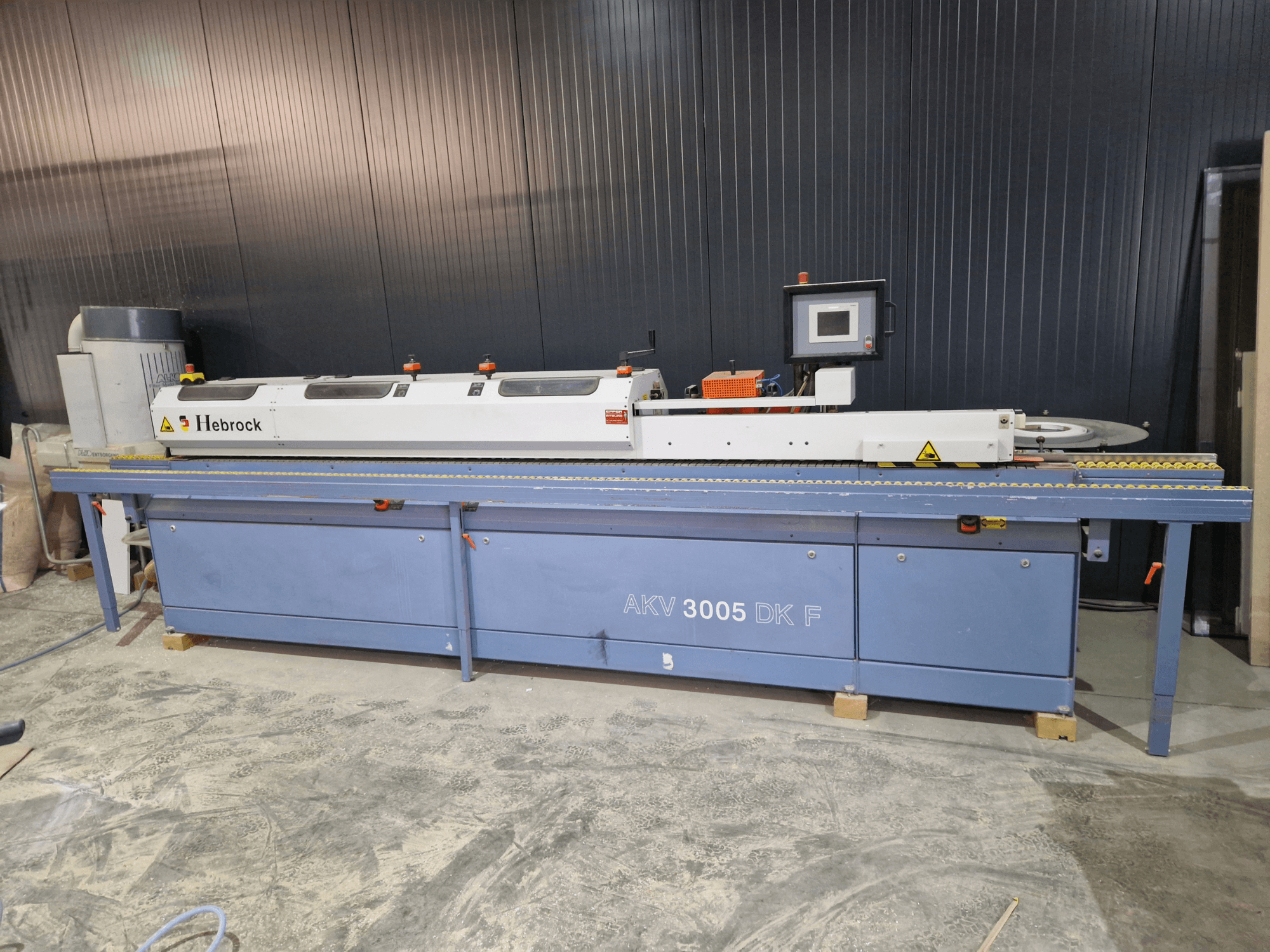

Edgebander manufactured in 2004. This HEBROCK AKV 3005 DK-F features a maximum edge thickness of 3 mm and accommodates workpiece thicknesses from 8 to 60 mm. It includes a jointing milling unit with 2 milling heads, a gluing tank with a contact roller, and a combination milling unit that is pneumatically adjustable. If you are looking to get high-quality edgebanding capabilities, consider the HEBROCK AKV 3005 DK-F machine we have for sale. Contact us for further details.

Overview

  • brand: HEBROCK
  • year: 2004
  • MODEL: AKV 3005 DK-F
  • application type: Edge Banding
  • Location: Germany
  • machine type: Edgebander

Technical Information - HEBROCK AKV 3005 DK-F

Dimensions

  • Machine Height: 1530 mm
  • Machine Length: 4700 mm
  • Machine Weight: 1150 kg
  • Machine Width: 1200 mm

Additional Information

  • Max. edge thickness: 3 mm

  • Workpiece thickness range: 8–60 mm

  • Feed speed: approx. 10 m/min

  • Readiness time: approx. 5 min

  • Minimum workpiece length: 190 mm

  • Minimum workpiece width: 80 mm

  • Control: PLC

  • Preparation for interchangeable trays

  • Units/Stations:

    • Jointing milling unit with 2 milling heads

    • Gluing tank with contact roller

    • Pressure zone

    • Trim shear

    • Trim saw

    • Combination milling unit (flush/chamfer/radius), pneumatically adjustable

    • 2 milling stations

    • Corner copying unit

    • Short surface scraper

    • Radius scraper

    • Spraying unit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
