- ➤ Used OTT Pacific V6-F Edgebander For Sale | gindumac.com

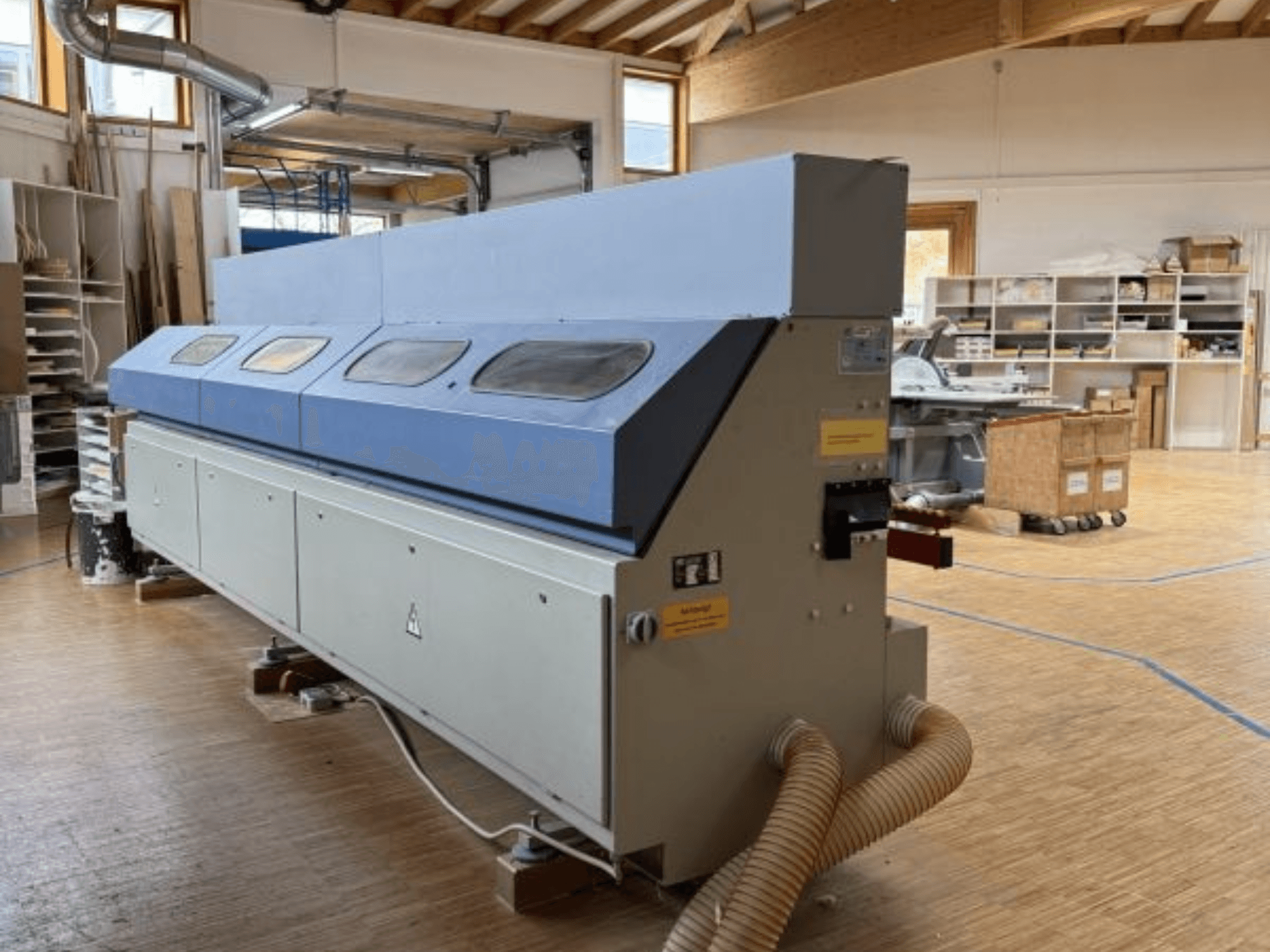

Edgebander manufactured in 2000. This OTT Pacific V6-F features an edge thickness capability of 0.2 - 6 mm and can handle workpiece thicknesses from 8 to 42 mm. It operates at a feed speed of 12 m/min and includes various processing units such as joining mills, a gluing unit, and a polishing unit. If you are looking to get high-quality edge banding capabilities, consider the OTT Pacific V6-F machine we have for sale. Contact us for further details.
Overview
- brand: OTT
- year: 2000
- MODEL: Pacific V6-F
- application type: Edge Banding
- Location: Germany
- machine type: Edgebander
Technical Information - OTT Pacific V6-F
Dimensions
- Machine Weight: 2000 kg
Additional Information
Condition: Not rebuilt – sold without warranty
Edge thickness: 0.2–6 mm
Workpiece thickness: 8–42 mm
Workpiece width: min. 70 mm
Workpiece length: min. 150 mm
Feed speed: 12 m/min
Electrical connection: 3 x 400 V, 50 Hz
Exhaust connection: 2 x Ø 120 mm at 20 m/sec
Exhaust capacity: 30 m³/h
Processing units and features (part of the machine)
Joining mills: 2 x 1.5 kW, 12,000 rpm, 200 Hz; two application-controlled work spindles
Gluing unit: Rapid-heating tank with Melt-matic; automatic edge magazine with optical monitoring (for strip edges in fixed lengths)
Release agent spray system
Crosscut unit: 2 x 0.2 kW, 12,000 rpm, 200 Hz; automatic swivel 0°/3°
Flush milling unit: 0°/15°/30°/45°; 2 x 0.43 kW, 12,000 rpm, 200 Hz
Radius milling unit: R2–R5; 2 x 0.3 kW, 12,000 rpm, 200 Hz
Corner rounding milling unit: 2 x 0.3 kW, 12,000 rpm, 200 Hz
Quick-change stations: 2 for milling units
Scrapers: 2 x carbide scrapers
Polishing unit: 2 x 0.2 kW, 2,800 rpm, 50 Hz
Additional equipment
None included or specified beyond the machine’s built-in units and features.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
