HAITIAN - MA 3800 IIIDE-INJ-HAI-2021-00001
Do you have further questions? Contact us.
![sales contact](https://s3.eu-central-1.amazonaws.com/gindumac/staff/profile_pictures/Alessandro_Martini.png)
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
![whatsapp](https://gindumac.s3.eu-central-1.amazonaws.com/images/email-icons/whatsapp.png)
- GINDUMAC
- Products
- Plastics Processing Machinery

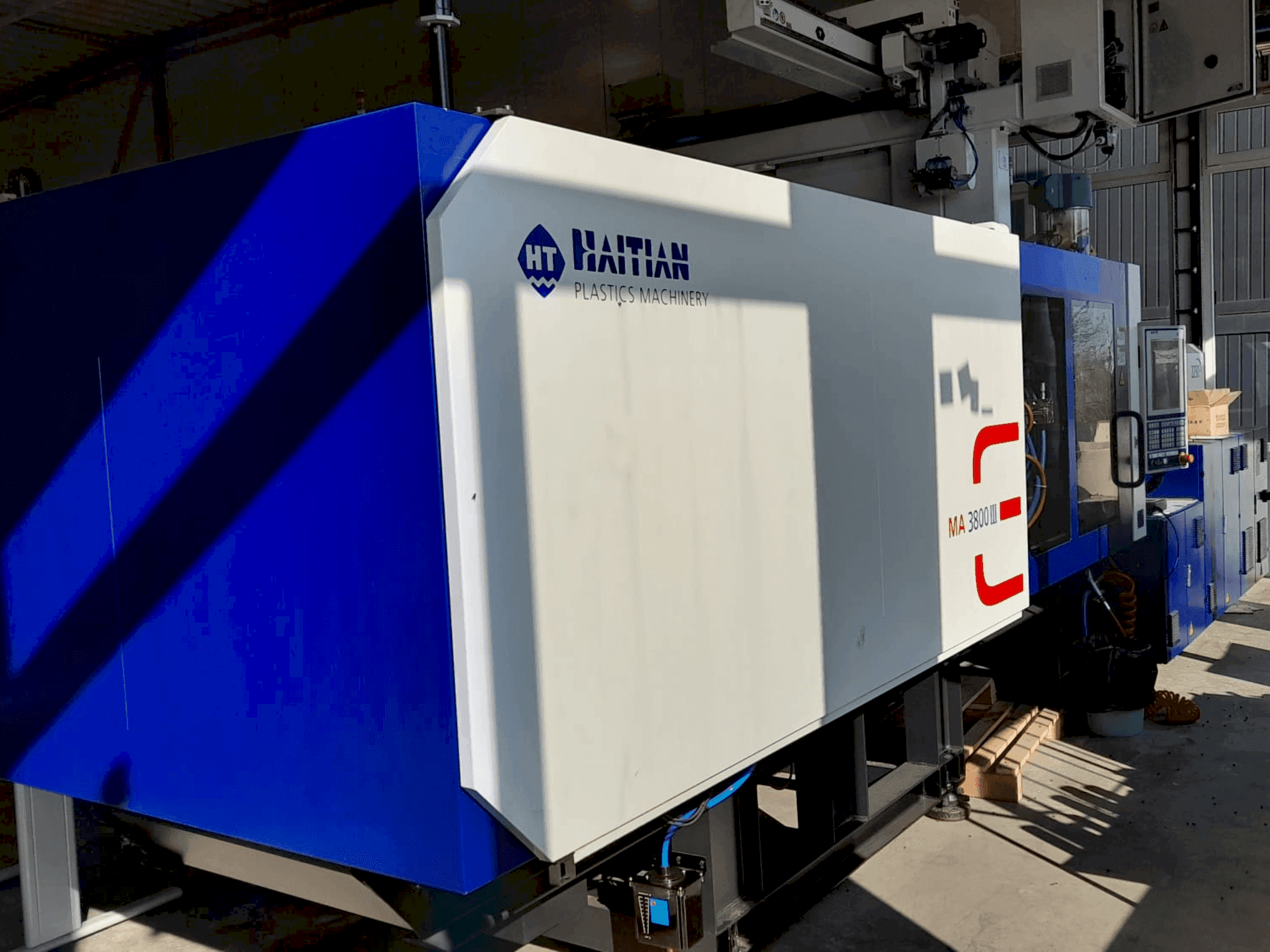

- HAITIAN MA 3800 III Injection moulding machine
This HAITIAN MA 3800 III Injection moulding machine was manufactured in the year 2021 and offers a high clamping force of 3800 tons and precise control for efficient and reliable injection molding processes. With a screw diameter of 70 mm and a shot weight of up to 2250 grams, it is suitable for a wide range of applications in plastics processing. The machine has advanced features for a fast injection speed of up to 530 mm/s and a closing speed of 300 mm/s, resulting in increased productivity and efficiency. The maximum opening distance of 2900 mm enables the processing of larger workpieces. It comes with a Hilectro Robot with max. payload 12kg and EUROMAP 67 interface connection.
Overview
- brand: HAITIAN
- year: 2021
- MODEL: MA 3800 III
- production hours: 1079
- application type: Injection Moulding
- Location: Germany
- machine type: Injection Moulding Machine
- availability: Sold
Technical Information - HAITIAN MA 3800 III
Injection Unit
- Screw diameter: 70 mm
- Shot weight: 2250 gr
- Injection pressure: 2050 bar
- Plasticizing rate max.: 530 mm/s
Clamping unit
- Clamping force: 3800 kN
- Max open daylight: 2900 mm
Additional equipment
- - Hilectro Robot (EUROMAP 67 Interface, Max. payload 12 kg)
Additional Information
- Technical Machine Benefits:
- - Mold opening time: 10. 5 seconds
- - Injection speed: 530 mm/s
- - Closing speed: 300 mm/s
- - Hilectro Robot >> Power Supple : 400 to 480 Vac 3-phase without neutral +/-10% 50/60Hz // EUROMAP 67 Interface // Traverse=2000 mm (maximum 2500mm) // Crosswise=900 mm // Vertical= 1300 mm // 8I/80 available // Standard EUROMAP 18 spacer // With 6m cable // Interface + EUROMAP 67 connection // Pendant cable:8m // R1=0-90* pneumatic // Maximum payload: 12 kg // 2 Vacuum circuit // 2 pressure circuit
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
