HAITIAN - MA 3500 III PlusDE-INJ-HAI-2021-00002
Do you have further questions? Contact us.
![sales contact](https://s3.eu-central-1.amazonaws.com/gindumac/staff/profile_pictures/Alessandro_Martini.png)
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
![whatsapp](https://gindumac.s3.eu-central-1.amazonaws.com/images/email-icons/whatsapp.png)
- GINDUMAC
- Products
- Plastics Processing Machinery
- HAITIAN MA 3500 III Plus (2021) Injection moulding machine

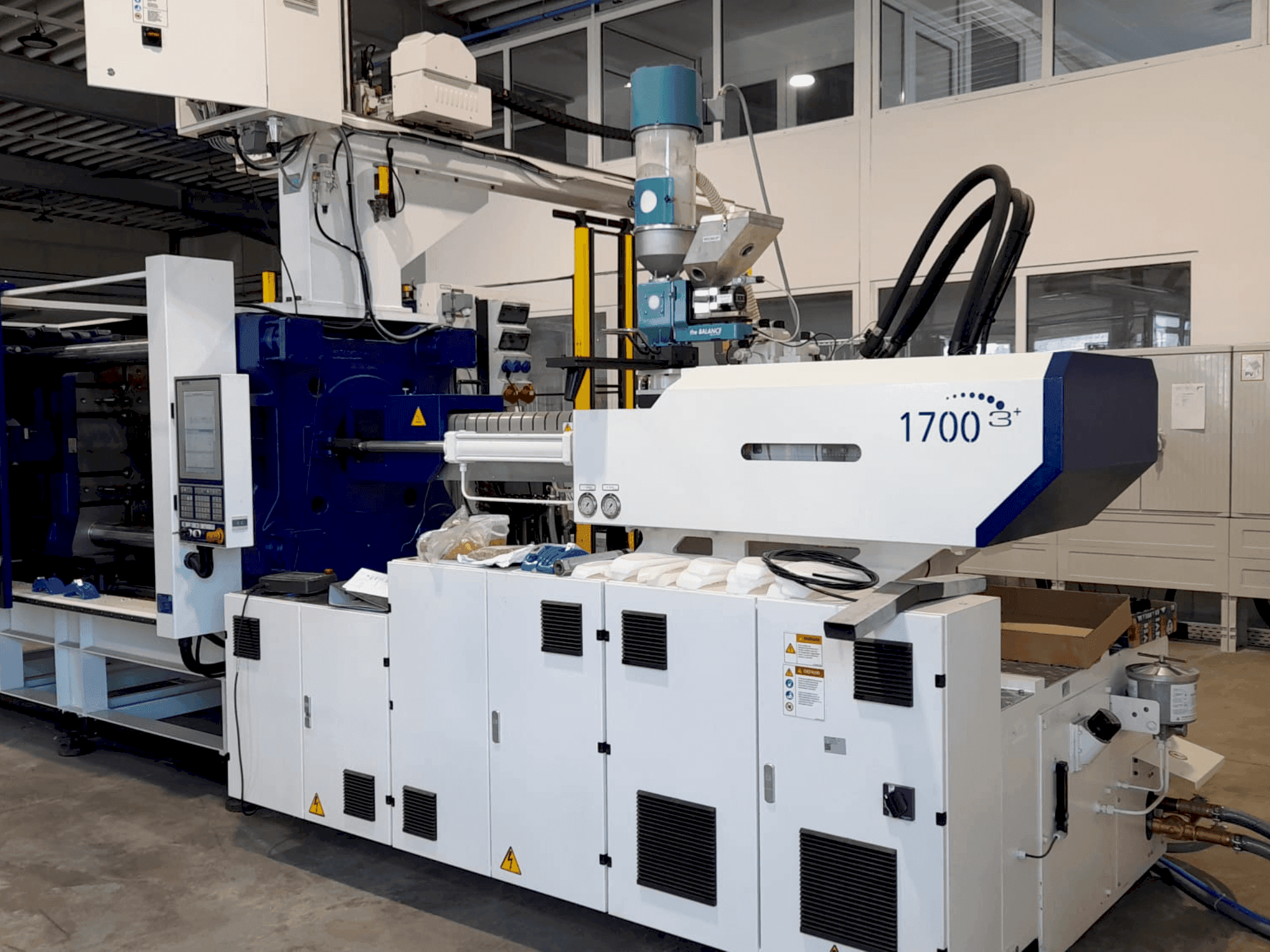

This HAITIAN MA 3500 III Plus Injection moulding machine was manufactured in the year 2021 and offers a high clamping force of 3500 kN and precise control for efficient and reliable injection molding processes. With a screw diameter of 65 mm and a shot weight of up to 1700 grams, it is suitable for a wide range of applications in plastics processing. The machine has advanced features for a fast injection speed of up to 530 mm/s and a closing speed of 300 mm/s, resulting in increased productivity and efficiency. The maximum opening distance of 2450 mm enables the processing of larger workpieces. It is equipped with a 65mm screw and can operate with a opening and has 333 production hours. It comes with a Hilectro V1300ID-CE Robot with 12kg payload capacity. This handling has a EUROMAP 67 interface.
Overview
- brand: HAITIAN
- year: 2021
- MODEL: MA 3500 III Plus
- production hours: 333
- application type: Injection Moulding
- Location: Germany
- machine type: Injection Moulding Machine
- availability: Sold
Technical Information - HAITIAN MA 3500 III Plus
Injection Unit
- Screw diameter: 65 mm
- Shot weight: 1700 gr
- Injection pressure: 2050 bar
Clamping unit
- Clamping force: 3500 kN
- Max open daylight: 2450 mm
Additional equipment
- - Hilectro Roboter V1300ID-CE (EUROMAP 67 Interface) with payload 12kg
Additional Information
- Technical Machine Benefits:
- - Mold opening time: 10. 5 seconds
- - Injection speed: 530 mm/s
- - Closing speed: 300 mm/s
- - Hilectro roboter >> Power Supply : 400 to 480 Vac 3-phase without neutral +/-10% 50/60Hz // EUROMAP 67 Interface // Traverse=2000 mm (maximum 2500mm) // Crosswise=900 mm // Vertical= 1300 mm // 8I/80 available // Standard EUROMAP 18 spacer // With 6m cable interface + EUROMAP 67 connection // Pendant cable:8m // R1=0-90* pneumatic // Maximum payload:12 kg // 2 Vacuum circuit // 2 pressure circuit
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Alessandro Martini
Payment Terms
Payment in advance
Asset Financing
