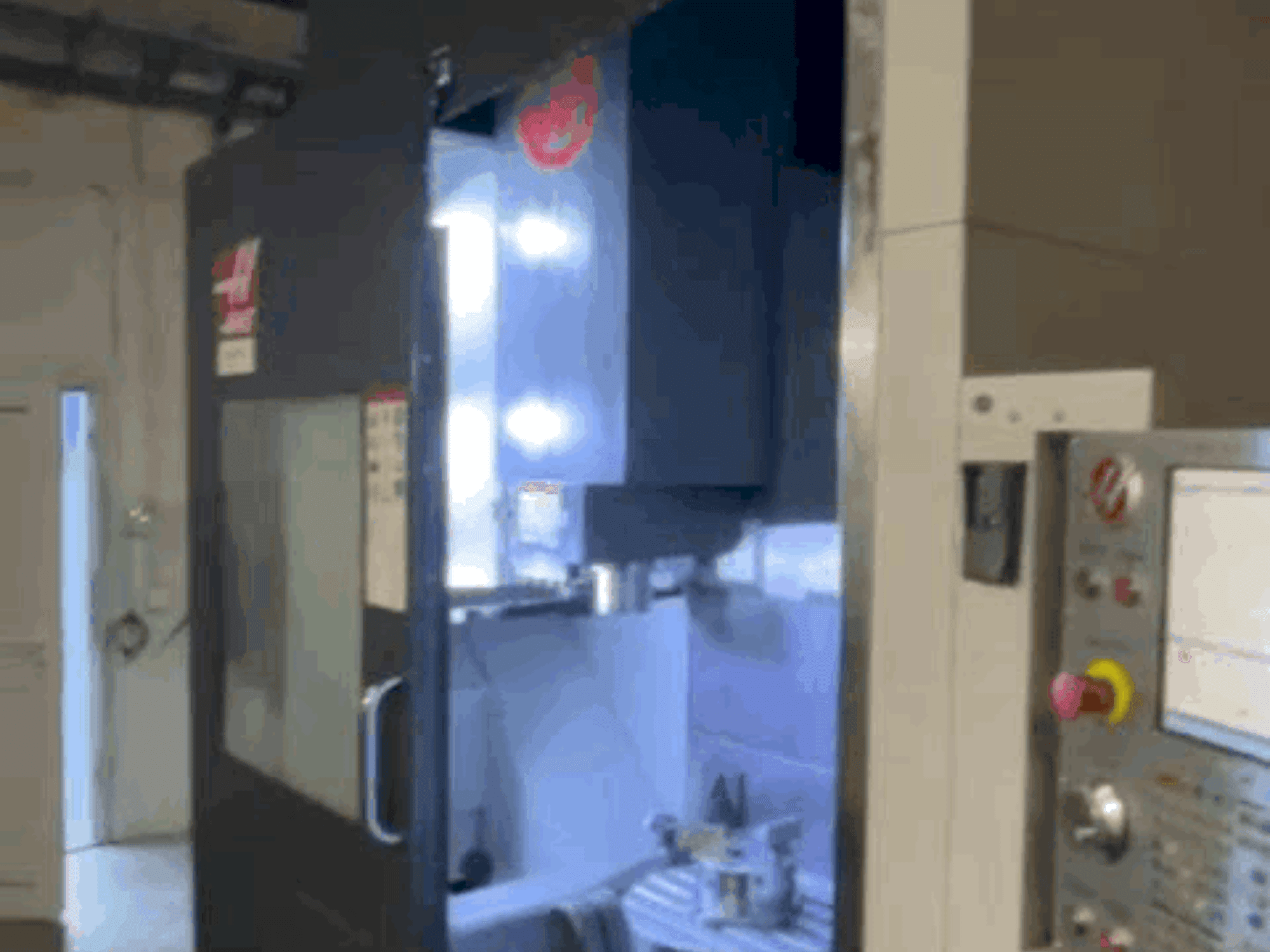

Front view of HAAS UMC-750 machine
Front view of HAAS UMC-750 machine

HAAS - UMC-750SK-MIL-HAA-2019-00001

Rs. 10,164,700
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis HAAS UMC-750 was manufactured in 2019, featuring a robust universal machining center with a 500 mm table diameter and a maximum table load of 300 kg. It includes a high-speed spindle up to 12,000 rpm, ISO 40 taper, and a 40-position tool changer. Ideal for complex geometries and diverse machining tasks. Contact us for more information about this machine.

Overview

  • brand: HAAS
  • year: 2019
  • MODEL: UMC-750
  • application type: Milling
  • Location: Slovakia
  • machine type: Universal Machining Centre
  • control unit brand: HAAS

Technical Information - HAAS UMC-750

General Data

  • Measurements width: 2387 mm
  • Measurements depth: 3978 mm
  • Measurements height: 2565 mm
  • Machine weight: 8200 kg

Control Unit

  • Brand: HAAS

Main drive

  • Spindle speed range: 12000 1/MIN
  • Tool taper: ISO 40
  • Number of axis: 5

Movement

  • X-AXIS Movement: 762 mm
  • Y-AXIS Movement: 508 mm
  • Z-AXIS Movement: 508 mm

Table

  • Table load: 300 kg

Additional Information

Machine Benefits

Technical Machine Benefits

  • B-axis travel: 120° to -35°
  • C-axis travel: 360°
  • Spindle nose to table (max/min): 610 mm / 102 mm
  • Table diameter: 500 mm
  • Tool changer capacity: 40 positions
  • Max rating: 22. 4 kw

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
