HAAS ST20Y

Photo Gallery

HAAS - ST20YEE-TUR-HAA-2014-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

Show in original language

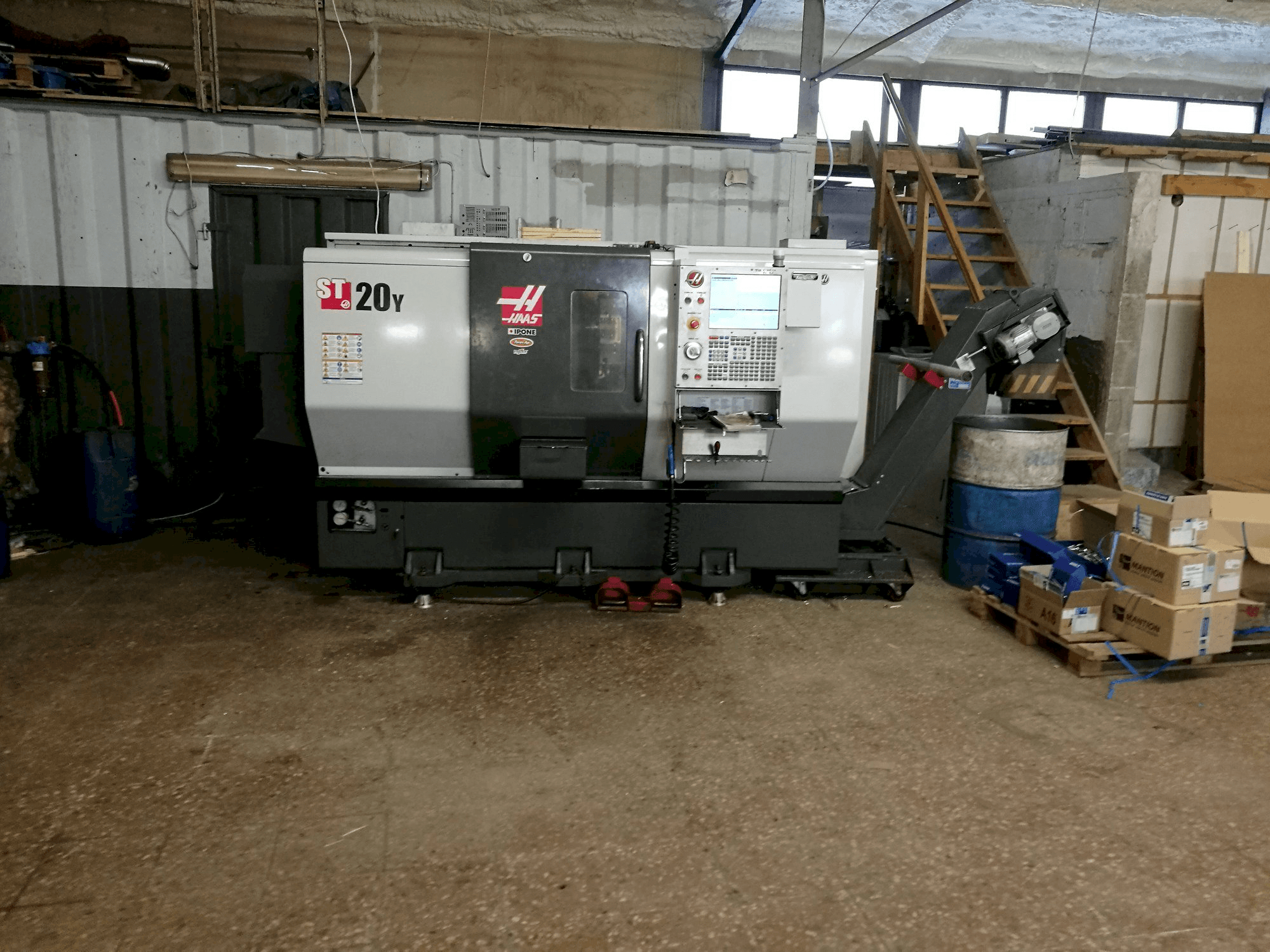

This HAAS ST20Y Lathe from 2014 was made in the United States and has been operative for 6476 hours. Equipped with a HAAS M130 Control unit, this machine can work with a spindle speed up to 4000 rpm. During the past, it has worked with materials such as stainless steel, black steel and aluminum.

Overview

brand: HAAS
year: 2014
MODEL: ST20Y
production hours: 6476
application type: Turning
Location: Estonia
machine type: Turn-Mill Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS ST20Y

General Data

Measurements width: 4191 mm
Measurements depth: 1800 mm
Measurements height: 2600 mm
Machine weight: 6150 kg

Control Unit

Brand: HAAS
Model: M130
CNC main language: English
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 4000 rpm 1/MIN

Movement

X-AXIS Movement: 236 mm
Y-AXIS Movement: 51 mm
Z-AXIS Movement: 533 mm

Workpiece

Workpiece drm: 305 mm
Workpiece x: 533 mm

Turret

Number of turrets: 1

Media

Main electronic connection: 360-480 V / 50-60 Hz
Power consumption: 20 A
Chip conveyor: Yes

Additional Information

Machine history

Material type: Stainless steel, black steel, aluminium

Machine Benefits

Technical Machine Benefits:
- - 12station vdi turret
- - Renishaw measure system atp
- - 750mb expanded memory
- - Active tooling
- - Programmable hydraulic tailstock
- - Part catcher system
- - Intuitive programming system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
