HAAS - ST-10Y EUIT-TUR-HAA-2023-00001

Name: HAAS ST-10Y EU
Brand: HAAS
SKU: IT-TUR-HAA-2023-00001
Price: 8249236 INR
Availability: InStock

Rs. 8,249,236

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS ST-10Y EU For Sale | gindumac.com

Show in original language

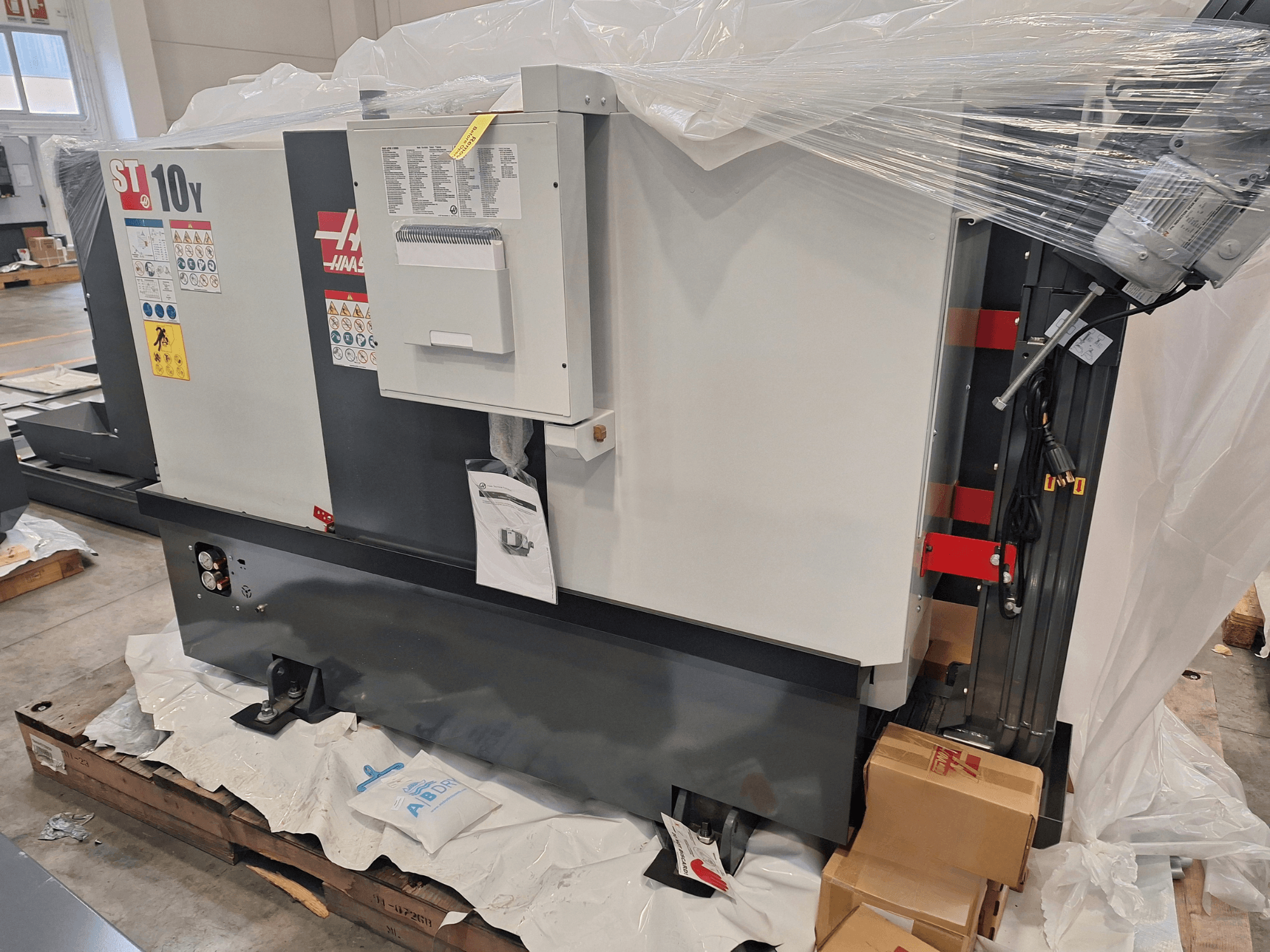

This 3-axis HAAS ST-10Y EU was manufactured in 2023. It features a maximum part swing of 419 mm and a maximum cutting diameter of 279 mm. The machine is equipped with a 12-station turret and offers rapid movements of up to 1200 ipm. If you are looking to get high-quality turning capabilities, consider the HAAS ST-10Y EU horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: HAAS
year: 2023
MODEL: ST-10Y EU
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - HAAS ST-10Y EU

Dimensions

Machine Weight: 3584 kg

Movement

Number of Axes: 3
X-axis Travel: 200 mm
Y-axis Travel: 102 mm
Z-axis Travel: 406 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Spindle Power: 11.2 kW
Spindle Speed: 6000 RPM

Additional Information

Working hours: 0 (Showroom machine)
Chuck size (main spindle): 6.5 in / 165 mm
Max part swing: 16.5 in / 419 mm
Max cutting diameter (with BMT45 turret): 11.0 in / 279 mm
Max cutting length: 16.0 in / 406 mm
Bar capacity: 1.75 in / 44 mm
Rapids (X/Y/Z): 472/472/1200 ipm (12.0/12.0/30.5 m/min)
Max thrust (X/Y/Z): 2400/2300/3700 lbf (10676/10231/16458 N)
Spindle nose (main): A2-5
Main spindle max torque: 75.0 ft-lbf @ 1300 rpm / 102.0 Nm @ 1300 rpm
Draw tube bore: 1.81 in / 46 mm
Spindle bore: 2.31 in / 58.7 mm
C axis max speed: 60 rpm
C axis positioning: ±0.02°
Sub-spindle chuck size: 5.3 in / 135 mm
Sub-spindle spindle nose: A2-5
Sub-spindle max speed: 6000 rpm
Sub-spindle max sync speed: 4800 rpm
Sub-spindle bore: 1.50 in / 38.1 mm
Sub-spindle rapids (B-axis): 10 m/min
Tailstock taper: MT3
Tailstock hydraulic quill travel: 3.8 in / 95 mm
Turret stations: 12
Turret tooling type: BMT45
Live tooling max speed: 6000 rpm
Coolant capacity: 30 gal / 114 L
Air requirements: 4 scfm @ 100 psi (min 80 psi) / 113.0 L/min @ 6.9 bar (min 5.5 bar)
Shipping dimensions (L x W x H): 126.0 x 70.0 x 81.0 in / 321 x 178 x 206 cm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
