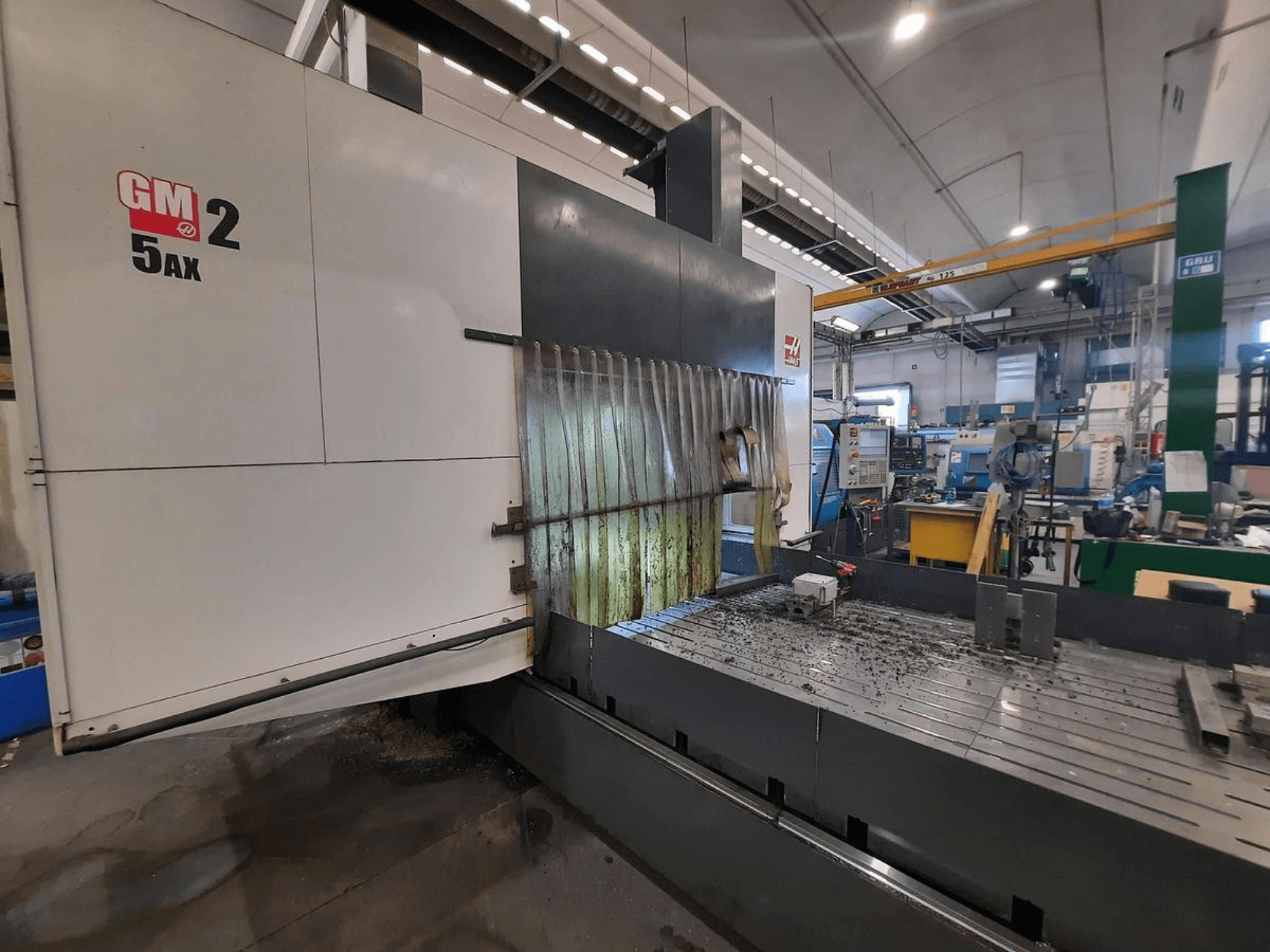

GM 2 5AX CNC machine in a workshop, side view, showing operational area and metal shavings on the bed surface.
GM 2 5AX CNC machine in a workshop, side view, showing operational area and metal shavings on the bed surface.

HAAS - GM-2 AXIT-MIL-HAA-2020-00003

Rs. 8,964,654
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis HAAS GM-2 AX gantry milling machine was manufactured in 2020. It features extensive X, Y, and Z-axis travels of 3,683 mm, 2,223 mm, and 998 mm respectively, and a high spindle speed up to 20,000 rpm. The machine supports a maximum table load of 2,722 kg and includes a 30+1 position tool changer. If you are looking to get high-quality milling capabilities consider the HAAS GM-2 AX machine we have for sale. Contact us for more information.

Overview

  • brand: HAAS
  • year: 2020
  • MODEL: GM-2 AX
  • application type: Milling
  • Location: Italy
  • machine type: Gantry Milling Machine

Technical Information - HAAS GM-2 AX

Dimensions

  • Machine Height: 4089 mm
  • Machine Length: 6127 mm
  • Machine Weight: 10000 kg
  • Table Load: 2722 kg

Movement

  • Number of Axes: 5
  • X-axis Travel: 3683 mm
  • Y-axis Travel: 2223 mm
  • Z-axis Travel: 998 mm

Technical Specification

  • Max. Tool Weight: 5.4 kg
  • Spindle Power: 12 kW
  • Spindle Speed: 20000 RPM

Additional Information

  • B-axis tilt: +120° / -120°

  • C-axis rotation: +245° / -245°

  • Spindle nose to table distance (Min–Max): 127–940 mm

  • Maximum spindle torque: 15.3 Nm @ 7,500 rpm

  • Spindle taper: HSK-A63

  • Maximum B-axis speed: 110°/sec

  • Maximum C-axis speed: 200°/sec

  • Table length: 3,658 mm

  • Table width: 1,829 mm

  • Table thickness: 25 mm

  • Distance between columns: 1,905 mm

  • Maximum cutting speed: 12 m/min

  • Rapid feed (X/Y/Z): 12.0 / 48.0 / 30.0 m/min

  • Maximum axis thrust (X/Y/Z): 20,017 / 7,340 / 8,896 N

  • Tool changer type: SMTC

  • Tool magazine capacity: 30 + 1 positions

  • Maximum tool diameter in magazine: 64 mm

  • Maximum tool diameter without adjacent tools: 89 mm

  • Maximum tool length: 279 mm

  • Coolant tank capacity: 360 liters

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
