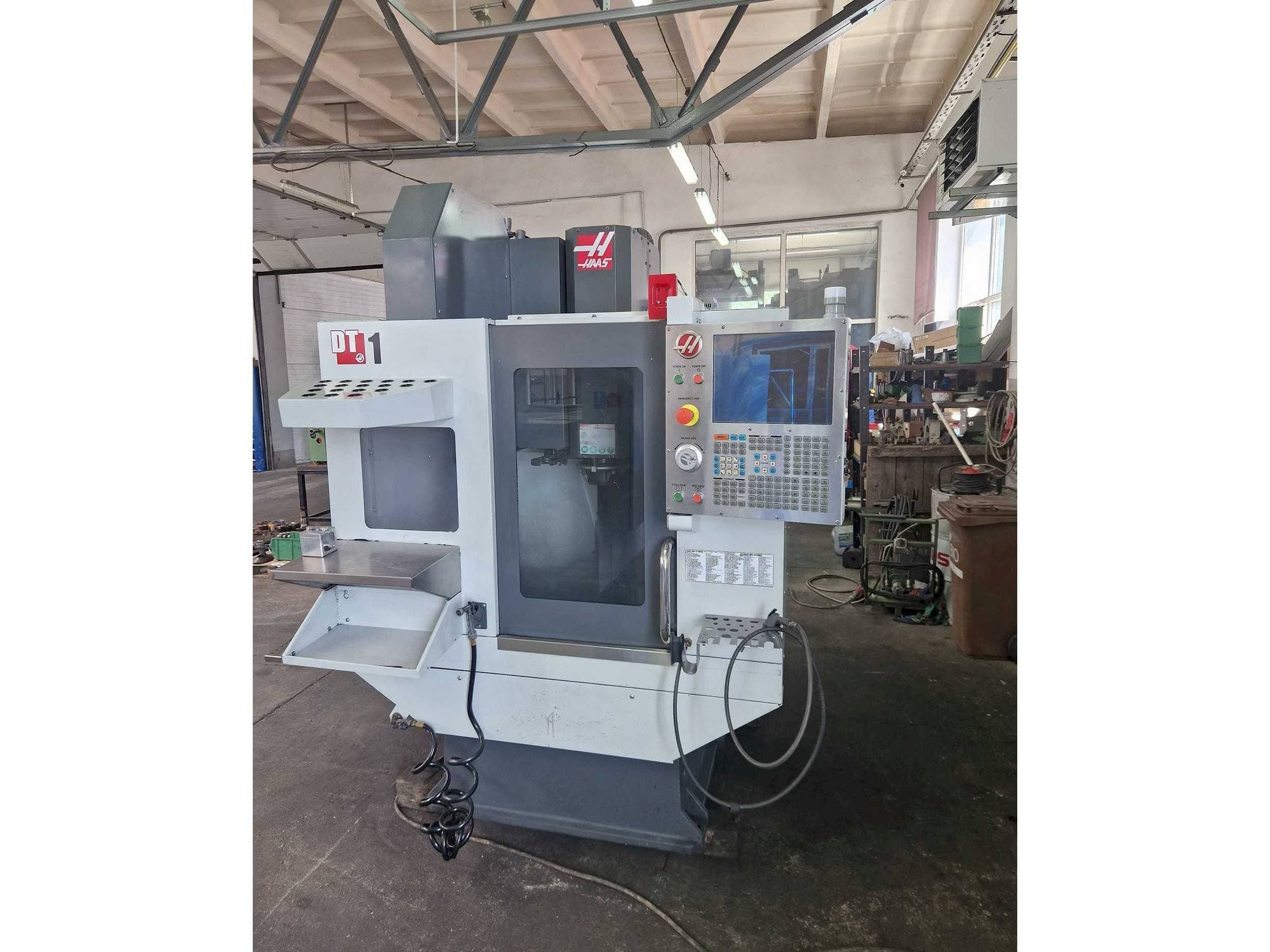

Front view of HAAS DT-1  machine

HAAS DT-1

HAAS - DT-1

2016

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HAAS DT-1 Vertical Machining center was manufactured in the year 2016 and has 27928 production hours. It is equipped with a HAAS NGC control unit. The machine has a spindle speed of 12000 rpm, is in good condition and well maintained.

Overview

  • brand: HAAS
  • year: 2016
  • MODEL: DT-1
  • production hours: 27928
  • application type: Milling
  • Location: Poland
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: HAAS
  • GINDUMAC ID: PL-MIL-HAA-2016-00002

Technical Information

General Data

  • Measurements width: 1702 mm
  • Measurements depth: 3150 mm
  • Measurements height: 2540 mm
  • Machine weight: 1814 kg

Control Unit

  • Brand: HAAS
  • Model: NGC

Main drive

  • Spindle speed range: 12000 1/MIN
  • Spindle motor power: 11.2 kW
  • Tool taper: BT30

Movement

  • X-AXIS Movement: 508 mm
  • Y-AXIS Movement: 406 mm
  • Z-AXIS Movement: 394 mm

Table

  • Outer length: 660 mm
  • Outer width: 381 mm
  • Table load: 113 kg

Tools

  • Slots in storage: 20+1
  • Max tool diameter: 51 mm
  • Max tool length: 178 mm

Additional Information

    Machine Benefits

    • Qualitative Machine Benefits:
      • - The machine is in very good , working condition and ready for tests.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
