Gildemeister TWIN 42

Photo Gallery

Gildemeister - TWIN 42DE-TUR-GIL-2008-00004

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Gildemeister TWIN 42 For Sale | gindumac.com

Show in original language

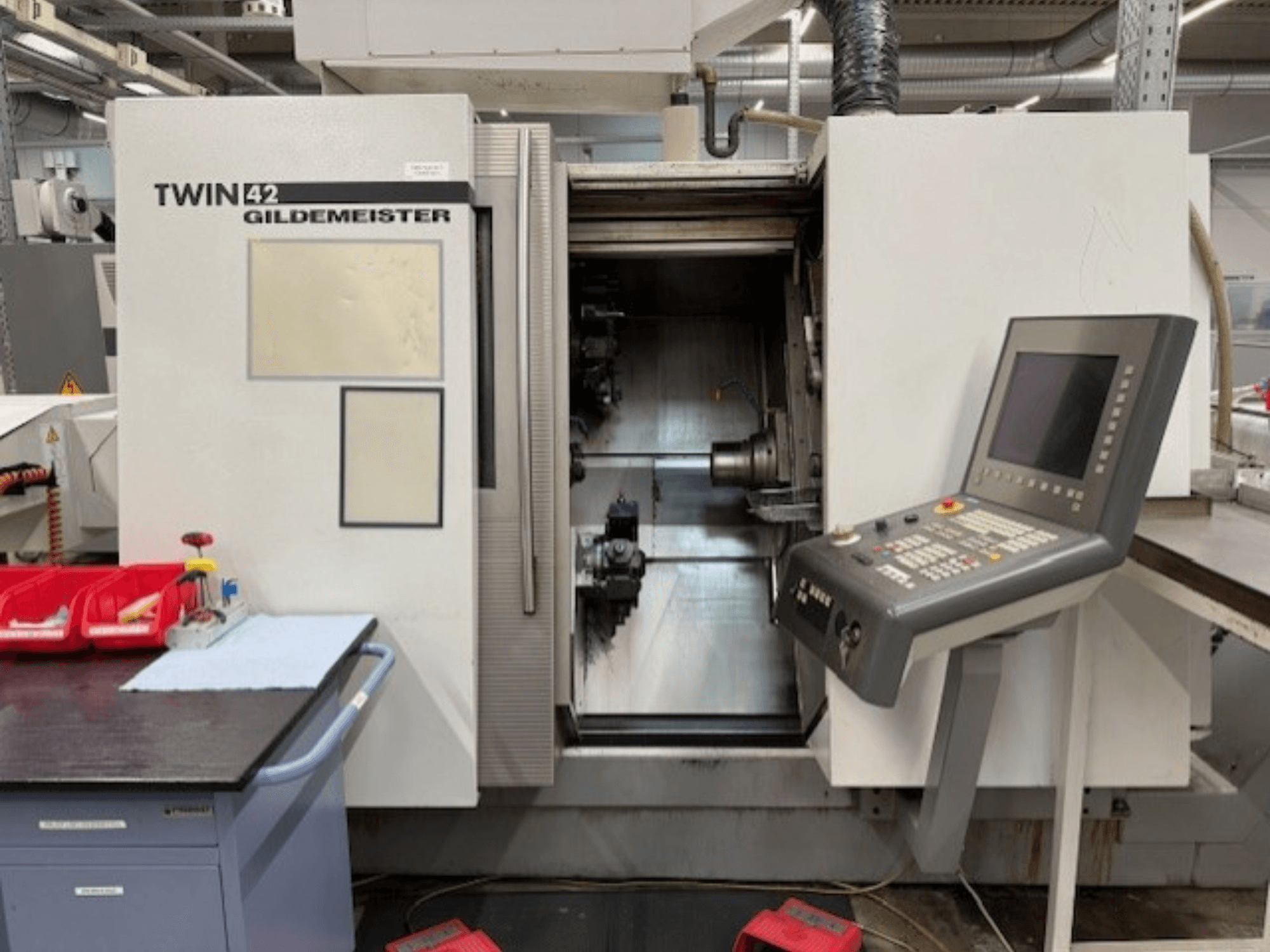

This 7-axis Gildemeister TWIN 42 was manufactured in 2008. It features a CNC control Siemens 840D Powerline, two 12-station star turrets, and live tooling capabilities. The machine has a tailstock stroke of 230 mm and is equipped with a optional chip conveyor. If you are looking to get high-quality turning capabilities, consider the Gildemeister TWIN 42 horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: Gildemeister
year: 2008
MODEL: TWIN 42
production hours: 76595
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - Gildemeister TWIN 42

Control Unit

Control Brand: SIEMENS
Control Model: 840D Powerline

Movement

Number of Axes: 7
X-axis Travel: 220 mm
Z-axis Travel: 345 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Spindle Power: 35 kW
Spindle Speed: 7000 RPM
Tool Stations: 24

Additional Information

CNC Control: Siemens 840D Powerline
C-Axis: 2
Y-Axis: Upper Slide
Cross Slides: 2
Turrets: 2 × 12-Station Star Turrets
Live Tooling: 2
Tailstock Mounted on Counter Spindle Slide
Tailstock Stroke: 230 mm
Tailstock Force: 300 daN
Tailstock Center: MT3
Overload Clutch for X- and Z-Axes
Chip Conveyor: Bürener, optional not included
Tool Monitoring System: Artis CTM
Workpiece Diameter: Ø 6–65 mm
Maximum Workpiece Length: approx. 300 mm
Maximum Workpiece Weight: 3.5 kg
Bar Feeder Interface, optional not included
Bar Feeder: IRCO SiMag 42

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
