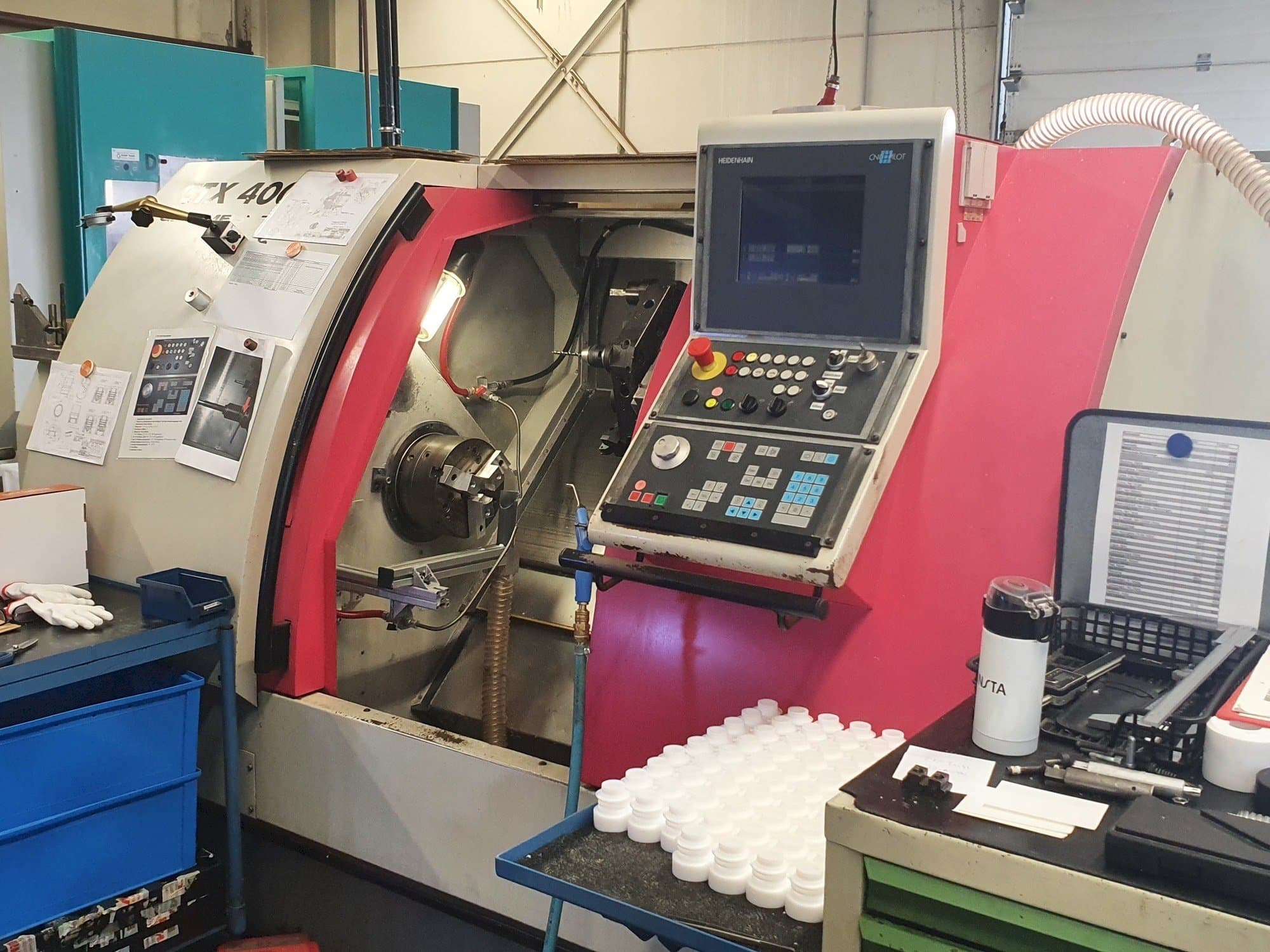

Front view of Gildemeister CTX 400 S2  machine

Gildemeister - CTX 400 S2DE-TUR-GIL-1998-00001

Rs. 2,014,000
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Gildemeister CTX 400 S2 Lathe was manufactured in the year 1998 in Germany and has 65655 production hours. It is equipped with a HEIDENHAIN CNC PILOT 3190/4290 control unit. The machine has a spindle speed of 25-5000 rpm.

Overview

  • brand: Gildemeister
  • year: 1998
  • MODEL: CTX 400 S2
  • production hours: 65655
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine
  • availability: Immediately
  • control unit brand: HEIDENHAIN

Technical Information - Gildemeister CTX 400 S2

General Data

  • Measurements width: 4527 mm
  • Measurements depth: 1940 mm
  • Measurements height: 1730 mm
  • Machine weight: 5140 kg

Control Unit

  • Model: CNC PILOT 3190/4290
  • Brand: HEIDENHAIN

Main drive

  • Spindle speed range: 25-5000 1/MIN

Media

  • Chip conveyor: Yes

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Turn length: 635 mm
      • - The tool turret is vdi 30
      • - Used exclusively for the machining of plastics in 1-shift operation,
      • - Spindle was replaced by the manufacturer in 2018
      • - Around 13,500 operating hours of the renewed spindle
      • - Hollow clamping cylinder was replaced with a new one in october 2021

    Extra information

    • - MACHINE STILL UNDER POWER

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
