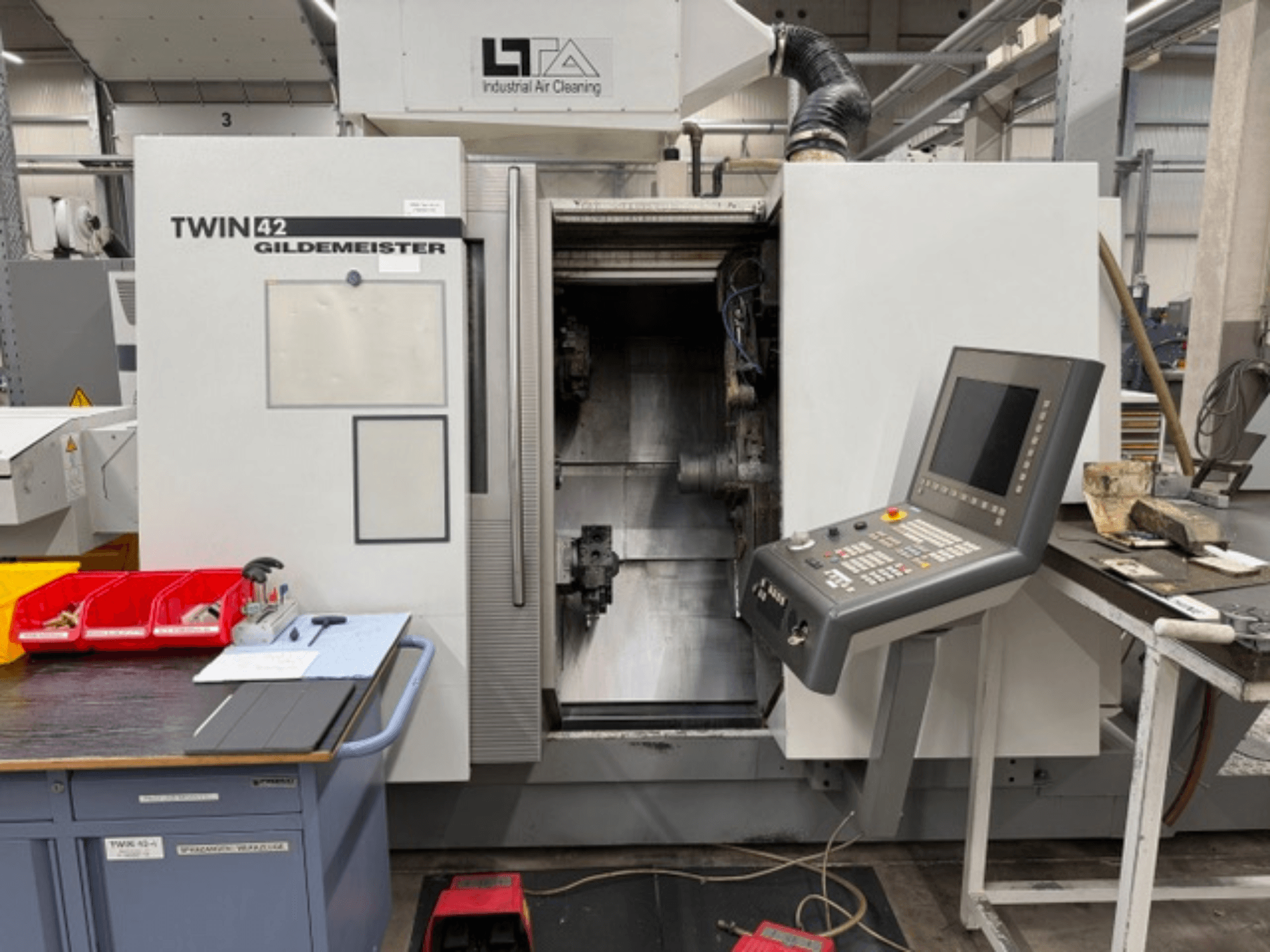

This 7-axis Gildemeister TWIN 42 was manufactured in 2004. It features a Siemens 840D Powerline CNC control, two 12-station star turrets, and live tooling capabilities. The tailstock has a stroke of 230 mm and a force of 300 daN, making it suitable for workpieces with a diameter of Ø 6–65 mm and a maximum length of approximately 300 mm. If you are looking to get high-quality turning capabilities, consider the Gildemeister TWIN 42 machine we have for sale. Contact us for further details.
Overview
- brand: Gildemeister
- year: 2004
- MODEL: TWIN 42
- production hours: 8375
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
Additional Information
CNC Control: Siemens 840D Powerline
C-Axis: 2
Y-Axis: Upper Slide
Cross Slides: 2
Turrets: 2 × 12-Station Star Turrets
Live Tooling: 2
Tailstock Mounted on Counter Spindle Slide
Tailstock Stroke: 230 mm
Tailstock Force: 300 daN
Tailstock Center: MT3
Overload Clutch for X- and Z-Axes
Chip Conveyor: Bürener, optional
Tool Monitoring System: Artis CTM
Workpiece Diameter: Ø 6–65 mm
Maximum Workpiece Length: approx. 300 mm
Maximum Workpiece Weight: 3.5 kg
Bar Feeder Interface
Bar Feeder: IRCO SiMag 42, optional
3 other machines available with following defects:
Machine 1: Hydraulic line defective on turret 1 or 2
Machine 2: DINA module removed, pressure clamp (reports that the collet is not closed)
Machine 3: Main spindle defective with bearing damage, HS clamp defective, LT module missing, DINA module missing
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
