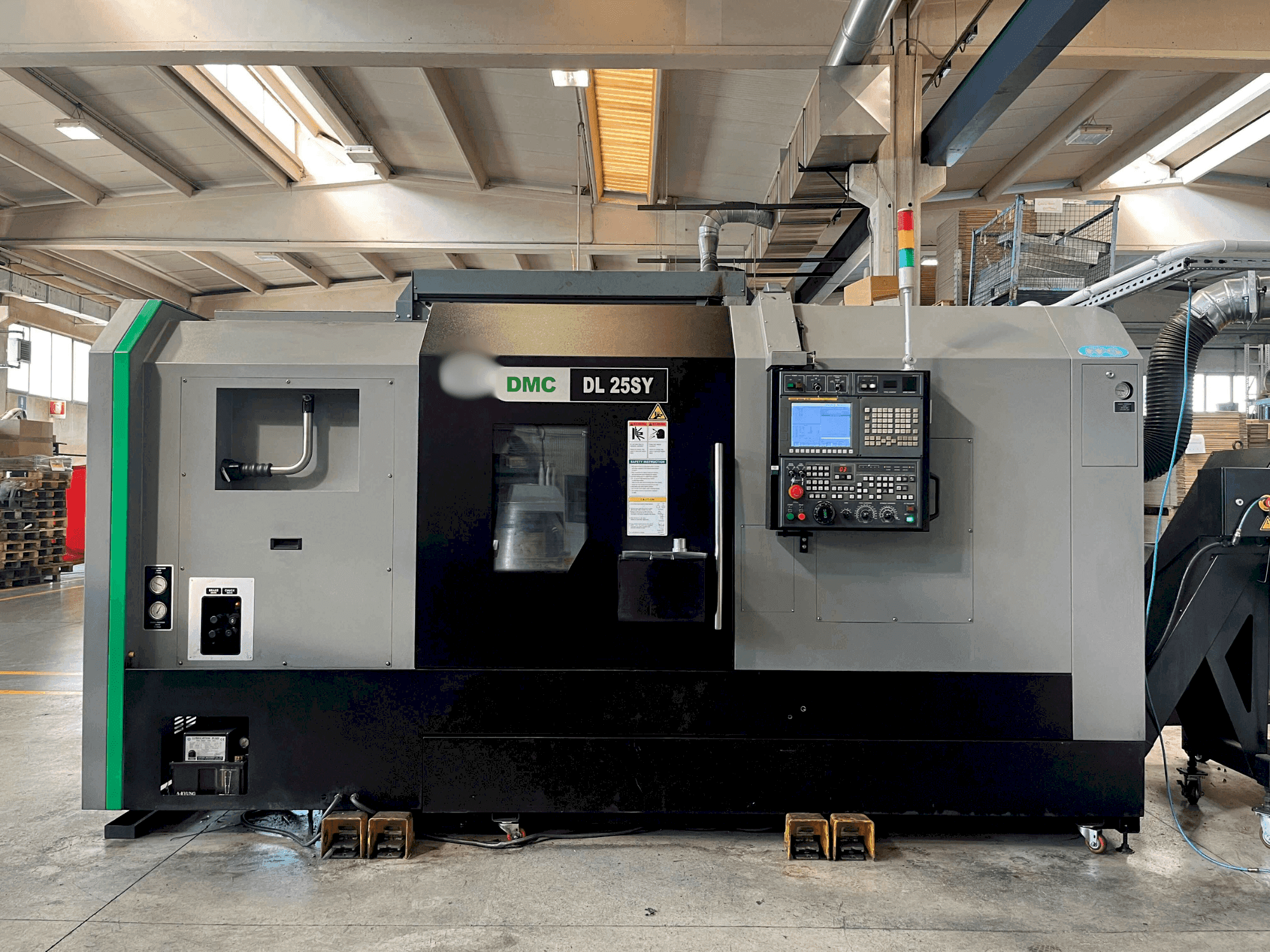

Front view of FFG DMC DL 25SY  machine

FFG - DMC DL 25SYIT-TUR-FFG-2019-00001

Rs. 9,359,500
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis FFG DMC DL 25SY horizontal turning machine was manufactured in 2019. It features a FANUC 0i-TF control, a swing diameter of 710 mm, and a maximum turning diameter of 400 mm. The main spindle supports a 10" chuck, complemented by a sub-spindle with an 8" chuck. It includes a 12-position servo-driven turret and a chip conveyor. If you are looking to get high-quality turning capabilities, consider the FFG DMC DL 25SY machine we have for sale. Contact us for more information.

Overview

  • brand: FFG
  • year: 2019
  • MODEL: DMC DL 25SY
  • application type: Turning
  • Location: Italy
  • machine type: Horizontal Turning Machine
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - FFG DMC DL 25SY

Control Unit

  • Brand: FANUC
  • Model: Series 0i TF

Main drive

  • Spindle speed range: 3500 1/MIN
  • Spindle motor power: 18/22 kW
  • Tool taper: ASA A2-8
  • Number of axis: 4

Media

  • Chip conveyor: Yes

    Additional equipment

    • - Tool presetter
    • - Auto shutdown
    • - High pressure coolant pump 50 bar
    • - Part catcher with parts discharge belt
    • - Sub-spindle part ejector
    • - Bar feeder interface
    • - Electric automatic door
    • - Robot interface

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Main spindle chuck: 10"
        • - Sub-spindle: speed - 4000 rpm, asa a2-6, chuck - 8", power - 11/15 kw
        • - Max torque: 754 nm
        • - Max turning diameter: 400 mm
        • - Max turning length: 1000 mm
        • - Type: 12-position servo-driven, motorized turret bmt55

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
