- ➤ Used Feeler FVP1300A For Sale | gindumac.com

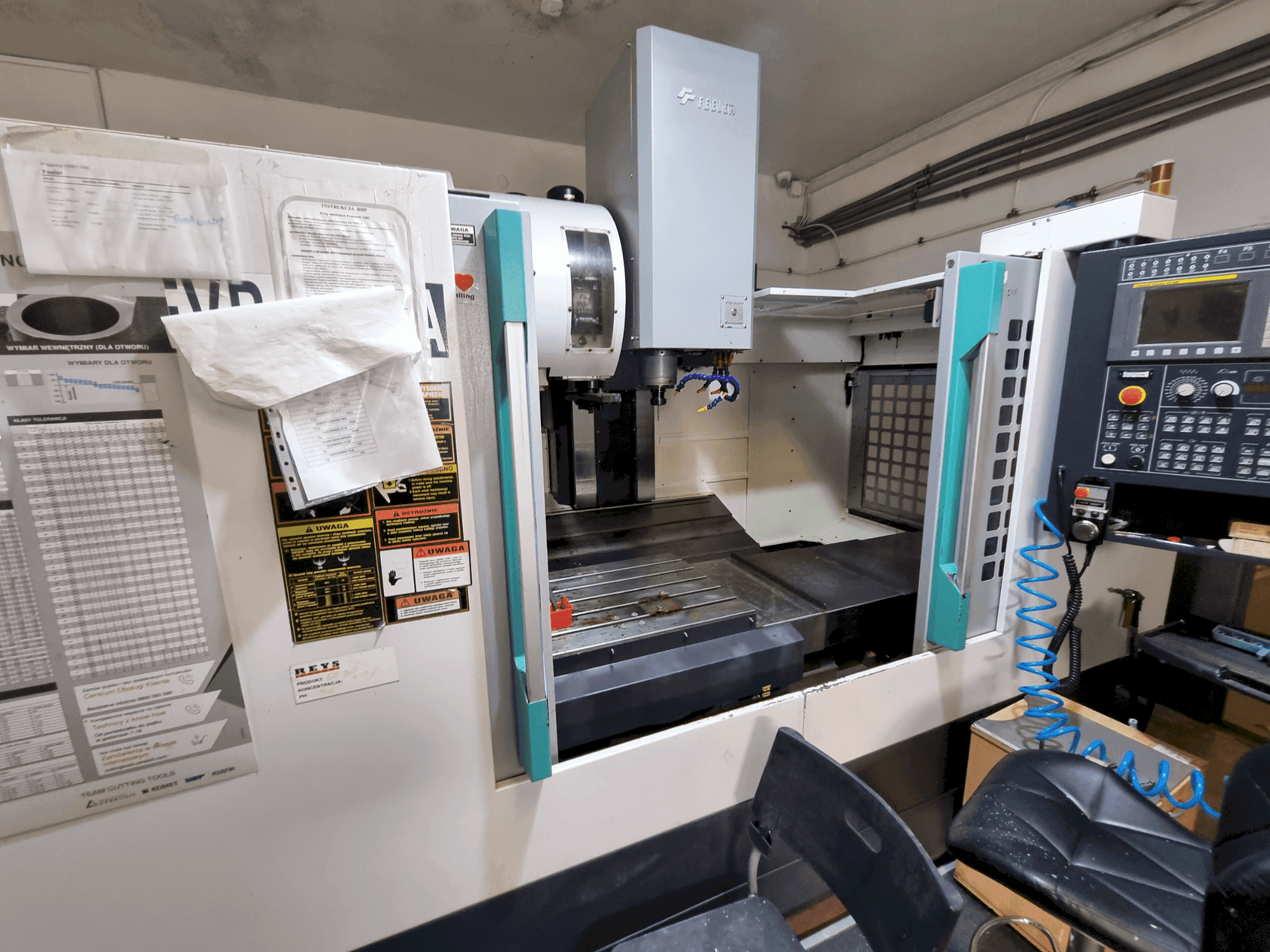

This 3-axis Feeler FVP1300A was manufactured in 2017. It features a large 1420 × 600 mm table, capable of handling loads up to 1500 kg. The spindle reaches speeds up to 10,000 rpm, powered by a robust 15 kW motor, with a peak of 18.5 kW. The tool magazine holds 24 tools. If you are looking to get high quality milling capabilities consider the Feeler FVP1300A machine we have for sale. Contact us for more information.
Overview
- brand: Feeler
- year: 2017
- MODEL: FVP1300A
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - Feeler FVP1300A
Control Unit
- Control Brand: FANUC
- Control Model: 0i-MD
Dimensions
- Table Load: 1500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1300 mm
- Y-axis Travel: 610 mm
- Z-axis Travel: 560 mm
Technical Specification
- Spindle Speed: 10000 RPM
Additional Information
Table
Size: 1420 × 600 mm
Height from floor: 125–685 mm
Distance from table center to column surface: 640 mm
Spindle
Spindle diameter: 70 mm
Torque: 118 Nm
Tool magazine
Type: Drum
Capacity: 24 tools
Additional Information:
The machine was used only to machine plastic (POM-C).
It is prepared for a 4th axis.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
