➤ Used Feeler FTC 20 For Sale | gindumac.com

Show in original language

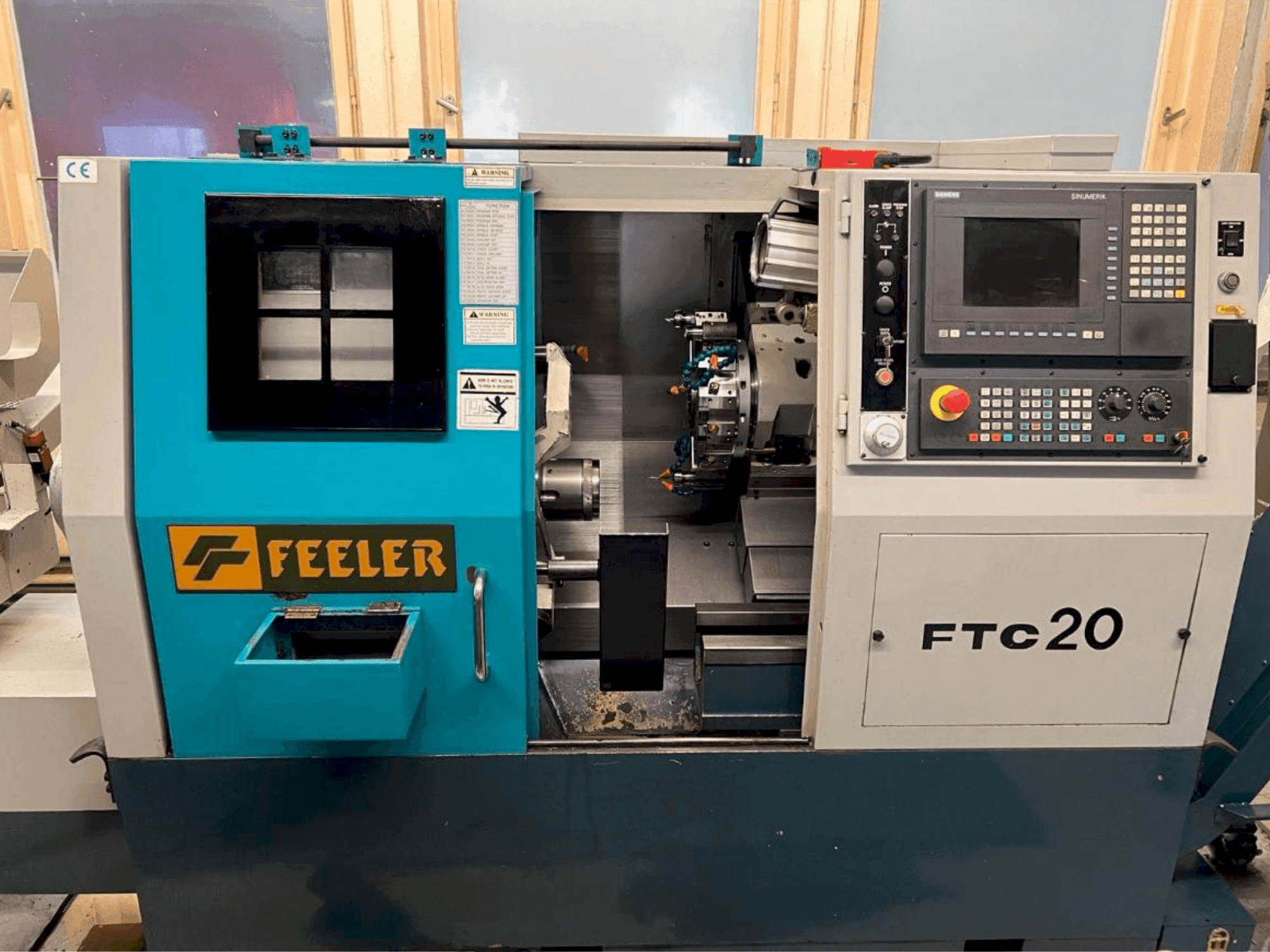

This Feeler FTC 20 was manufactured in 1999. It features a swing over bed of 560 mm and a maximum turning diameter of 350 mm. The spindle operates at speeds up to 3500 rpm, supported by a robust 15 kW motor. Ideal for precision turning with its 8 tool stations and manual tailstock. Consider the opportunity to buy this Feeler FTC 20 horizontal turning machine. Contact us for more information about this machine.

Overview

brand: Feeler
year: 1999
MODEL: FTC 20
application type: Turning
Location: Romania
machine type: Horizontal Turning Machine
availability: Immediately

Technical Information - Feeler FTC 20

General Data

Measurements width: 1535 mm
Measurements depth: 2630 mm
Measurements height: 1800 mm
Machine weight: 3550 kgs

Main drive

Spindle speed range: 35–3500 1/MIN
Spindle motor power: 11 / 15 kW

Movement

X-AXIS Movement: 175 + 25 mm
X-AXIS Rapid traverse: 24000 mm/min
Z-AXIS Movement: 380 mm
Z-AXIS Rapid traverse: 24000 mm/min

Workpiece

Workpiece drm over bed: 560 mm
Workpiece drm over support: 350 mm

Additional equipment

- Coolant tank capacity: 100 L

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck diameter: 210 mm
- - Bar capacity: Ø52 mm
- - Maximum turning length: 380 mm
- - Maximum turning diameter: Ø350 mm
- - Spindle nose: a2-6
- - Hole through spindle: 62 mm
- - Spindle bore taper: 1:20

Extra information

- Turret Number of tool stations: 8 sets Tool size (square): 25 mm Inside diameter of boring bar holder: Ø40 mm Turret indexing time: 0.13 sec Tail Stock Tailstock travel type: Manual Tailstock travel: 300 mm Quill travel type: Hydraulic Quill travel: 80 mm Quill diameter: 65 mm Quill taper: MT #4

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
