FANUC - Roboshot alpha-i30BCZ-INJ-FAN-2023-00001

Name: FANUC Roboshot alpha-i30B
Brand: FANUC
SKU: CZ-INJ-FAN-2023-00001
Price: 4537650 INR
Availability: InStock

Rs. 4,537,650

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used FANUC Roboshot alpha-i30B For Sale | gindumac.com

Show in original language

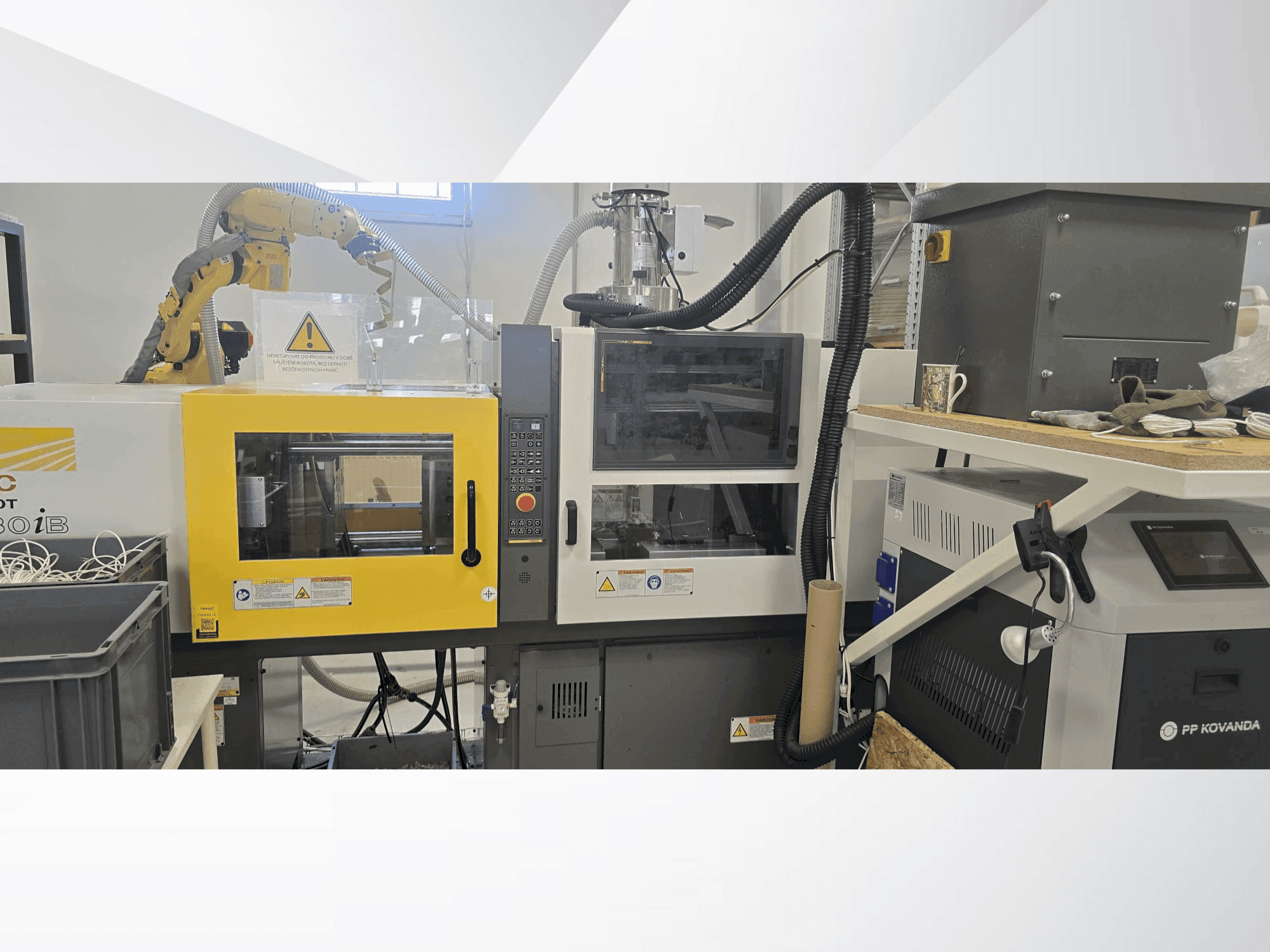

This FANUC Roboshot alpha-i30B was manufactured in 2023. It features a clamping force of 300 KN, a screw diameter of 22 mm, and a maximum injection speed of 600 mm/s. Ideal for precision in electrical injection moulding, it offers a compact platen size of 440x420 mm and efficient energy consumption. If you are looking to get high-quality moulding capabilities, consider the FANUC Roboshot alpha-i30B machine we have for sale. Contact us for more information.

Overview

brand: FANUC
year: 2023
MODEL: Roboshot alpha-i30B
application type: Injection Moulding
Location: Czech Republic
machine type: Electrical Injection Moulding Machine
Available from: 17/11/2025
control unit brand: FANUC

Technical Information - FANUC Roboshot alpha-i30B

General Data

Machine weight: 2000 KG

Control Unit

Brand: FANUC

Injection Unit

Screw diameter: 22 mm

Clamping unit

Clamping force: 300 kn
Opening stroke: 230 mm
Distance between bars: 310 × 290 mm
Size of mold platens: 440 x 420 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

The machine has an estimated 100000 cycles and was only used for prototype production of tpe.

Technical Machine Benefits

Max. Injection volume: 29 cm³
Injection stroke: 75 mm
Max. Injection speed: 600 mm/s
Max. Injection rate: 228 cm³/s
Number of heater zones (barrel): 3
Number of pyrometers (nozzle): 1
Total heater wattage: 3. 8 kw

Extra Information

Machine still under power / Fl net option for Fanuc Robot/ Ethernet IP option for Fanuc Robot/ Fanuc Robot control integration into Roboshot/ SMART absorption molecular drying unit_drying efficiency up to 60 (l)/ Hot air drying silo for press_volume 6 (l)/ Material suction with internal vacuum source_volume 1 (l)/ Water cooling mobile device - air-cooled with heating element (cooling power 5kW)/ 2 WATER FLOW MANIFOLD FSMS 401 M

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
