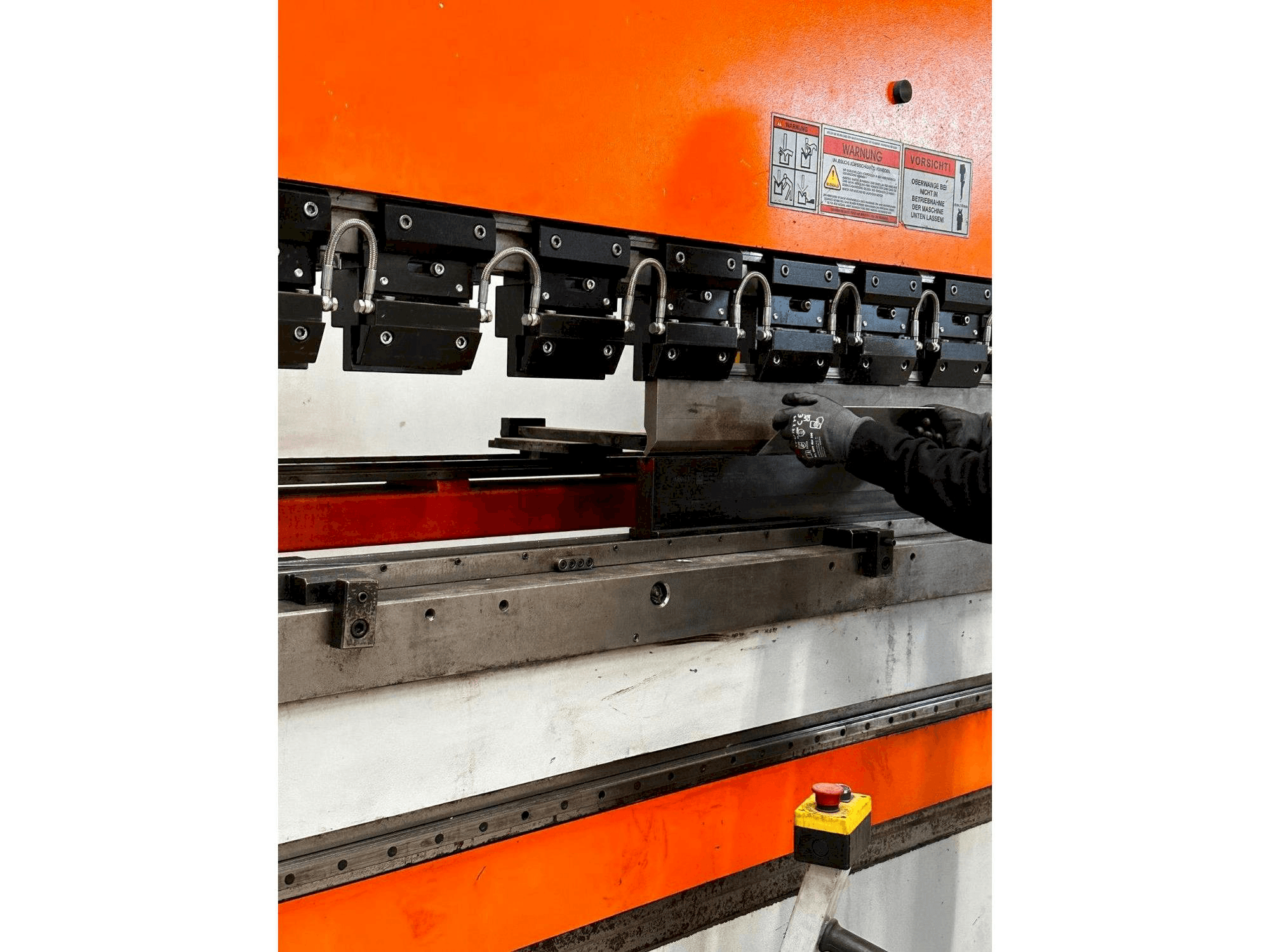

Left side view of ERMAKSAN SPEED-BEND PRO 51000 X 400  machine

ERMAKSAN SPEED-BEND PRO 51000 X 400

ERMAKSAN - SPEED-BEND PRO 51000 X 400

2017

Rs. 12,495,250

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This ERMAKSAN SPEED-BEND PRO 51000 X 400 Bending machine was manufactured in the year 2017 in Turkiye. It has 7 axis. The machine has a pressing force of 4000 kN.

Overview

  • brand: ERMAKSAN
  • year: 2017
  • MODEL: SPEED-BEND PRO 51000 X 400
  • application type: Bending
  • Location: Germany
  • machine type: Bending machines
  • availability: Immediately
  • GINDUMAC ID: DE-BEN-ERM-2017-00001

Technical Information

General Data

  • Measurements width: 7000 mm
  • Measurements depth: 3000 mm
  • Measurements height: 4000 mm
  • Machine weight: 35000 kg

Main drive

  • Pressing force: 4000 kN
  • Stroke: 375 mm
  • Number of axis: 7

Movement

  • X-AXIS Movement: 800 mm

Table

  • Height adjustment: 900 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Column projection: 510 mm
      • - Crowning: controlled
      • - Rear safety system: fisseler/m2000 sick
      • - Front safety system: akas laser
      • - Safety guard: lateral with switch
      • - Foot switch: double pedal
      • - Hydraulics: hörbiger
      • - Y1/y2 axes: synchronized (+/- 0. 01 mm)
      • - Press pressure: automatic adjustment
      • - Upper tool punch: 6. 100/135/85/r0,8
    • Qualitative Machine Benefits:
      • - Die block: 200x200 v - 60-80-100-140 mm
      • - Cooling: oil cooler
      • - Adapter rail for 60 mm die: l=5000 mm
      • - Hydraulic clamping: promecan type
      • - Support arms: 4 pieces on linear guide
      • - Backgauge: 4-axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
