This 3-axis Enshu EV450 was manufactured in 2001. It features an X-axis travel of 560 mm, Y-axis travel of 450 mm, and Z-axis travel of 460 mm. The machine is equipped with tooling for keyway machining and has a spindle speed of 10,000 rpm. If you are looking to get high-quality machining capabilities, consider the Enshu EV450 vertical machining center we have for sale. Contact us for further details.
Overview
- brand: Enshu
- year: 2001
- MODEL: EV450
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand:
Technical Information - Enshu EV450
Movement
- Number of Axes: 3
- X-axis Travel: 560 mm
- Y-axis Travel: 450 mm
- Z-axis Travel: 450 mm
Technical Specification
- Number of Tools: 20
- Spindle Power: 7.5 kW
- Spindle Speed: 10000 RPM
- Taper Size: BT 40
Additional Information
CNC control: Yasnac J100M
Special configuration: Equipped with tooling for keyway machining
Rapid traverse (X/Y/Z): 40,000 / 40,000 / 40,000 mm/min
Spindle motor power: AC 7.5 kW (10 min), AC 5.5 kW continuous
Pallet changer: Yes
Pallet size: 400 × 500 mm
Tool magazine capacity: 20 positions
Measuring system: Renishaw probe (2018)
Important maintenance:
Tool magazine gearbox serviced/repaired (2021)
Z-axis replaced (2019)
Y-axis replaced (2019)
Ballscrews overhauled (2019)
Telescopic covers replaced (2019)
Spindle line repaired (2019)
Spindle taper overhauled (2019)
Additional equipment

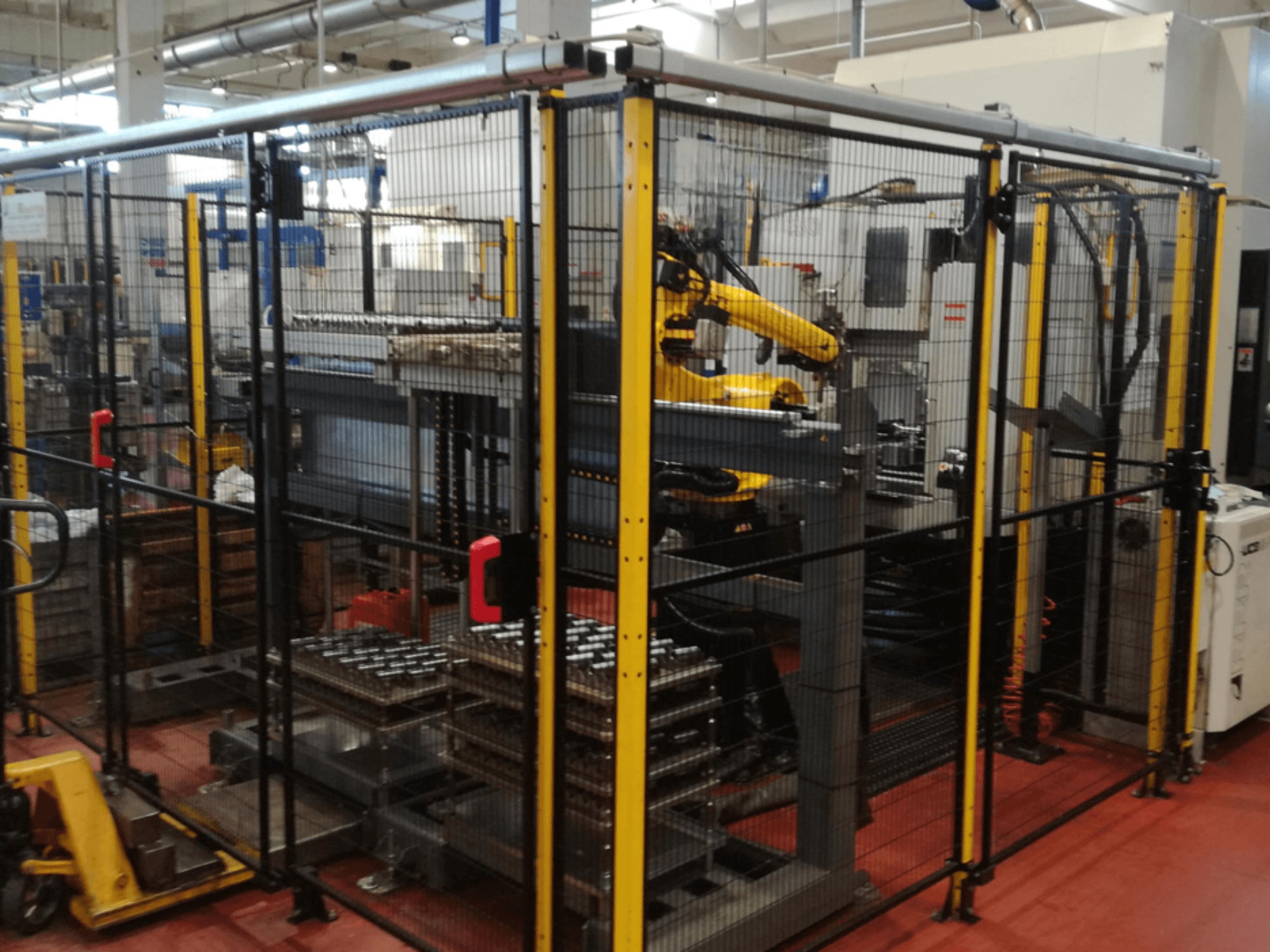

RRRobotica Atom 20 S automation cell (2015), fully functional and certified
Pallet storage system available with the robot cell
Note: Robot/work cell is not included in the machine sale price; available only via separate quotation/proposal
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
