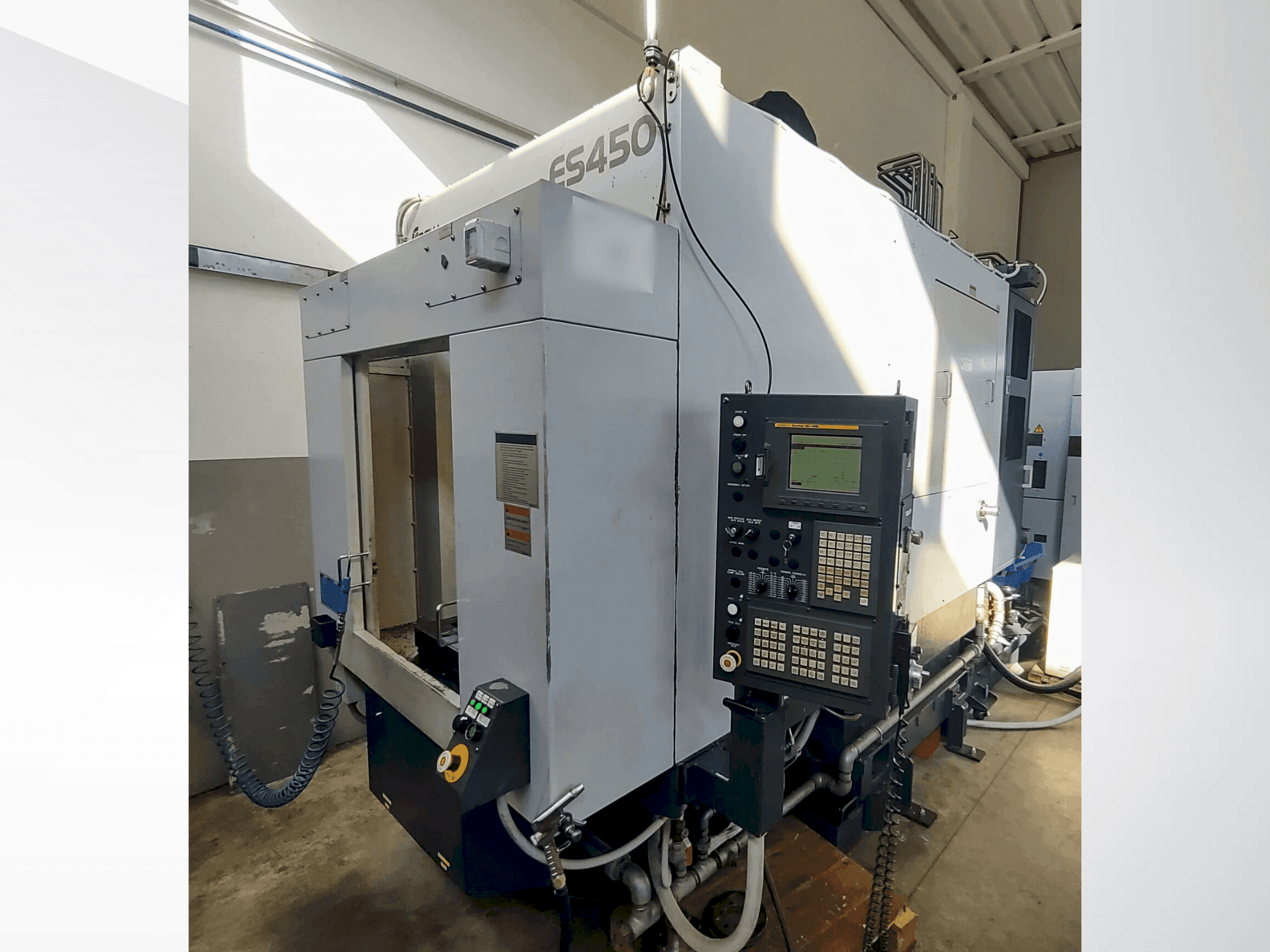

Front view of Enshu ES450  machine

Enshu - ES450IT-MIL-ENS-2004-00001

Rs. 3,941,050
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Enshu ES450 was manufactured in 2004. It features a spindle speed of up to 12,000 min⁻¹, a tool storage capacity of 20, and a rapid traverse feed rate of 60,000 mm/min. The machine accommodates a maximum workpiece weight of 800 kg and offers a cutting feed rate of up to 15,000 mm/min. Consider the opportunity to buy this Enshu ES450 vertical machining centre. Contact us for more information.

Overview

  • brand: Enshu
  • year: 2004
  • MODEL: ES450
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - Enshu ES450

General Data

  • Measurements width: 3390 MM
  • Measurements depth: 1580 MM
  • Measurements height: 3138 MM
  • Machine weight: 7700 KG

Control Unit

  • Brand: FANUC
  • Model: 18i-MB

Main drive

  • Spindle speed range: 40 - 12000 1/MIN
  • Spindle motor power: AC 15 kW / 11 kW / 7.5 kW

Movement

  • X-AXIS Movement: 650 MM
  • Y-AXIS Movement: 450 MM
  • Z-AXIS Movement: 460 MM

Table

  • Outer length: 900 mm
  • Outer width: 450 mm
  • Table load: 800 kg

Tools

  • Slots in storage: 20 tools
  • Max weight: 8 kg
  • Max tool diameter: 90 mm (160 mm without adjacent tool)
  • Max tool length: 250 mm

    Additional equipment

    • - Pallet System (Pallet change method: Rotary type, Pallet change time: 5 sec)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Distance from table top to spindle center: 200–660 mm
        • - Table configuration: 12 mm grooves with 16-m12 threads
        • - Tapered bore: 7/24 taper no. 40
        • - Spindle bearing inner diameter: 65 mm
        • - Rapid traverse feed rate: 60000 mm/min
        • - Cutting feed rate: 1 – 15000 mm/min
        • - Tool shank: mas bt40
        • - Pull stud: mas p40t-p
        • - Tool selection method: nearest absolute address
        • - Tool change time (tool to tool): 2. 11 sec
      • Qualitative Machine Benefits:
        • - Tool change time (cutting to cutting): 3. 0 sec
        • - Feed motors (x/y/z): 3. 8 kw (y: 2 motors)
        • - Hydraulic pump motor: 1. 5 kw
        • - Lubricant pump motor: 17 w
        • - Magazine motor: 0. 9 kw
        • - Required electric power: 35 kva
        • - Compressed air consumption: 300 l/min (0. 4–0. 8 mpa)
        • - Table height from floor: 850 mm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
