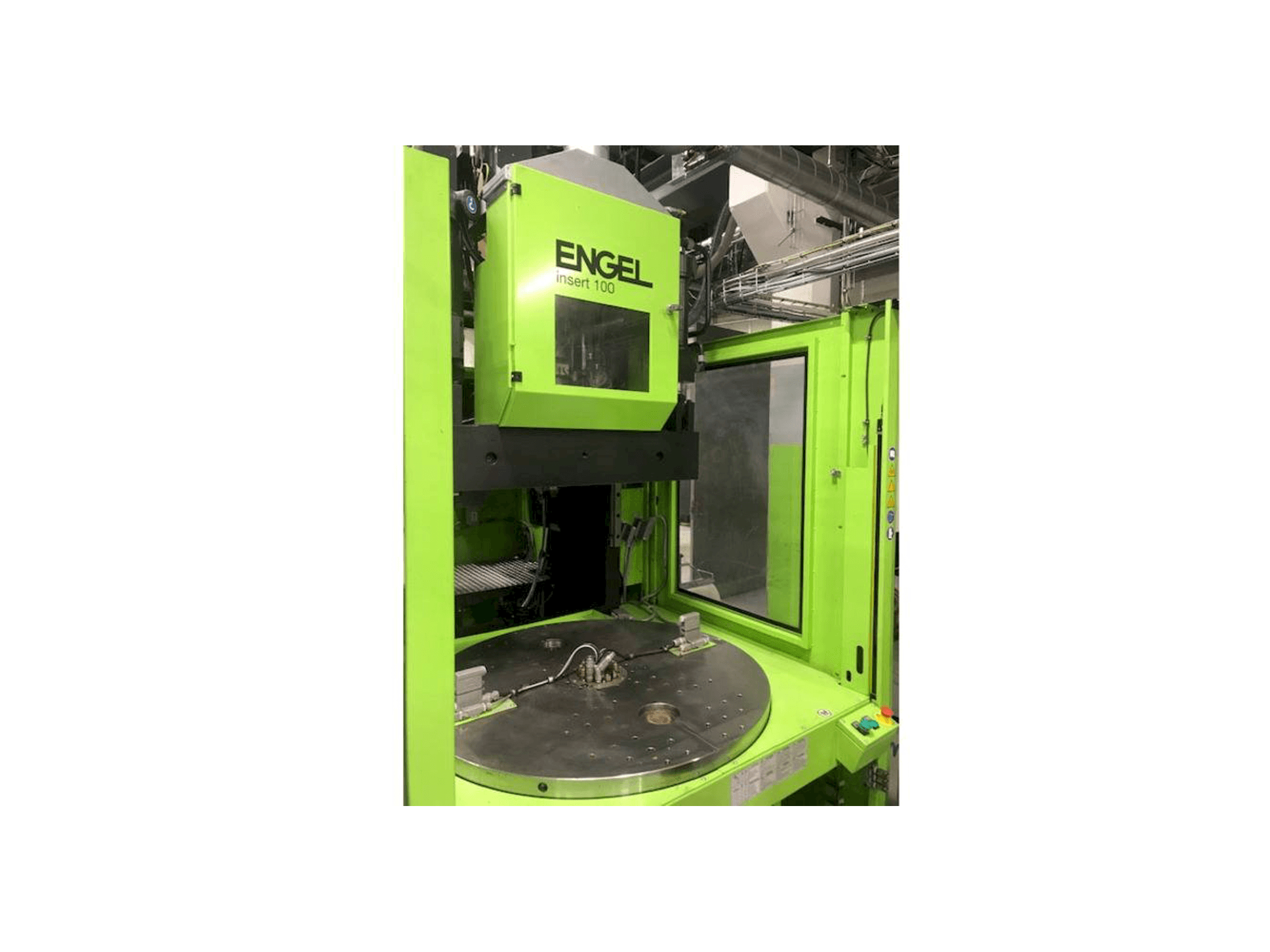

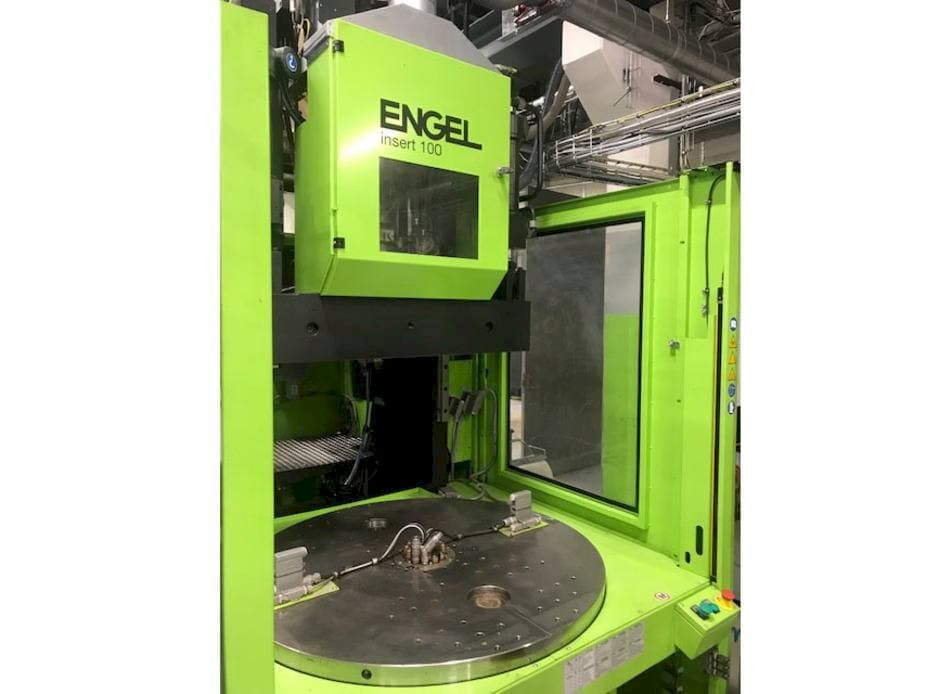

Front view of Engel INSERT 500V/100 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Engel INSERT 500V/100

Photo Gallery

Engel - INSERT 500V/100SE-INJ-ENG-2018-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Engel INSERT 500V/100 Injection moulding machine

Show in original language

This Engel INSERT 500V/100 Injection moulding machine was built in the year 2018 and has 13258 running hours. The machine has a clamping force of 1000 kN and a screw diameter of 40 mm.

Overview

brand: Engel
year: 2018
MODEL: INSERT 500V/100
production hours: 13258
application type: Injection Moulding
Location: Sweden
machine type: Electrical Injection Moulding Machine

Technical Information - Engel INSERT 500V/100

General Data

Machine weight: 8500 kg

Injection Unit

Screw diameter: 40 mm
Stroke volume: 251 CM³
Injection pressure: 1300 bar (regenerative) - 2020 bar (max)

Clamping unit

Clamping force: 1000 kn
Distance between bars: 700 mm
Mould height min: 350 mm
Ejector stroke: 105 mm

Media

Main electronic connection: 110 kW

Additional Information

Machine Benefits

Qualitative Machine Benefits

As new

Technical Machine Benefits

L/d ratio: 20
Heating zones incl. Nozzle: 4
Heating: 9,3 kw
Opening stroke + cylinder tolerance: 358 mm
Platen size horizontal x vertical: 1130 x 500 mm
Maximum mold weight moving platen: 600 kg
Maximum mold weight total: 2100 kg
Weight clamping unit: 7100 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
