Engel CL 4550/750

Photo Gallery

Engel - CL 4550/750DE-INJ-ENG-2007-00004

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Engel CL 4550/750 For Sale | gindumac.com

Show in original language

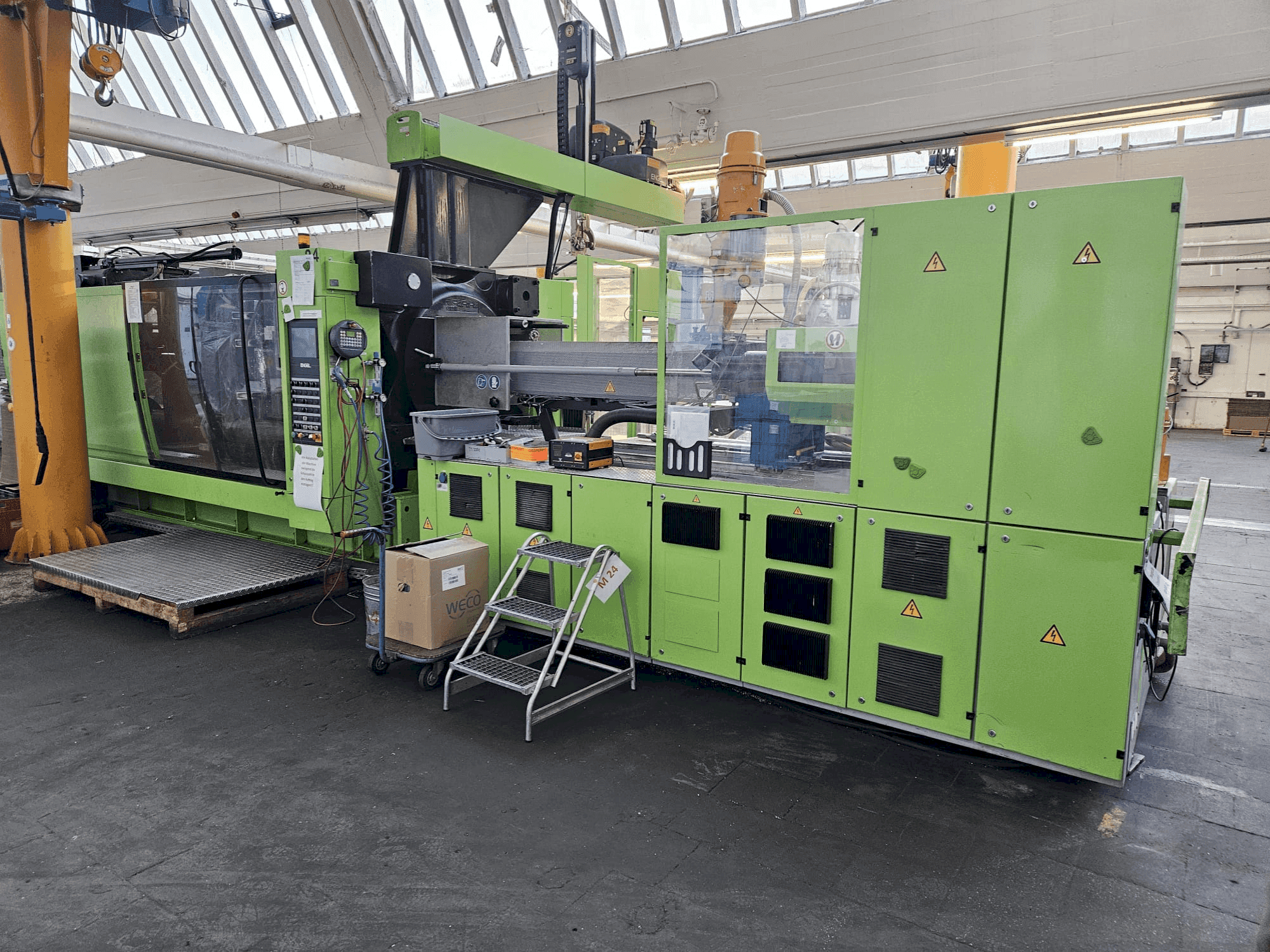

This Engel CL 4550/750 hydraulic injection moulding machine was manufactured in 2007. It is a robust and reliable choice for your production needs. Consider the opportunity to buy this Engel CL 4550/750 hydraulic injection moulding machine. Contact us for more information.

Overview

brand: Engel
year: 2007
MODEL: CL 4550/750
production hours: 71303
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Engel CL 4550/750

General Data

Measurements width: 4900 mm
Measurements depth: 1080 mm
Measurements height: 4700 mm
Machine weight: 19000 kg

Injection Unit

Screw diameter: 90 mm
Shot weight: 2480 gr

Clamping unit

Clamping force: 7500 kN

Additional Information

Additional equipment

Optional cranes available: 3.2t, 2t, 1.5t

Machine Benefits

Technical Machine Benefits

The toggle lever was changed a few years ago.
Current connection value: 90 kw
Sg mould clamping area (w x h): 1025 x 925 mm
Installation height: min 400 mm / max 920 mm
Centring ring injection / closing side: 200
Controil unit: cc200
Toggle lever has been replaced

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
