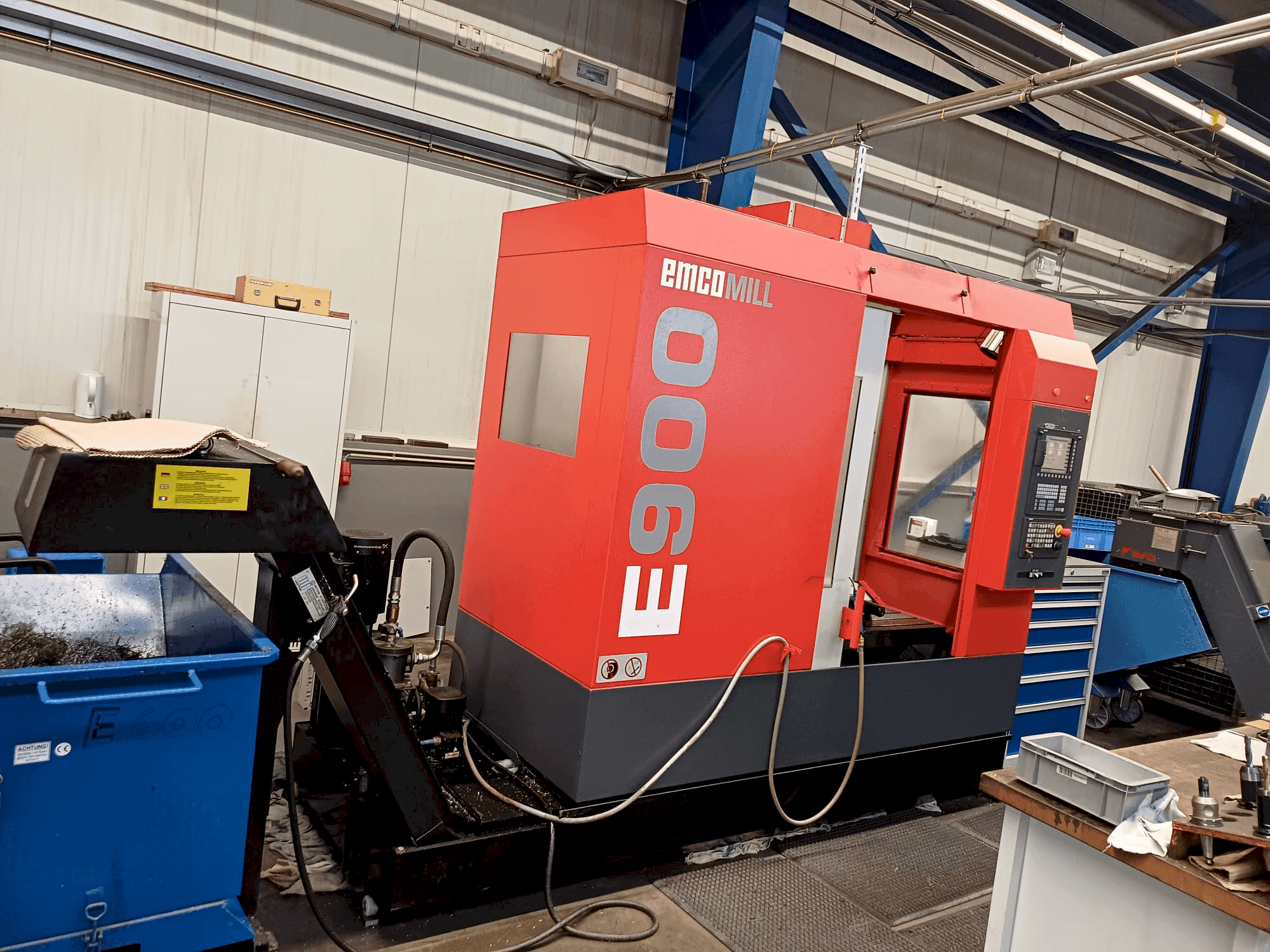

Front view of EMCO EmcoMill E900  machine

EMCO - EmcoMill E900DE-MIL-EMC-2014-00001

Rs. 2,941,550
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis EMCO EmcoMill E900 was manufactured in 2014. A vertical machining center featuring a Siemens 828D control, it offers a spindle speed up to 12,000 rpm and torque of 83 Nm. It has a travel distance of X 900mm, Y 500mm, Z 500mm, and a rapid traverse rate of 24m/min. The machine includes a chip conveyor, a 360l cooling medium tray, and a 20-tool magazine. If you are looking to get high-quality milling capabilities consider the EMCO EmcoMill E900 machine we have for sale. Contact us for more information.

Overview

  • brand: EMCO
  • year: 2014
  • MODEL: EmcoMill E900
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - EMCO EmcoMill E900

Control Unit

  • Brand: SIEMENS
  • Model: 828 D

Main drive

  • Spindle speed range: 50-12000 1/MIN
  • Number of axis: 3

Movement

  • X-AXIS Movement: 900 mm
  • X-AXIS Rapid traverse: 24 m/min
  • Y-AXIS Movement: 500 mm
  • Y-AXIS Rapid traverse: 24 m/min
  • Z-AXIS Movement: 500 mm
  • Z-AXIS Rapid traverse: 24 m/min

Table

  • Outer length: 1000 mm
  • Outer width: 520 mm
  • Min distance between vertical spindle and table: 100 mm
  • Max distance between vertical spindle and table: 600 mm
  • Table load: 800 kg

Tools

  • Slots in storage: 20

Media

  • Chip conveyor: Yes

    Additional equipment

    • - Rinsing gun
    • - Cooling medium tray 360l
    • - IKZ 15 bar

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Torque: 83 nm
        • - Cast iron table with t-slots: number-width-distance 5-18-100
        • - Automatic workpiece measurement: heidenhain ts 640 measuring probe

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
