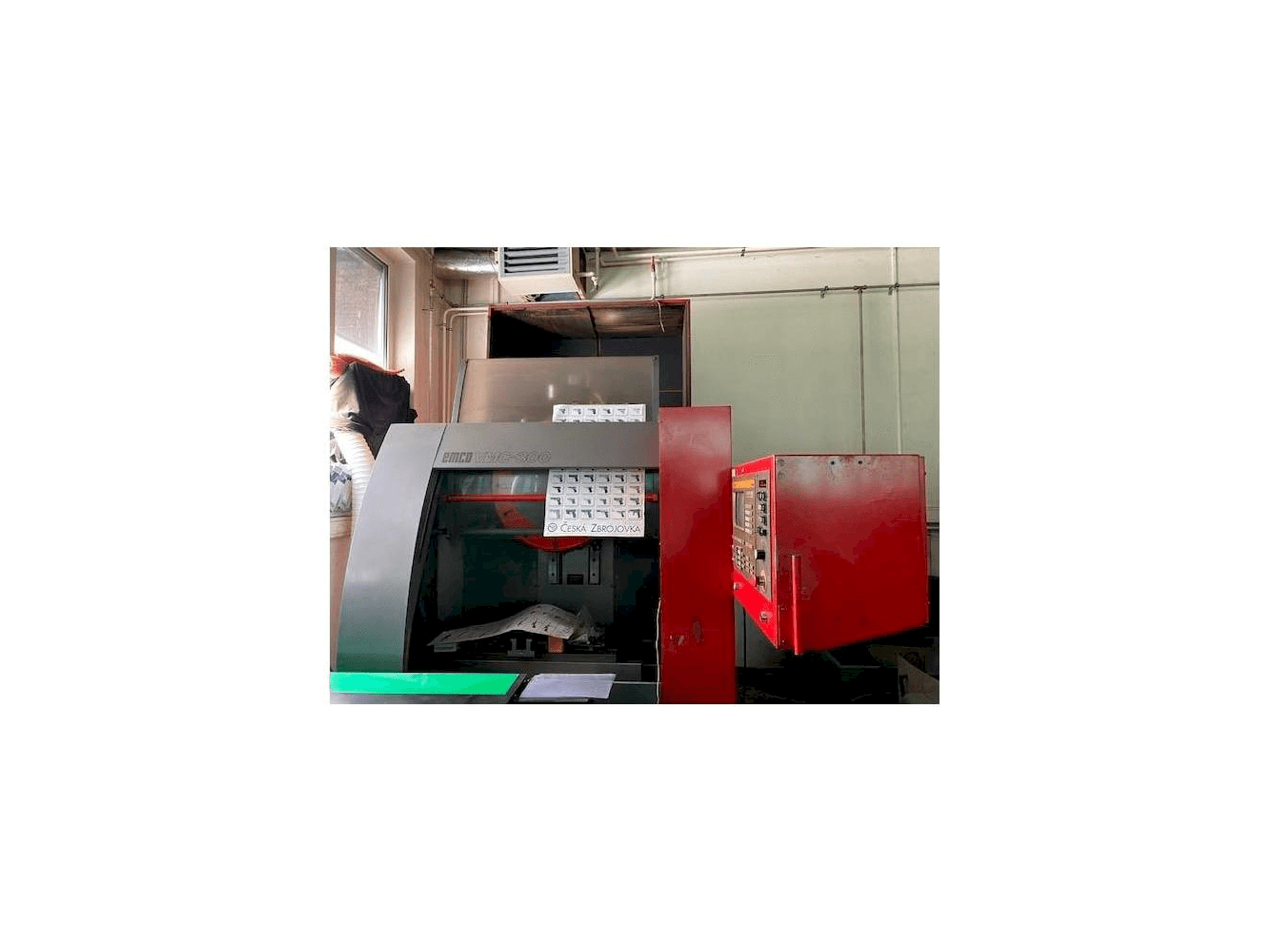

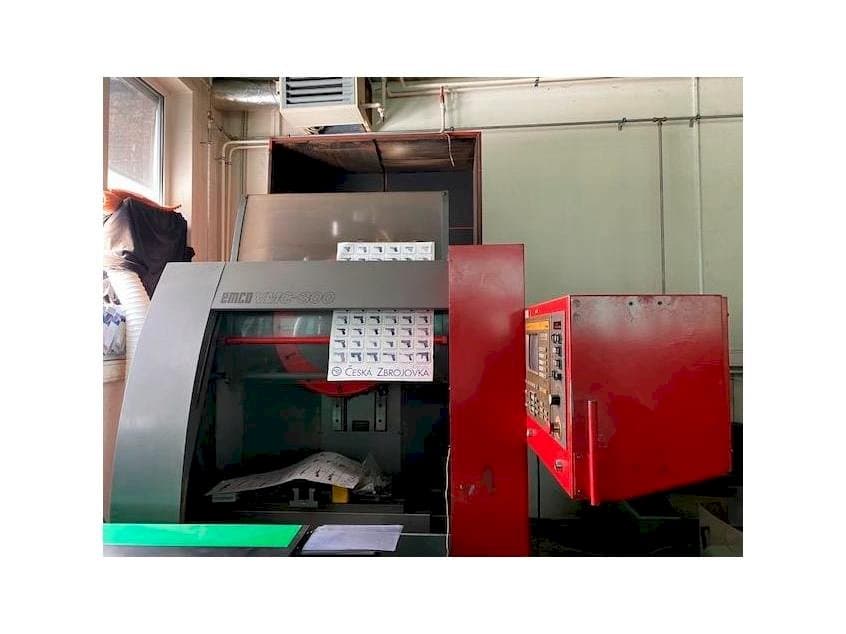

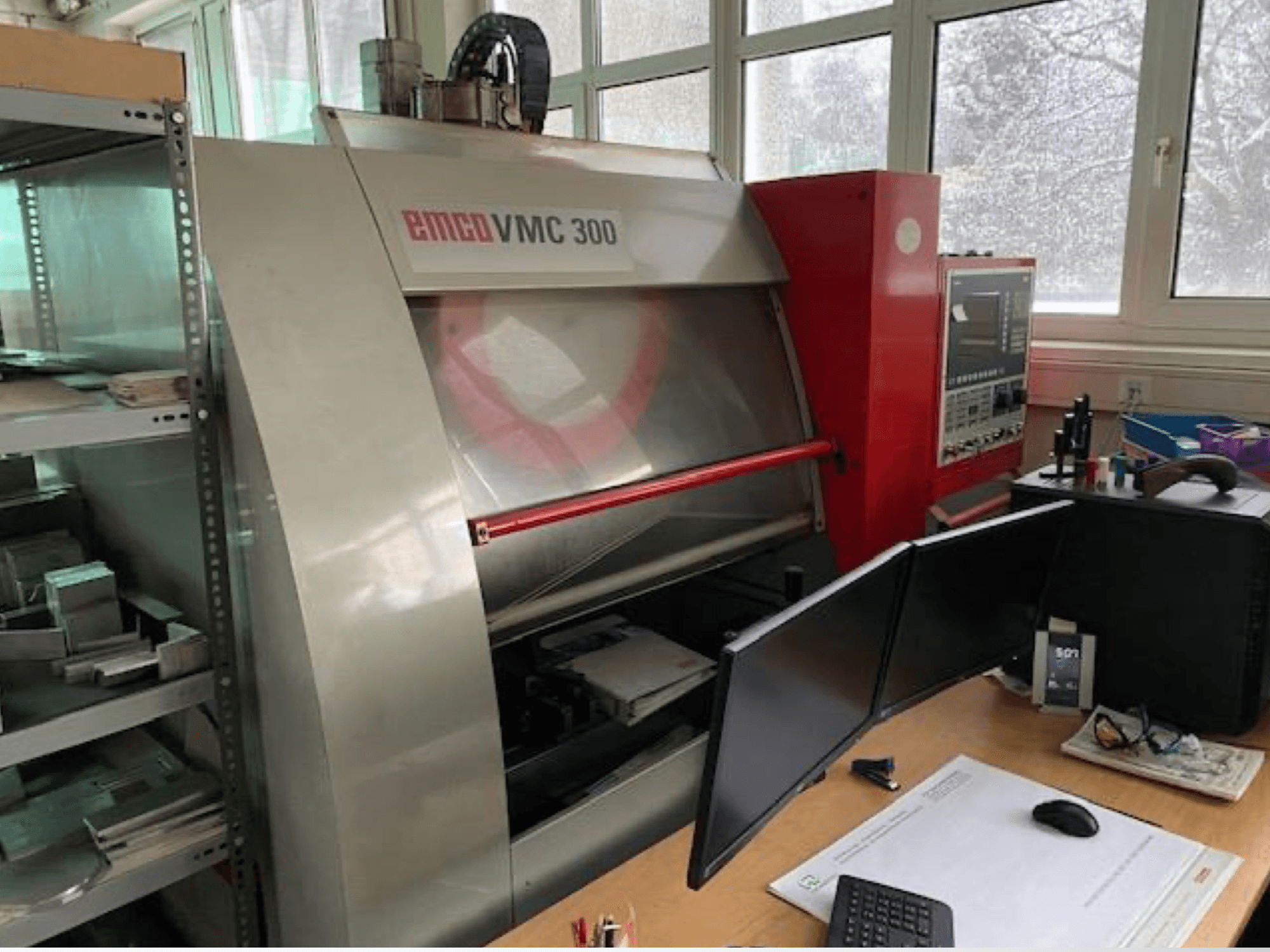

EMCO - VMC 300AT-MIL-EMC-2003-00001

• 2x units available (one newer and one older) with different Control Brands

• Distance from Spindle Nose to Table: 210 – 450 mm

• Number of T-Slots: 3

• T-Slot Width: 14 mm

• T-Slot Spacing: 100 mm

• Spindle Bearing Diameter: Ø60 mm

• Bearing Type: Angular Contact Ball Bearing

• Tool Taper: SK40 (DIN 69871 / ISO 7388-I)

• Pull Stud: M16 (DIN 69872 / ISO 7388-II)

• Automatic Tool Clamping

• Tool Clamping Force: 6,000 N

• Spindle Overhang: 330 mm

• Spindle Motor Power: 9 / 11 kW (100% / 60% Duty Cycle)

• Optional Spindle Speed: 0 – 8,000 rpm

• Maximum Torque: 100 Nm (5,000 rpm) / 78 Nm (8,000 rpm Option)

• Noise Level: 72 dB(A) at 5,000 rpm

• Milling Capacity in Steel (16MnCr5 – 790 N/mm²): 220 cm³/min

• Maximum Drilling Capacity in Steel: Ø25 mm

• Maximum Tapping Capacity in Steel: M20

• AC Servo Drives with Ball Screw Spindles

• Feed Rate (X/Y/Z): 0.01 – 12,000 mm/min

• Rapid Traverse (X/Y/Z): 12 m/min

• Feed Force X/Y: 6,000 N

• Feed Force Z: 8,800 N

• Resolution: 0.001 mm

• Tool Carrier: Drum Type with Direction Logic

• Automatic Tool Changer

• Maximum Total Tool Weight in Magazine: 36 kg

• Maximum Tool Diameter: 100 mm

• Maximum Tool Length: 220 mm

• Tool Change Time: T1: 5.8 s / T2: 3.9 s / T3: 3.9 s

• Chip-to-Chip Time (VDI 2852): T1: 8.9 s / T2: 7.0 s / T3: 7.0 s

• Coolant Tank Capacity: 100 L

• Coolant Pump Flow Rate: 10 L/min

• Maximum Coolant Pressure: 3.7 bar

• Coolant Supply: 4 External Nozzles

• Automatic Central Lubrication for Guideways and Ball Screw Spindles

• Grease Lubricated Main Spindle Bearings

• Power Supply: 3/PE ~ 400 V / 50–60 Hz

• Maximum Voltage Fluctuation: +5% / -10%

• Connected Load: 15 kVA

• Rated Current: 22 A

• Maximum Current: 25 A

• Main Fuse: 35 A (Slow-Blow)

• Required Short-Circuit Power: 1600 kVA

• Pneumatic System Pressure: 5 – 10 bar

• Minimum Air Flow: 750 L/min

• Average Air Consumption: 180 L/min

Additional Equipment

• Automatic 12-Position Tool Changer

• Automatic Central Lubrication System

• Coolant System with 4 External Nozzles

• Automatic Tool Clamping System

• SK40 Spindle Interface

Machine Benefit:

• Reliable 12-Station Automatic Tool Changer

• Integrated Automatic Lubrication System for Guideways and Ball Screw Spindles
