EMCO - Emcomat E-200DK-TUR-EMC-2016-00001

Name: EMCO Emcomat E-200
Brand: EMCO
SKU: DK-TUR-EMC-2016-00001
Price: 2207250 INR
Availability: InStock

Rs. 2,207,250

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used EMCO Emcomat E-200 For Sale | gindumac.com

Show in original language

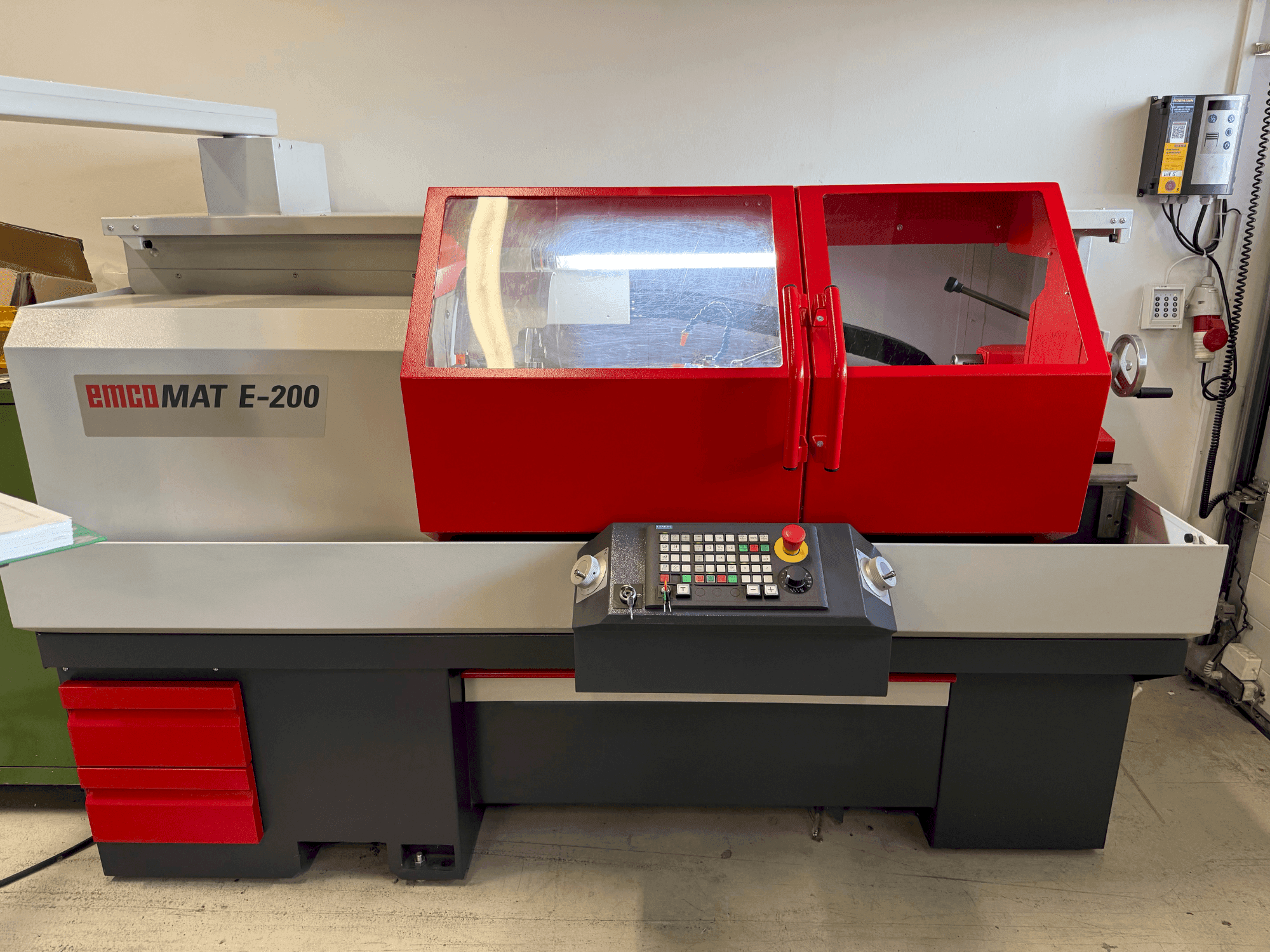

This EMCO Emcomat E-200 was manufactured in 2016. A robust horizontal turning machine featuring a swing over bed of Ø 400 mm and a distance between centers of 1000 mm. It offers a spindle speed range of 50–4000 rpm with stepless speed control and a spindle bore diameter of Ø 80 mm. If you are looking to get high-quality turning capabilities, consider the EMCO Emcomat E-200 machine we have for sale. Contact us for more information.

Overview

brand: EMCO
year: 2016
MODEL: Emcomat E-200
application type: Turning
Location: Denmark
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - EMCO Emcomat E-200

Control Unit

Brand: SIEMENS
Model: 828D

Main drive

Spindle speed range: 53 / 50 mm 1/MIN
Spindle motor power: 7.5 / 10 kW
Spindle bore: 53 / 50 mm
Number of axis: 2

Movement

X-AXIS Rapid traverse: 10 m/min
Z-AXIS Rapid traverse: 10 m/min

Workpiece

Workpiece drm over bed: 400 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Ac motor, steplessly adjustable
- - Max. Rated torque at main spindle: 108 nm
- - Longitudinal travel (carriage): 900 mm
- - Cross travel (cross slide): 220 mm
- - Distance between centers: 1000 mm
- - Center height: 200 mm
- - Swing over cross slide: Ø 220 mm
- - Permissible workpiece weights unsupported (max. 5 kg at 4000 rpm): 30 kg / supported by tailstock: 80 kg
- - Bed width: 260 mm
- - Cross slide width: 150 mm

Extra information

- Spindle Spindle mount: Gr. 5 (KK5 / DIN 55029) Spindle bore diameter: Ø 80 mm Spindle diameter at front bearing: Ø 200 mm Max. chuck diameter: Ø 260 mm Max. faceplate diameter: Ø 260 mm Spindle speed range: 50–4000 rpm Speed control: Stepless Tail Stock Quill diameter: Ø 50 mm Quill taper: MK3 Quill stroke: 120 mm Tools Tool cross-section: 20 x 20 mm Feed Feed range X / Z axis: 0–8000 mm/min Max. feed force X: 4 kN Max. feed force Z: 4 kN Ball screw X axis, lead / diameter: 5 / Ø 16 mm Ball screw Z axis, lead / diameter: 5 / Ø 32 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
