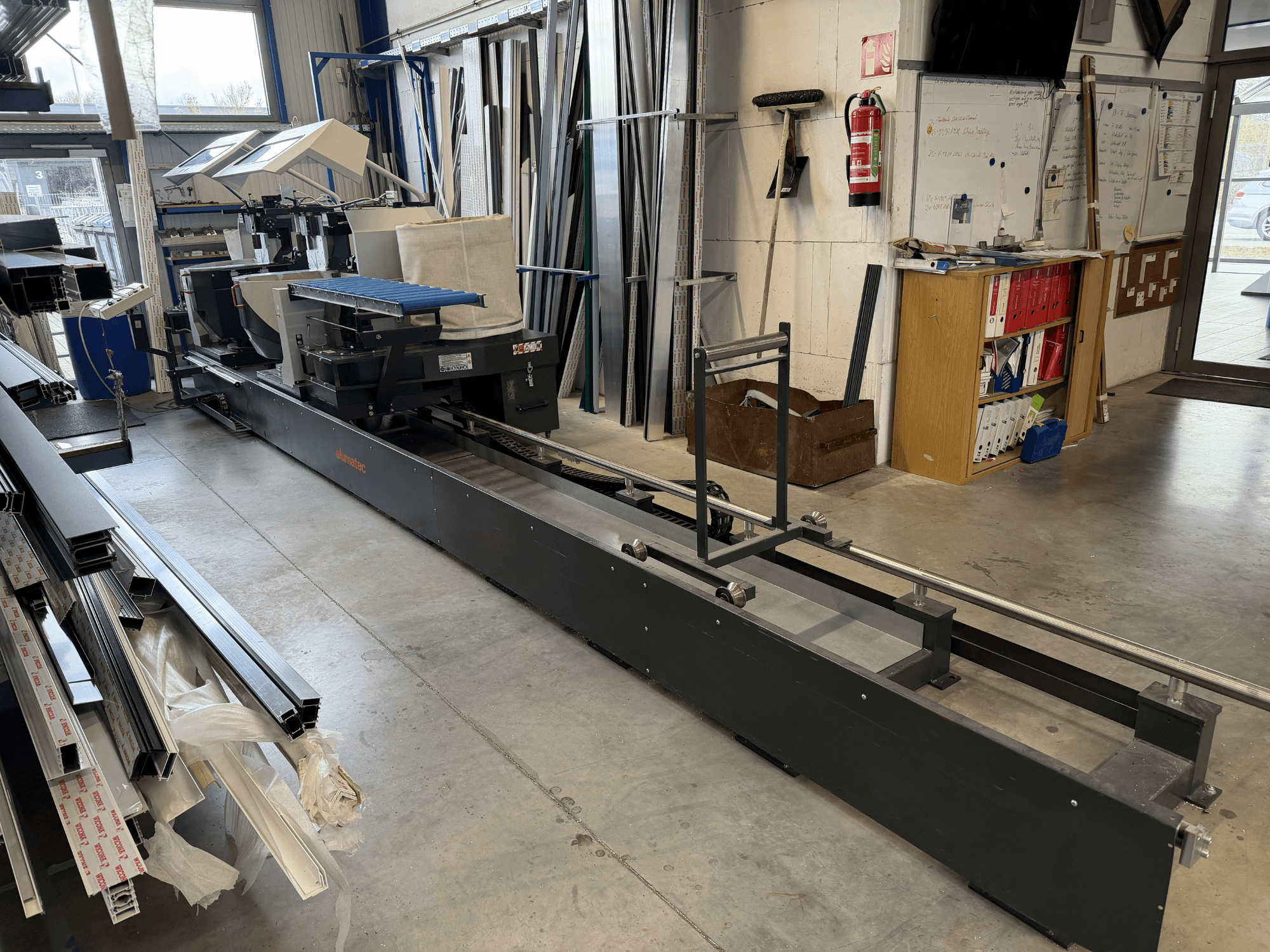

Elumatec DG 244

Photo Gallery

Elumatec - DG 244DE-SAW-ELU-2020-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Elumatec DG 244 - 2020 - For Sale | gindumac.com

Show in original language

This Elumatec DG 244 was manufactured in 2020. It features a cutting length of 6.0 m and a maximum saw blade diameter of 550 mm, providing efficient cutting capabilities. The machine includes a complete extraction unit and a mobile workpiece support for enhanced functionality. If you are looking to get high-quality circular metal cutting capabilities, consider the Elumatec DG 244 machine we have for sale. Contact us for further details.

Overview

brand: Elumatec
year: 2020
MODEL: DG 244
production hours: 1145
application type: Sawing
Location: Germany
machine type: Circular Metal Saw

Technical Information - Elumatec DG 244

Dimensions

Machine Weight: 2485 kg

Additional Information

- Cutting Length: 6.0 m

- Saw Blade Diameter: Max. ø 550 mm

- Saw Blade Bore: d 30 mm

- Saw Blade Speed: 3000 1/min

- Voltage: 3/PEN 400 V

- Frequency: 50 Hz

- Current: 21.8 A

- Power: 9.2 kW

- Operating Pressure: P 7 bar

- Short-circuit current rating: Ik 10KA

- Machine Weight: 2485 Kg

- a total of 5 axes: 1 axis, where the length is automatically adjustable, the remaining 4 axes are adjusted pneumatically

- Included Components / Accessories:

- Short-length stop for stationary aggregate

- Complete extraction unit DG244 2x2.2kW

- Profile lifting bar set for stationary and mobile aggregate

- Pneumatic clamping device horizontal, per aggregate -230mm

- Mobile workpiece support

- Moving roller conveyor 1.5 m long, 400 mm wide for extraction unit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
