Thank you for your visit

This machine was recently sold.

Browse similar machines

DOOSAN - VM6500KR-MIL-DOO-2018-00003

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

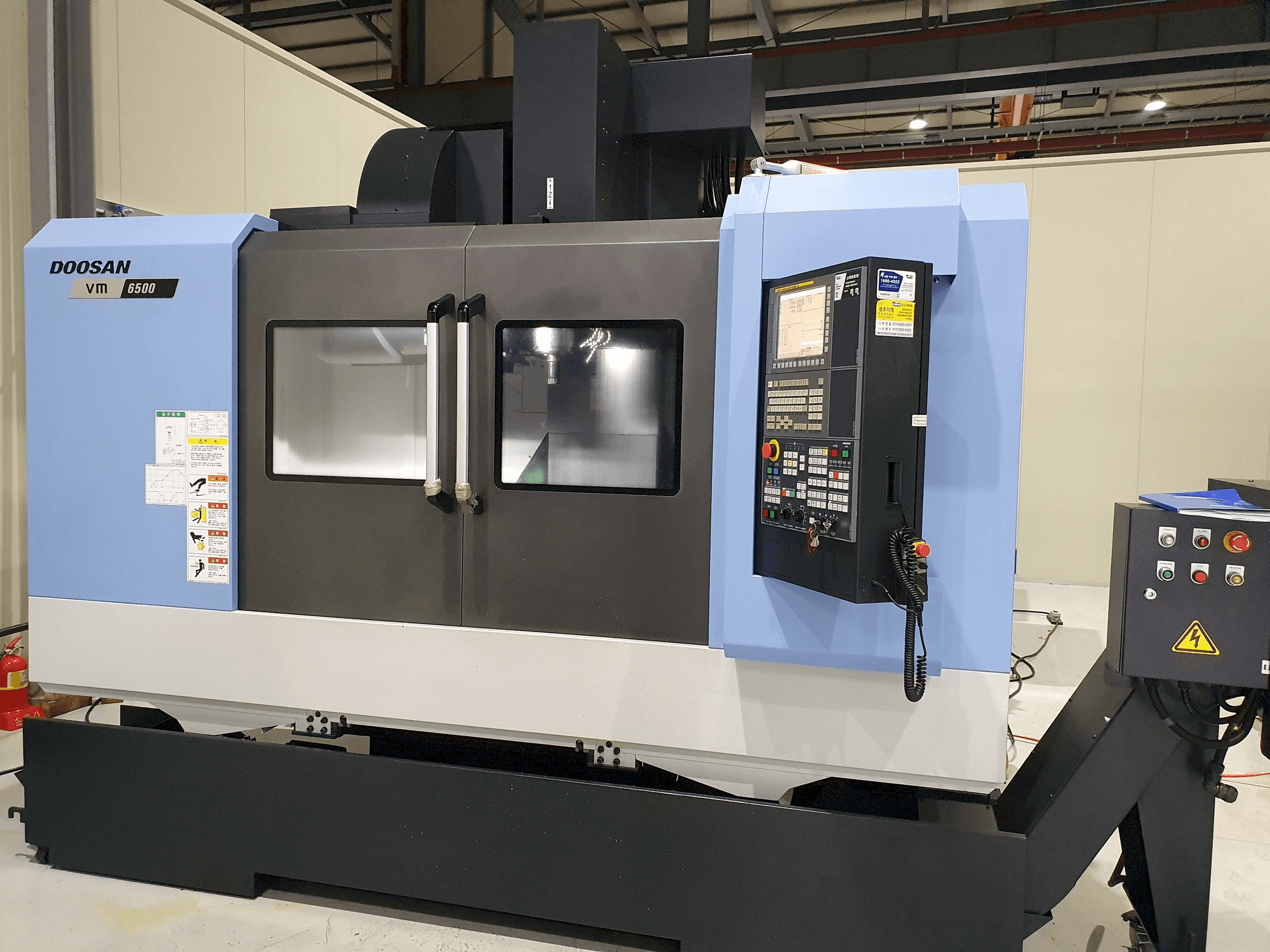

This Doosan VM6500 Vertical Machining Center was made in the year 2018. The machine operates through a FANUC Series 32i-MODEL B control unit. This 3 axis machine has a spindle speed range up to 12000 rpm. It includes a MPG handle, a chip conveyer and manual books. The machine has cooling through spindle TSC 20 BAR.

Overview

  • brand: DOOSAN
  • year: 2018
  • MODEL: VM6500
  • application type: Milling
  • Location: South Korea
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - DOOSAN VM6500

Control Unit

  • Control Brand: FANUC
  • Control Model: Series 32i-MODEL B

Dimensions

  • Table Length: 1400 mm
  • Table Width: 670 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 1270 mm
  • Y-axis Travel: 670 mm
  • Z-axis Travel: 625 mm

Technical Specification

  • Spindle Speed: 12000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

  • Manual books
  • Ce mark

Technical Machine Benefits

  • Chip conveyer, bucket
  • Bt40
  • Data server 1gb
  • AiccⅡ_200 block
  • Air blow
  • Tsc 20 bar
  • Magazine tool capacity : 30ea
  • Call right (led 3 step)
  • Guideway type:box guide
  • Mpg handle

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
