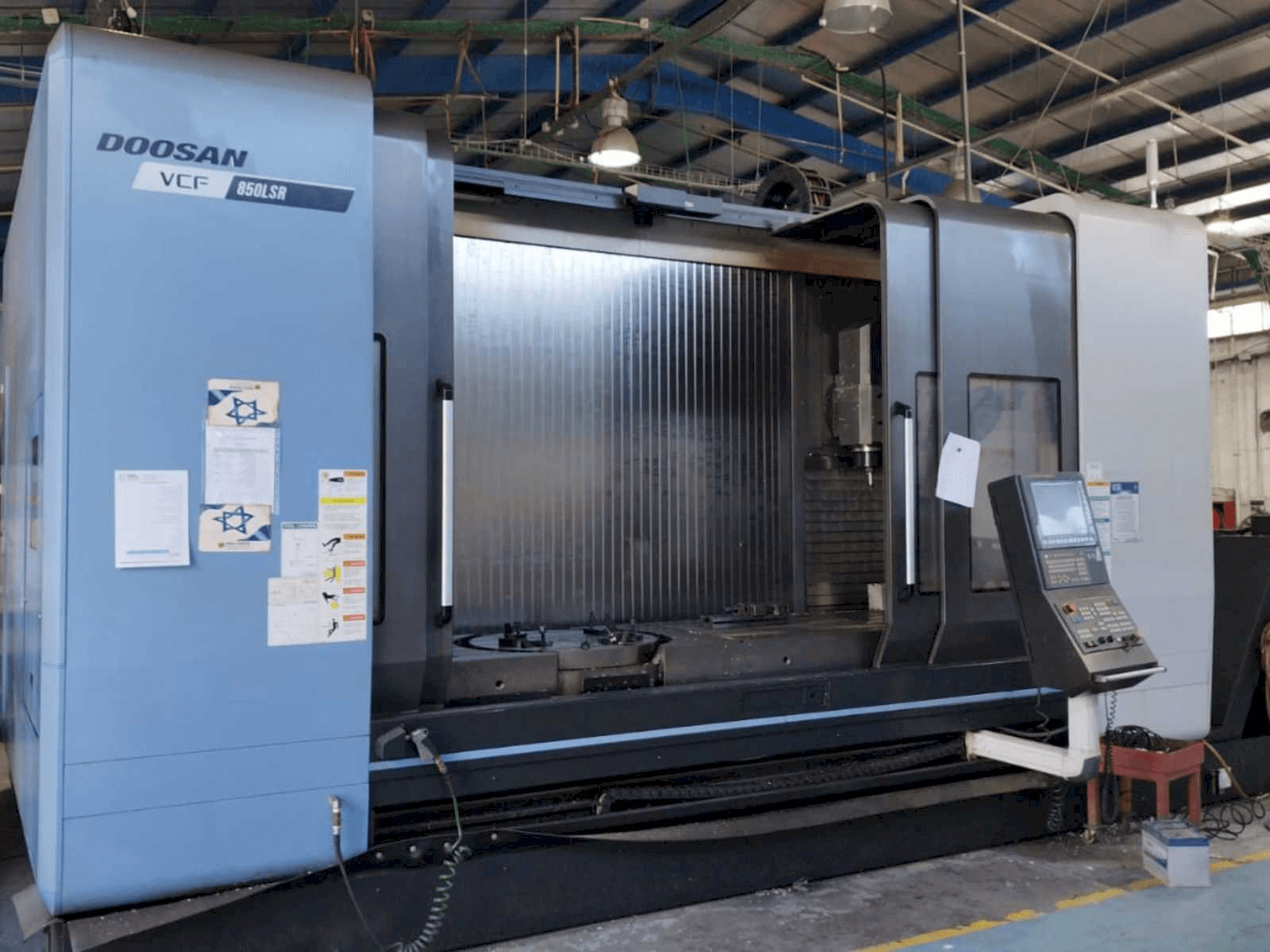

This Doosan VCF 850LSR Vertical Machine Center was manufactured in the year 2017 in Korea. It is equipped with a FANUC F31i-5AX control unit and has 5 axis. The machine has a spindle speed of 12000 rpm and a max. tool diameter of 80 mm.

Overview

  • brand: DOOSAN
  • year: 2017
  • MODEL: VCF 850LSR
  • application type: Milling
  • Location: Israel
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - DOOSAN VCF 850LSR

Control Unit

  • Control Brand: FANUC
  • Control Model: F31i-5AX

Dimensions

  • Machine Depth: 5440 mm
  • Machine Height: 3205 mm
  • Table Length: 3500 mm
  • Table Width: 870 mm

Movement

  • Number of Axes: 5
  • X-axis Travel: 3000 mm
  • Y-axis Travel: 850 mm
  • Z-axis Travel: 800 mm

Technical Specification

  • Max. Tool Weight: 8 kg
  • Spindle Power: 18.5 kW

Additional Information

Machine Benefits

Qualitative Machine Benefits

  • Number of pockets: atc60

Technical Machine Benefits

  • Table surface mm t-slot (5-150 x 18h8)
  • Max. Workpiece height mm 900
  • Spindle to table surface mm 100-900
  • Max. Torque (25% ed) nm 204
  • Power transmission - built-in drive
  • Taper type iso #40, 7/24 taper
  • Max. Cutting feedrate 20,000 mm/min
  • Positioning mm ±0. 005/full stroke
  • Repeatability mm ±0. 002
  • Tool shank mas403 bt-40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
