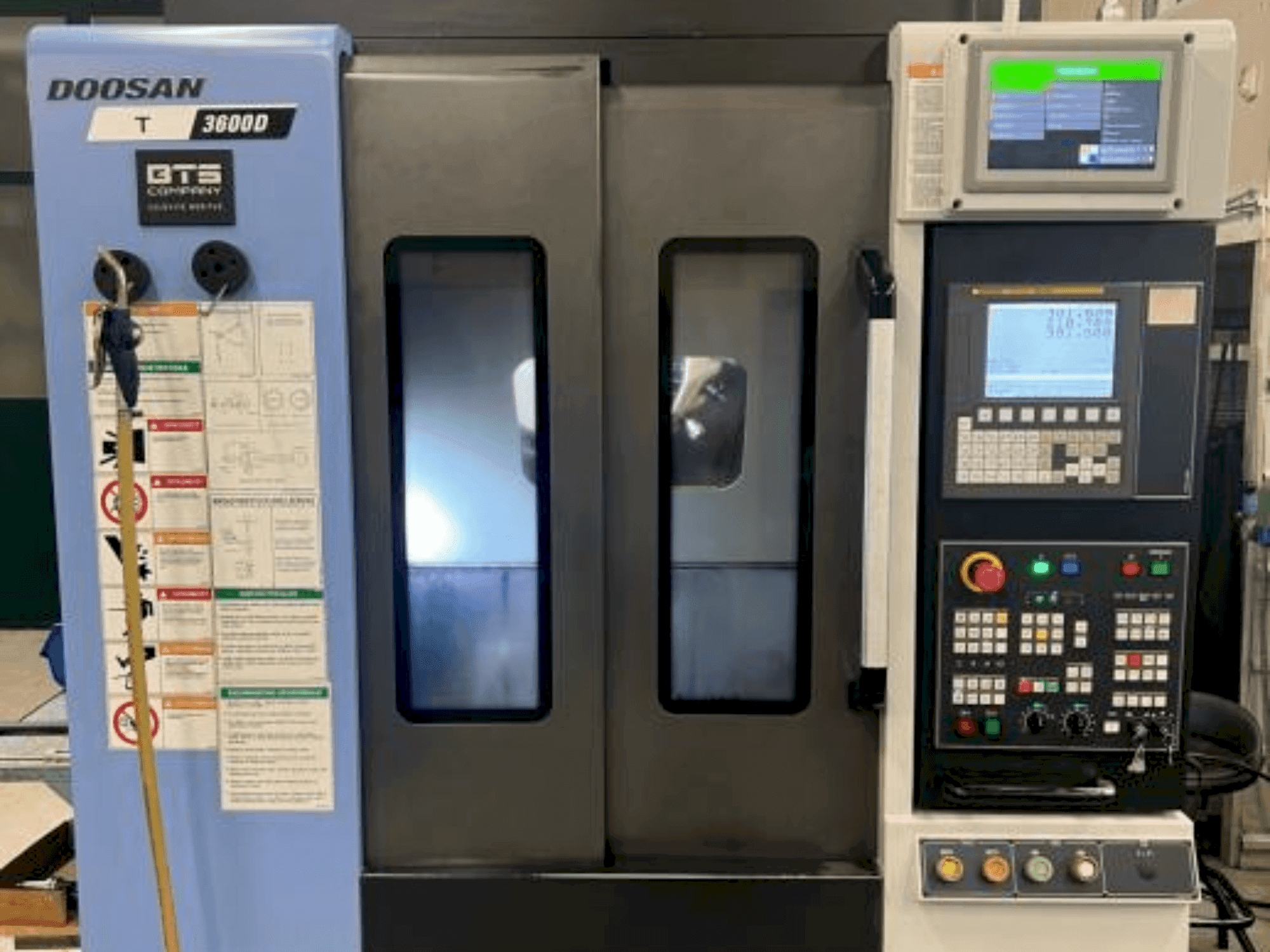

Front view of DOOSAN T3600 D  machine

DOOSAN - T3600 DSI-MIL-DOO-2016-00001

Rs. 4,118,400
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis DOOSAN T3600 D vertical machining center was manufactured in 2016. It features a CNC FANUC I series controller, dual rotary table, and is still operational for testing. Key specifications include a max spindle speed of 12,000 rpm, spindle power of 13 kW, and a table capable of handling loads up to 200 kg. Ideal for precision machining, the DOOSAN T3600 D machine we have for sale is in very good condition. Contact us for further details regarding this vertical machining center.

Overview

  • brand: DOOSAN
  • year: 2016
  • MODEL: T3600 D
  • production hours: 3100
  • application type: Milling
  • Location: Croatia
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - DOOSAN T3600 D

General Data

  • Measurements width: 1729 mm
  • Measurements depth: 3684 mm
  • Measurements height: 2507 mm
  • Machine weight: 5200 kg

Control Unit

  • Model: I SERIES
  • Brand: FANUC

Main drive

  • Number of spindles: 1
  • Spindle speed range: 12000 rpm 1/MIN
  • Spindle motor power: 13 kW
  • Tool taper: BT30
  • Number of axis: 3

Movement

  • X-AXIS Movement: 520 mm
  • X-AXIS Rapid traverse: 48 m/min
  • Y-AXIS Movement: 360 mm
  • Y-AXIS Rapid traverse: 48 m/min
  • Z-AXIS Movement: 350 mm
  • Z-AXIS Rapid traverse: 56 m/min

    Additional equipment

    • - Holder (pin) BT30 - ER 25 … 5 pieces
    • - Holder (pin) BT30 – Weldon … 2 pieces
    • - Pulling screws … 10 pieces

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Dual rotary table with two pallets
        • - Rapid feed rates: x-axis 48 m/min, y-axis 48 m/min, z-axis 56 m/min

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
