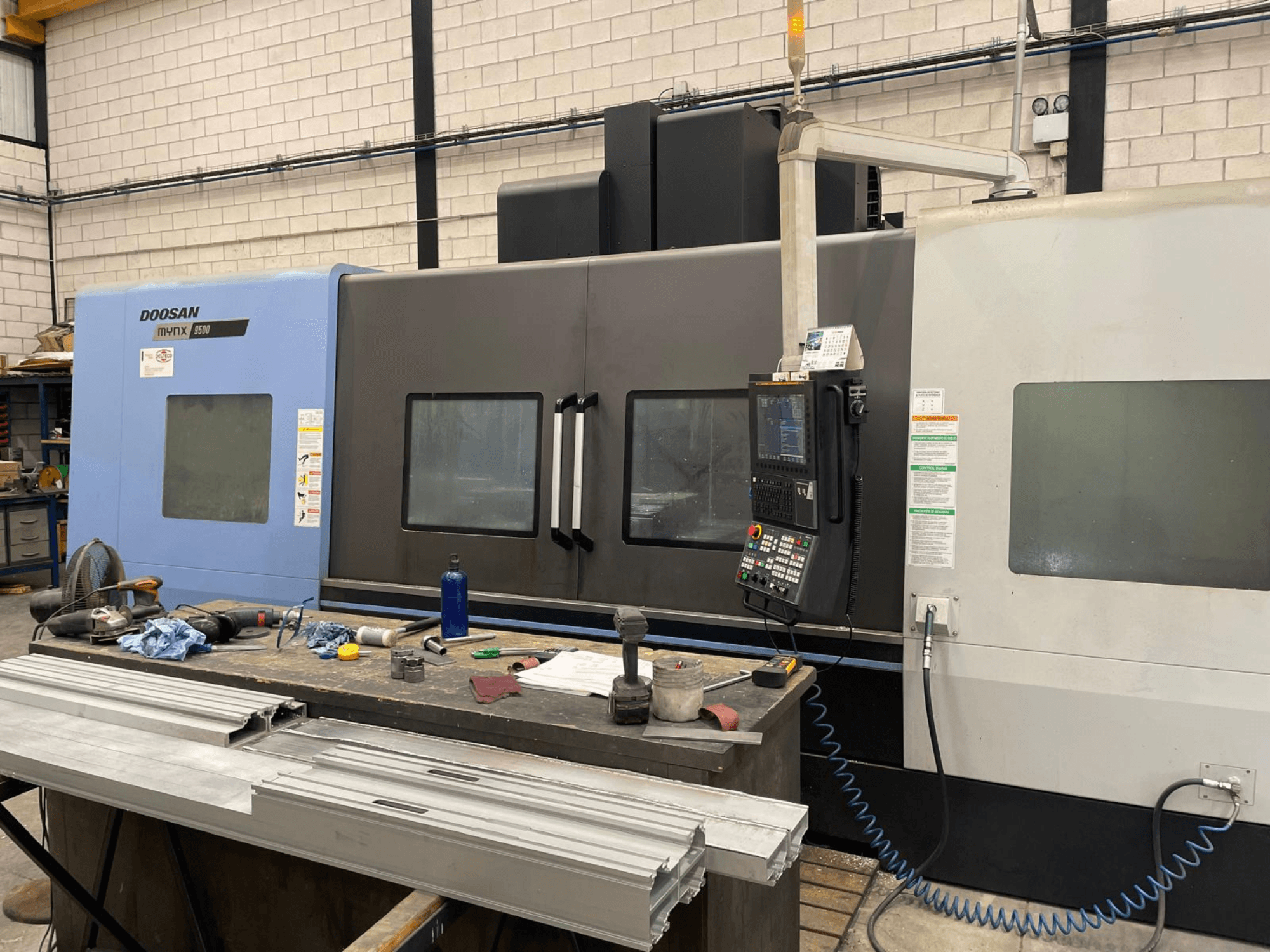

Doosan Mynx 6500 CNC machine in blue and gray with control panel, side view, workspace with tools and materials in foreground.
Doosan Mynx 6500 CNC machine in blue and gray with control panel, side view, workspace with tools and materials in foreground.

DOOSAN - MYNX 9500ES-MIL-DOO-2020-00001

Rs. 15,654,000
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis DOOSAN MYNX 9500 was manufactured in 2020, featuring a BT-50 spindle taper and a spindle speed of 6,000 rpm. It includes a 40-tool ATC and can handle a table load up to 4,000 kg. The machine dimensions are approximately 5,000 × 4,000 × 3,800 mm. If you are looking to get high quality milling capabilities consider the DOOSAN MYNX 9500 machine we have for sale.Contact us for more information.

Overview

  • brand: DOOSAN
  • year: 2020
  • MODEL: MYNX 9500
  • application type: Milling
  • Location: Spain
  • machine type: Vertical Machining Centre

Technical Information - DOOSAN MYNX 9500

General Data

  • Measurements width: 4000 mm
  • Measurements depth: 5000 mm
  • Measurements height: 3800 mm
  • Machine weight: 18000 – 20000 kg

Main drive

  • Spindle speed range: 6000 1/MIN
  • Tool taper: BT-50
  • Number of axis: 3

Movement

  • X-AXIS Movement: 2500 mm
  • X-AXIS Rapid traverse: 20 m/min
  • Y-AXIS Movement: 950 mm
  • Y-AXIS Rapid traverse: 20 m/min
  • Z-AXIS Movement: 850 mm
  • Z-AXIS Rapid traverse: 18 m/min

Table

  • Table load: 4000 kg

Additional Information

  • Tool changer: 40-tool ATC

  • Table size: approx. 2,500 × 950 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
