➤ Used DOOSAN MX2100ST For Sale | gindumac.com

Show in original language

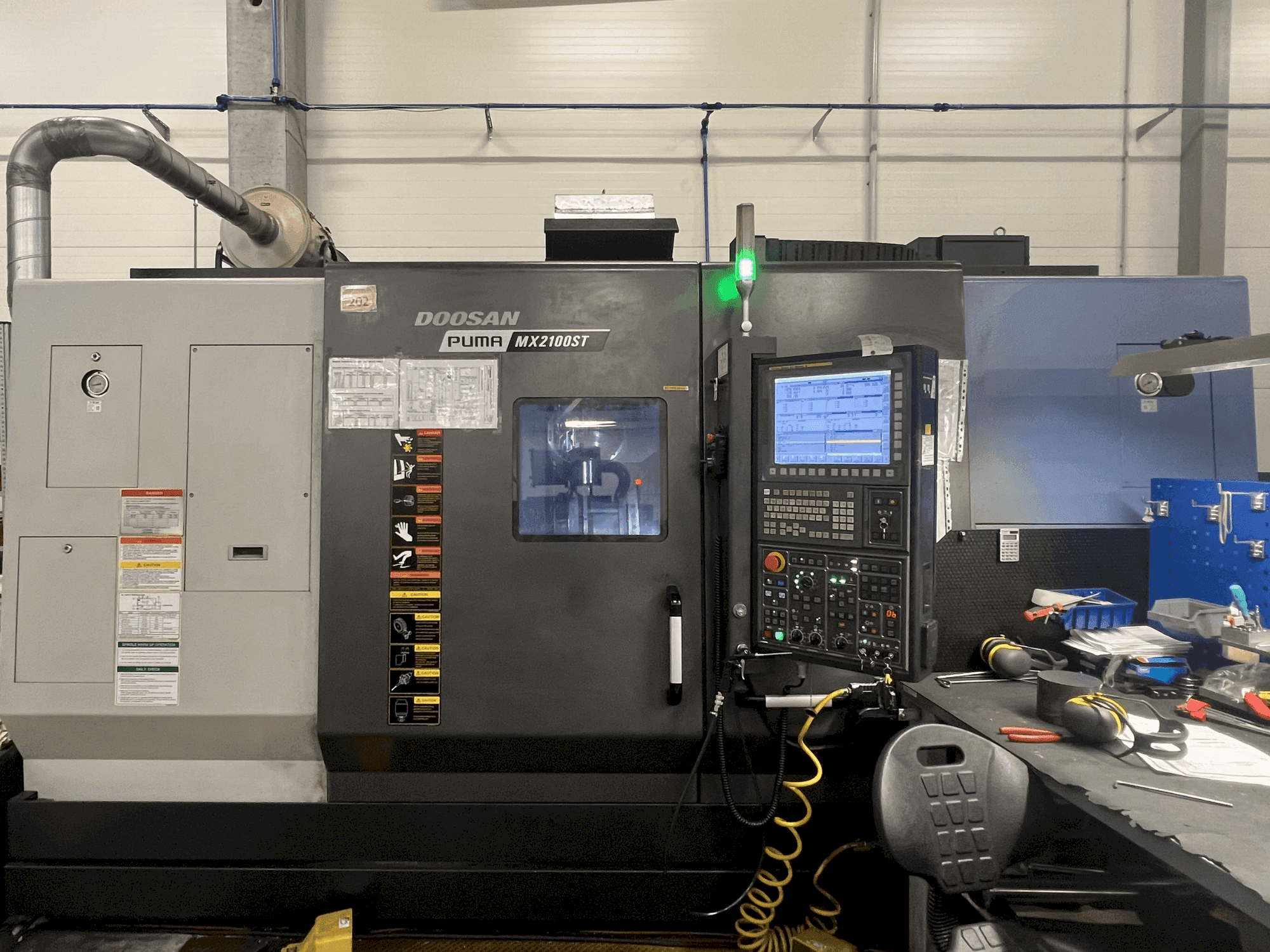

This 9-axis DOOSAN MX2100ST turn-mill centre was manufactured in 2020, featuring a swing over bed of 750 mm and a maximum working length of 1020 mm. It supports a bar working diameter of 65 mm and includes comprehensive Y, A, C1, C2, and B axis movements for versatile machining capabilities. If you are looking to get high-quality turning and milling capabilities, consider the DOOSAN MX2100ST machine we have for sale. Contact us for more information.

Overview

brand: DOOSAN
year: 2020
MODEL: MX2100ST
application type: Turning
Location: Latvia
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DOOSAN MX2100ST

General Data

Measurements width: 3517 mm
Measurements depth: 2300 mm
Measurements height: 2805 mm
Machine weight: 12000 kg

Control Unit

Brand: FANUC
Model: FANUC 31i-B

Main drive

Number of axis: 9

Workpiece

Workpiece drm over bed: 750 mm

Additional equipment

- Full licenses for MasterCam software available for programming
- Mastercam Lathe
- Mastercam Mill 3D
- Mastercam Multiaxis
- Mastercam DOOSAN PUMA MX2100ST Machine Environment
- Additional Mastercam Mill 3D license available for an extra price

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Capacity: 8864 kva
- - Swing over saddle upper: 540 mm
- - Swing over saddle lower: 270 mm
- - Recommended turning diameter: 540 mm
- - Max working length: 1020 mm
- - Bar working diameter: 65 mm

Extra information

- All other technical data available in attached separate documentation. Movement Travel Distance: X1 Axis: 565 mm X2 Axis: 187 mm Z1 Axis: 1050 mm Z2 Axis: 1050 mm Y Axis: 170 mm (±85 mm) A Axis: 1050 mm C1, C2 Axis: 360° (0.001°) B Axis: 240° (±120°) B Axis Coupling Clamp Deg: 5°

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
