DOOSAN Lynx 220LYC

Photo Gallery

DOOSAN - Lynx 220LYCGB-TUR-DOO-2014-00004

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Lynx 220LYC Lathe

Show in original language

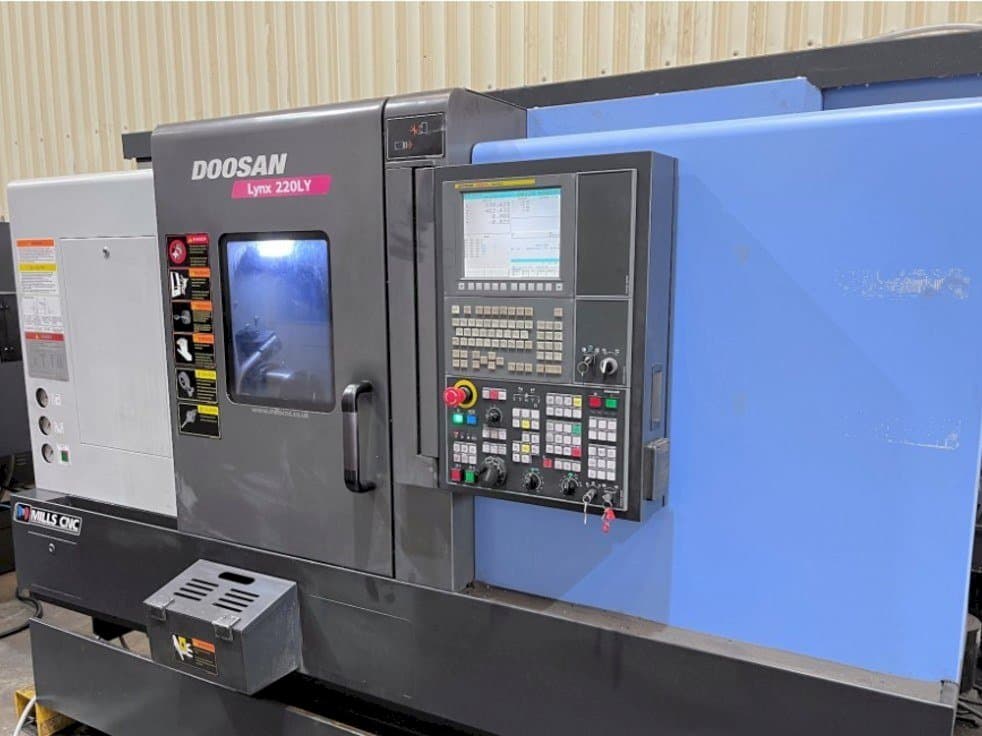

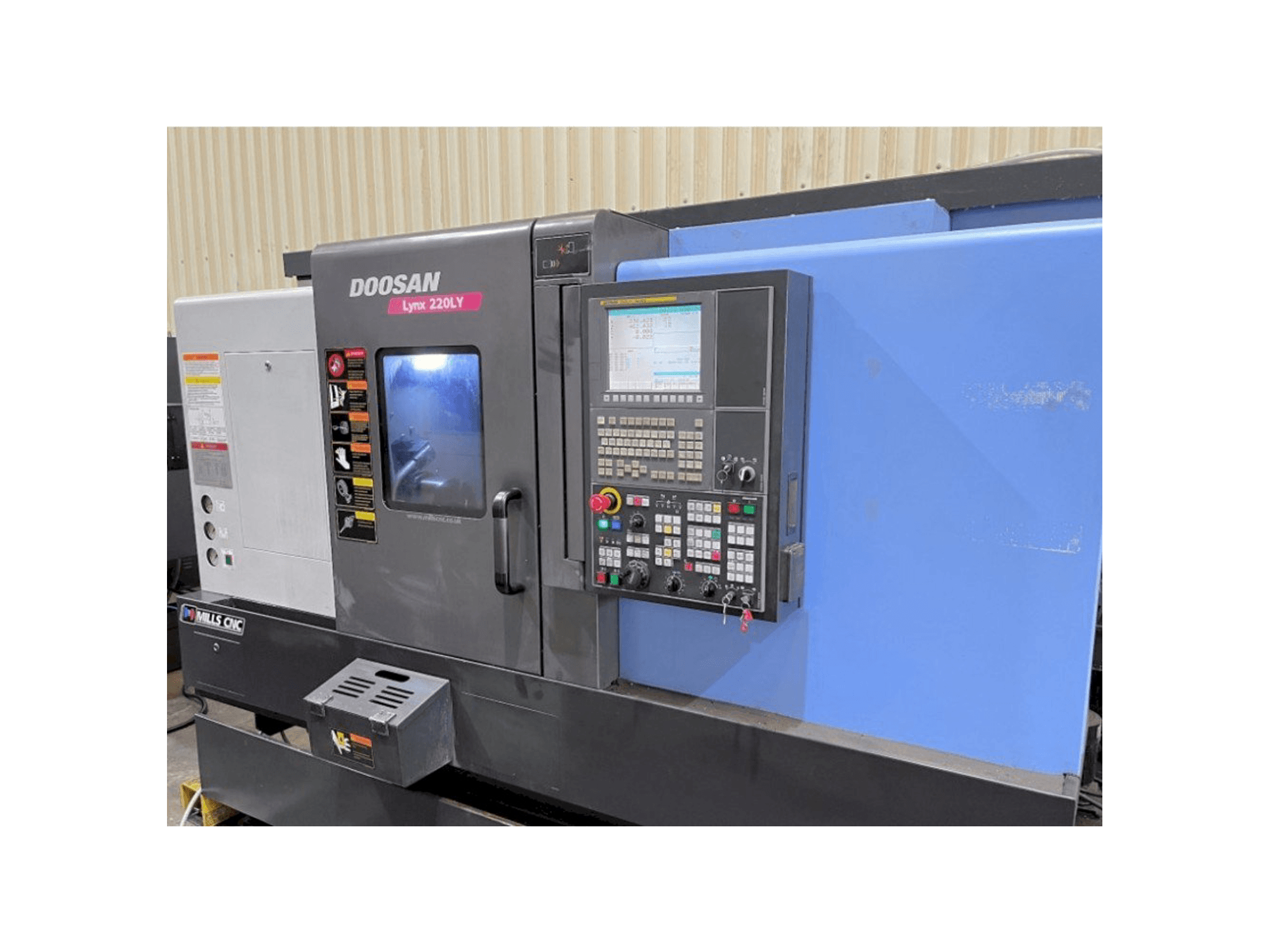

This Doosan Lynx 220LYC Lathe was made in 2014 in South Korea and has 20526 production hours, of which 3613 are cutting hours. It is equipped with a Fanuc i-Series control unit and has 4 axis. The machine has a spindle speed of 4500 rpm, is in very good condition and well maintained.

Overview

brand: DOOSAN
year: 2014
MODEL: Lynx 220LYC
production hours: 20526
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DOOSAN Lynx 220LYC

Control Unit

Control Brand: FANUC
Control Model: i Series

Dimensions

Machine Depth: 1710 mm
Machine Height: 1920 mm
Machine Weight: 4150 kg

Movement

Number of Axes: 4
X-axis Travel: 205 mm
Y-axis Travel: 52 mm
Z-axis Travel: 560 mm

Technical Specification

Spindle Speed: 4500 RPM
Tool Stations: 24

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Swing over bed 600 mm, over carriage 400 mm
Maximum machining diameter 300 mm
Maximum machining length 510 mm
Bar capacity 65 mm
Main spindle motor power 15/11 kw
Turret milling power 3. 7 kw; speed 6000 rpm
0. 001 degree c axis
3 jaw chuck 210 mm, collet chuck, parts catcher, manuals, tooling, usb port
"turret positions 24 station (1/2 index option - positions 1-12 driven))"
Tailstock (taper mt #4, quill diameter/ stroke 65/80mm)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
