- ➤ Used DOOSAN DNM 750 II For Sale | gindumac.com

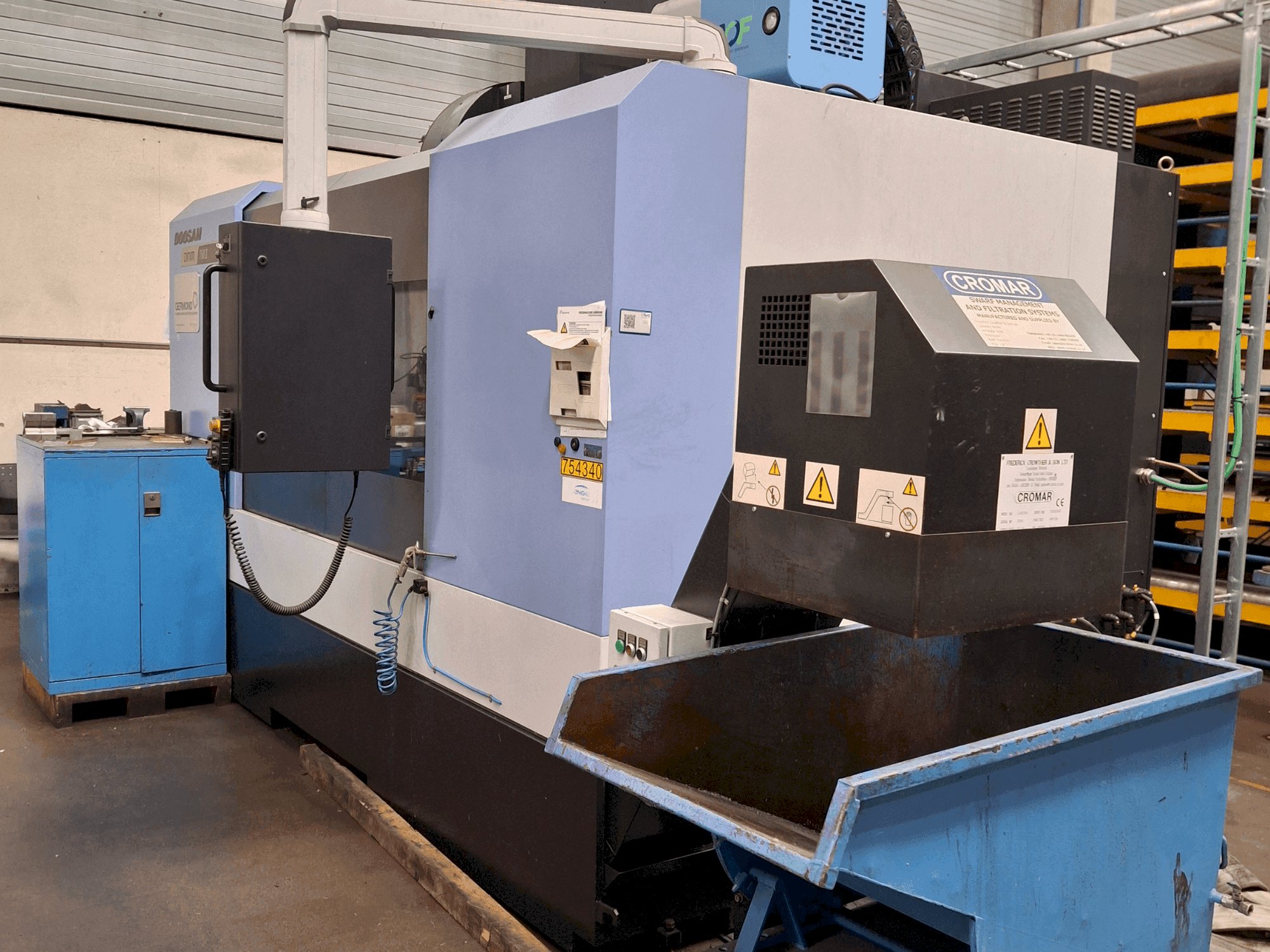

This 3-axis DOOSAN DNM 750 II was manufactured in 2018, featuring a robust vertical machining centre design. It boasts a large X-axis movement of 1630mm, Y-axis of 762mm, and Z-axis of 650mm. Equipped with a high-speed spindle at 12,000 RPM and a BT40 toolholder, it includes an ATC with 30 positions. Consider the opportunity to buy this DOOSAN DNM 750 II vertical machining centre. Contact us for more information about this machine.
Overview
- brand: DOOSAN
- year: 2018
- MODEL: DNM 750 II
- application type: Milling
- Location: Belgium
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - DOOSAN DNM 750 II
Control Unit
- Control Brand: SIEMENS
- Control Model: 828D
Dimensions
- Machine Depth: 3850 mm
- Machine Height: 3170 mm
- Machine Weight: 13500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1630 mm
- Y-axis Travel: 762 mm
- Z-axis Travel: 650 mm
Technical Specification
- Spindle Speed: 12000 RPM
Additional Information
Distance between table and spindle nose: 150–800 mm
ATC: 30 positions
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
