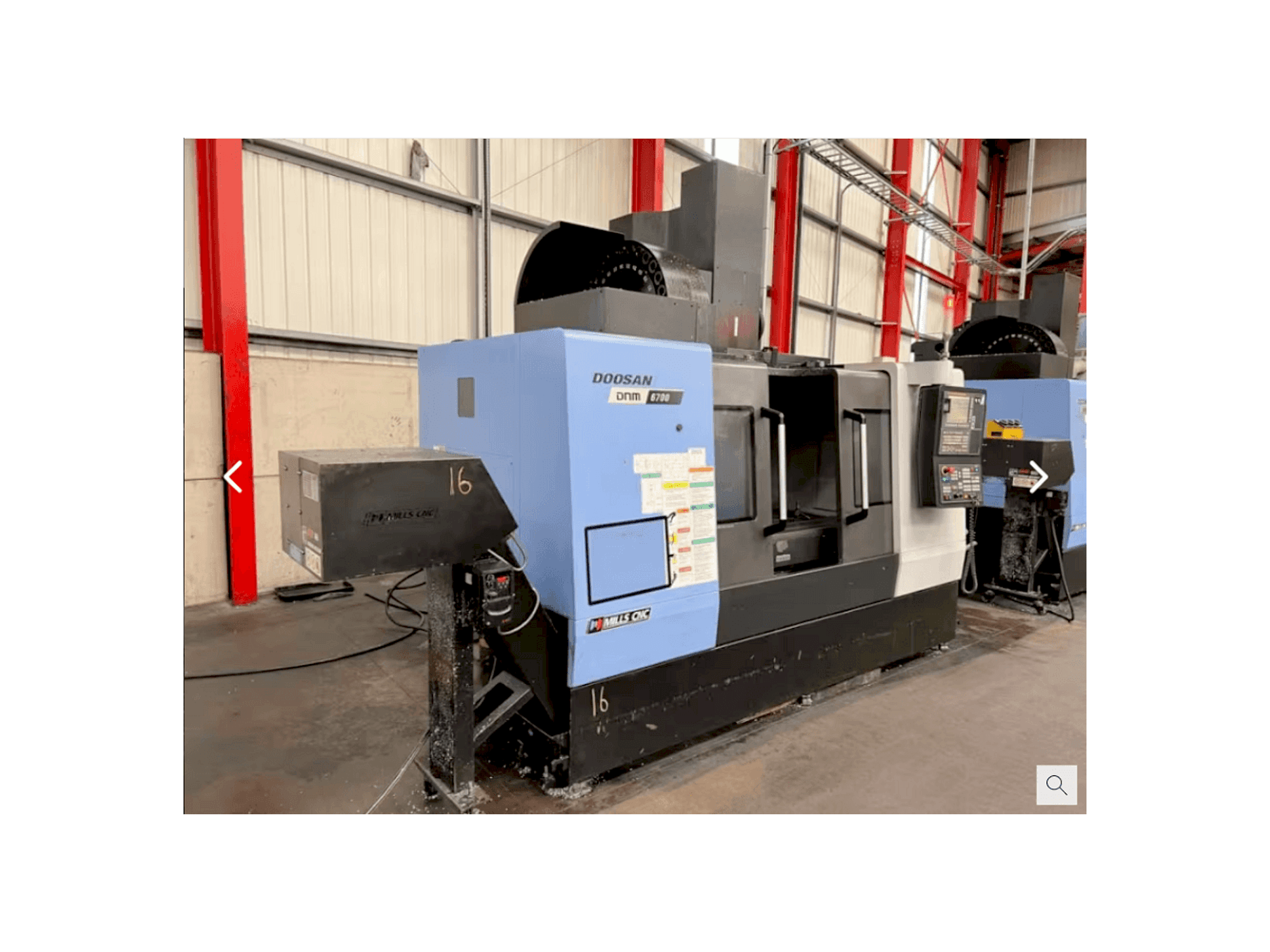

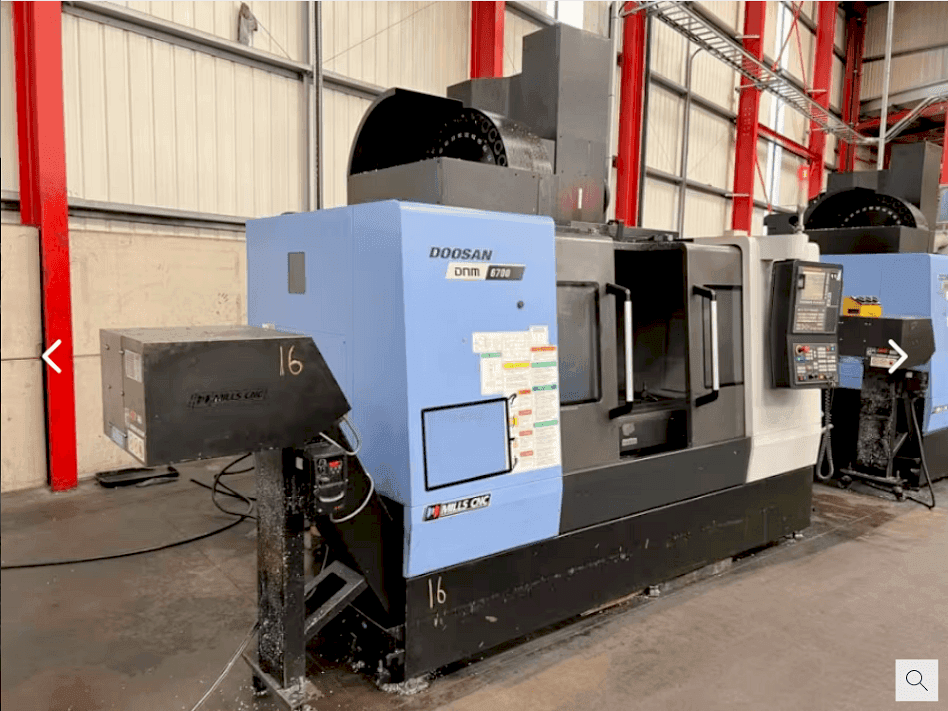

Front view of Doosan DNM 6700  machine

DOOSAN DNM 6700

DOOSAN - DNM 6700

2016

Rs. 6,459,050

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Doosan DNM 6700 Vertical Machining center was manufactured in the year 2016 in South Korea. It is equipped with a Doosan Fanuc i-Series control unit and has 3 axis. The machine has a spindle speed of 12000 rpm.

Overview

  • brand: DOOSAN
  • year: 2016
  • MODEL: DNM 6700
  • application type: Milling
  • Location: United Kingdom
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: Doosan Fanuc
  • GINDUMAC ID: GB-MIL-DOO-2016-00003

Technical Information

General Data

  • Measurements width: 4342 mm
  • Measurements depth: 2415 mm
  • Measurements height: 3100 mm
  • Machine weight: 8500 kg

Control Unit

  • Brand: Doosan Fanuc
  • Model: i Series

Main drive

  • Number of spindles: 1
  • Spindle speed range: 12000 1/MIN
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1300 mm
  • Y-AXIS Movement: 670 mm
  • Z-AXIS Movement: 625 mm

Tools

  • Slots in storage: 30
  • Max weight: 8 kg
  • Max tool diameter: 80/125 mm
  • Max tool length: 300 mm
  • Type of tool holder: BT 40

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Rapid feedrates: xyz: 36 x36 x 30m/minute
      • - Min-max height under spindle 150-775 mm
      • - Tool change time (chip to chip): 3. 2 seconds
      • - Spindle motor power 18. 5 kw
      • - Through spindle coolant
      • - Coolant
      • - Remote hand wheel, usb port
    • Qualitative Machine Benefits:
      • - Good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
