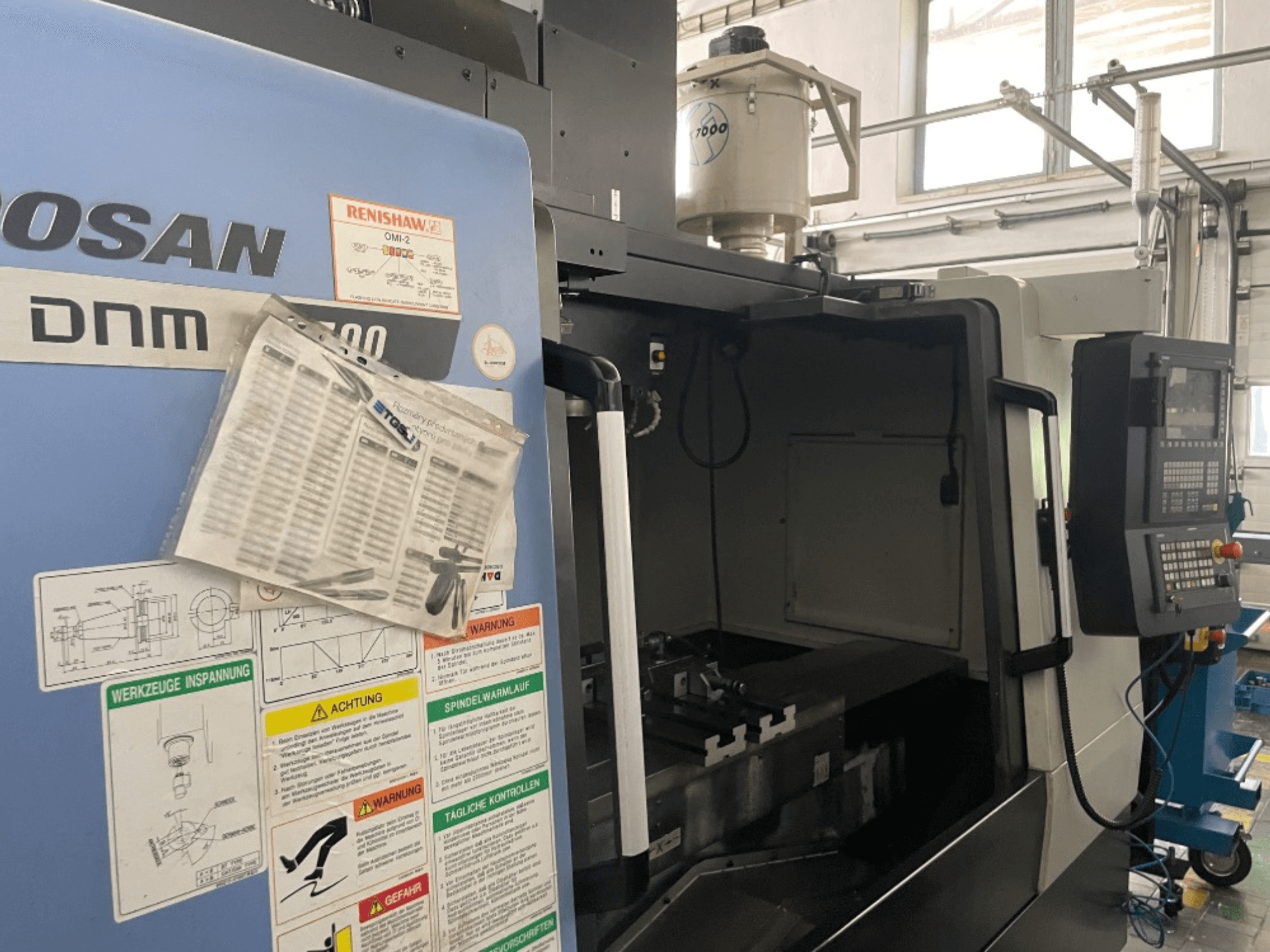

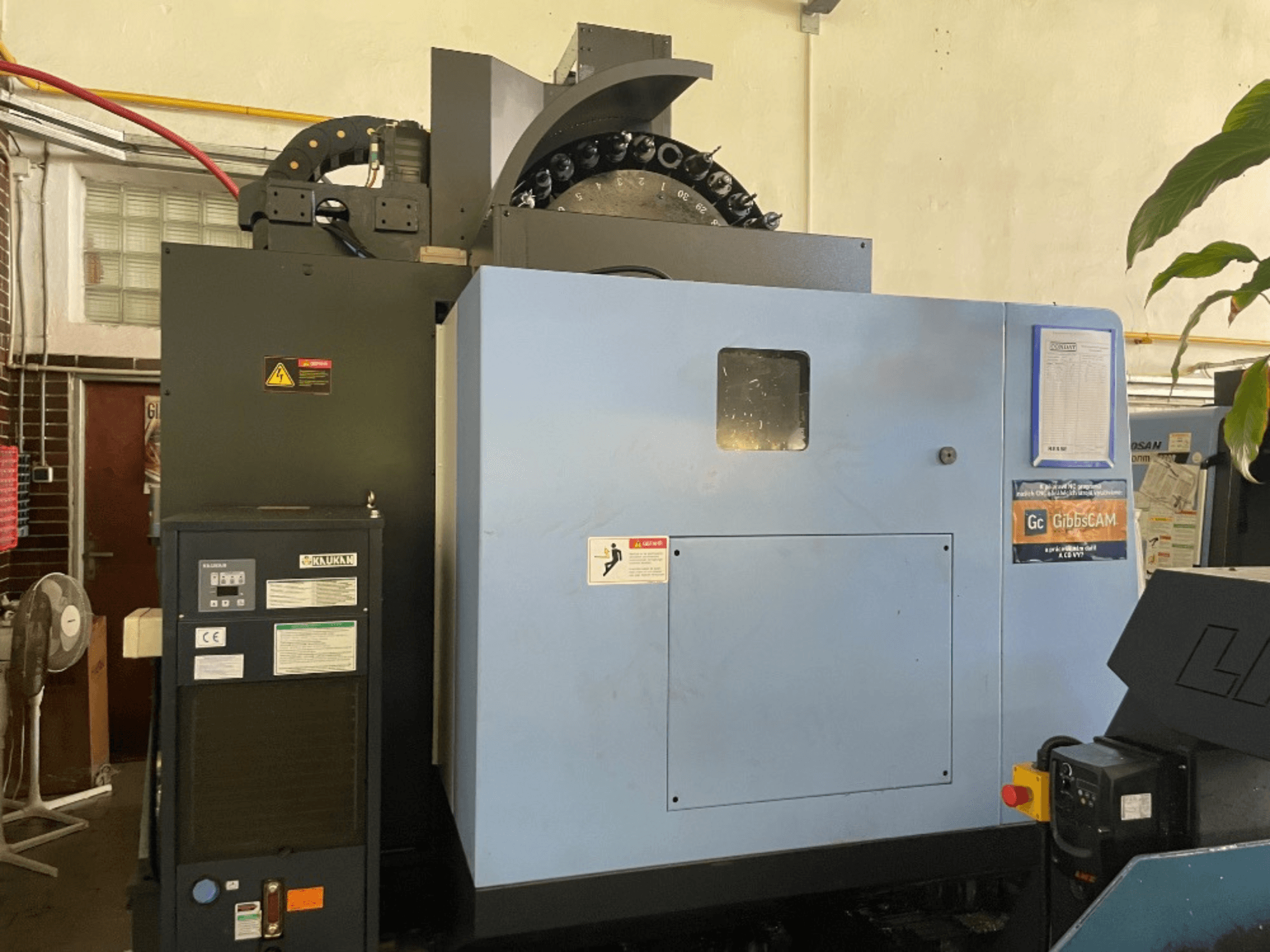

This 3-axis DOOSAN DNM 5700 was manufactured in 2017. It features an X-axis travel of 1050 mm, Y-axis travel of 570 mm, and Z-axis travel of 510 mm. The machine is equipped with a powerful 18.5 kW spindle and a table size of 1300 × 570 mm, allowing for efficient machining operations. If you are looking to get high-quality machining capabilities, consider the DOOSAN DNM 5700 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2017
- MODEL: DNM 5700
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - DOOSAN DNM 5700
Control Unit
- Control Brand: SIEMENS
- Control Model: 828
Dimensions
- Table Load: 1000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1050 mm
- Y-axis Travel: 570 mm
- Z-axis Travel: 510 mm
Technical Specification
- Spindle Power: 18.5 kW
- Spindle Speed: 12000 RPM
- Taper Size: ISO 40
Additional Information
Table size: 1300 × 570 mm
Tool changer: 30 positions
CNC control: Siemens 828
Condition: Very good; regularly maintained
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
