➤ Used DOOSAN DNM 4500 For Sale | gindumac.com

Show in original language

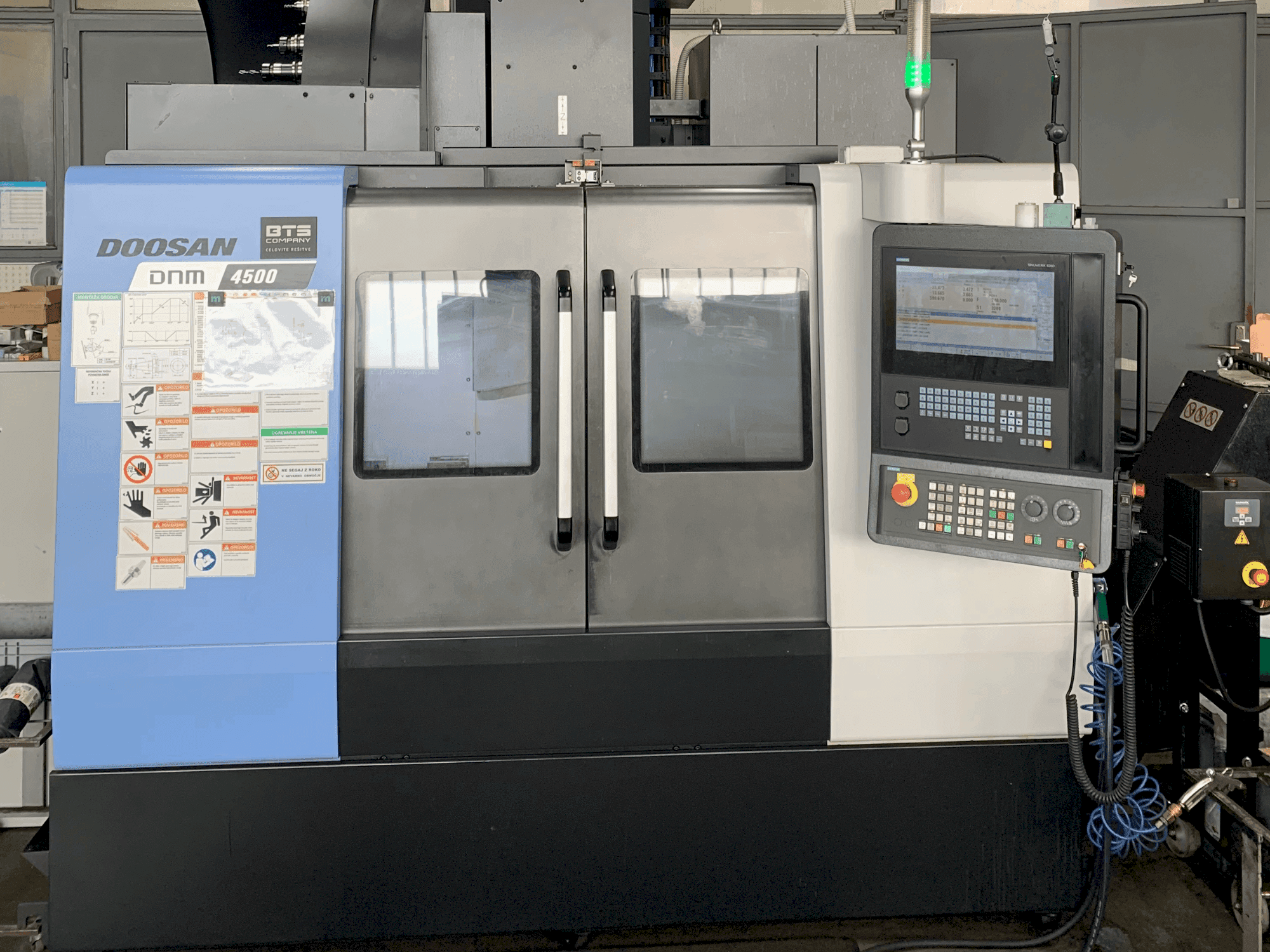

This 3-axis DOOSAN DNM 4500 vertical machining center was manufactured in 2020. It features a SIEMENS 828 D CNC controller, with X-axis travel of 800 mm, Y-axis travel of 450 mm, and Z-axis travel of 510 mm. The spindle operates at 12,000 rpm with a drive power of 16.5 kW. It includes a tool magazine with 30 slots and additional equipment like a chip conveyor and an electronic handwheel. Contact us for more information about this machine.

Overview

brand: DOOSAN
year: 2020
MODEL: DNM 4500
production hours: 2850
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - DOOSAN DNM 4500

General Data

Measurements width: 2615 mm
Measurements depth: 2158 mm
Measurements height: 2985 mm
Machine weight: 5000 kg

Control Unit

Brand: SIEMENS

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 800 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 450 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Rapid traverse: 30 m/min

Workpiece

Workpiece weight: 600 kg

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 125 mm/80 mm
Max tool length: 300 mm
Type of tool holder: BT 40

Media

Chip conveyor: Yes

Additional equipment

- Electronic Handwheel
- Chip conveyor
- Oil skimmer
- Emulsion flushing gun
- 2 x Hydraulic vice
- 25 x Clamping chuck BT40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table dimensions: 1000 x 450 mm
- - Distance spindle nose - table surface: 150 - 775 mm
- - Max. Tool diameter with free neighboring places: 125 mm
- - Max. Tool diameter with occupied neighboring places: 80 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
