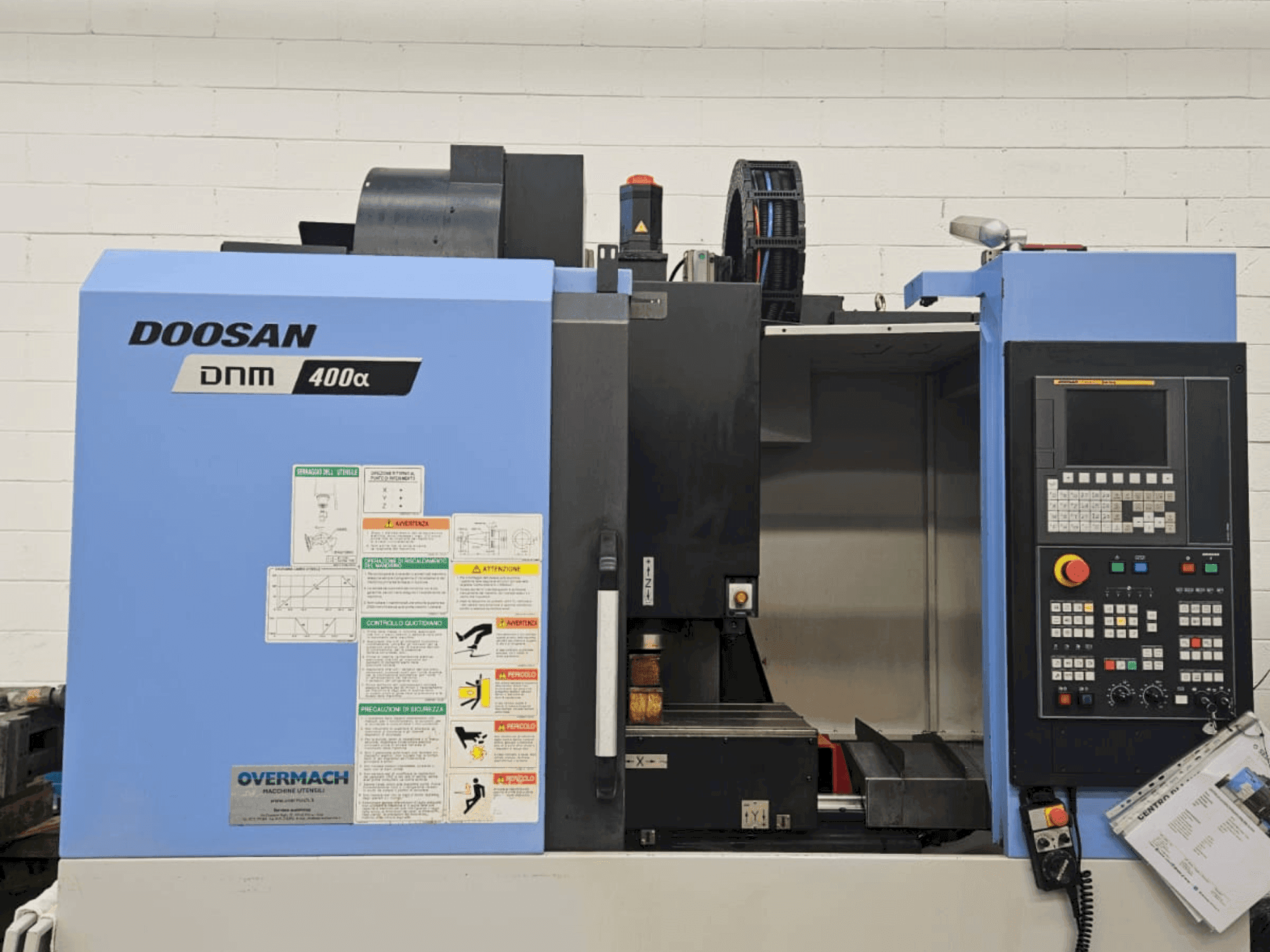

Front view of DOOSAN DNM 400 alpha machine
Front view of DOOSAN DNM 400 alpha machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

DOOSAN - DNM 400 alphaIT-MIL-DOO-2018-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis DOOSAN DNM 400 alpha vertical machining centre was manufactured in 2018. It features a FANUC CNC system, rapid traverse speeds up to 30 m/min, and a maximum spindle speed of 8,000 rpm. The machine can handle a maximum load of 400 kg with a table surface of 790 x 435 mm. If you are looking to get high-quality milling capabilities, consider the DOOSAN DNM 400 alpha machine we have for sale. Contact us for more information.

Overview

  • brand: DOOSAN
  • year: 2018
  • MODEL: DNM 400 alpha
  • production hours: 5490
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - DOOSAN DNM 400 alpha

Control Unit

  • Control Brand: FANUC
  • Control Model: i Series

Dimensions

  • Machine Depth: 2316 mm
  • Machine Height: 2201 mm
  • Machine Weight: 5000 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 635 mm
  • Y-axis Travel: 435 mm
  • Z-axis Travel: 510 mm

Technical Specification

  • Max. Tool Weight: 8 kg
  • Number of Tools: 20
  • Spindle Power: 7.5 kW
  • Spindle Speed: 8000 RPM

Additional Information

Additional equipment

  • Manuals and CE Declaration of Conformity included.

Machine Benefits

Technical Machine Benefits

  • Maximum torque: 71. 4 nm
  • Max. Cutting feedrate: 1000–15000 mm/min
  • Positioning accuracy: ±0. 005 mm
  • Repeatability: ±0. 002 mm
  • Surface type: t-slot
  • Spindle nose to table surface distance: 150–660 mm
  • Table surface dimensions: 790 x 435 mm
  • Tool-to-tool time: 1. 3 seconds

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
