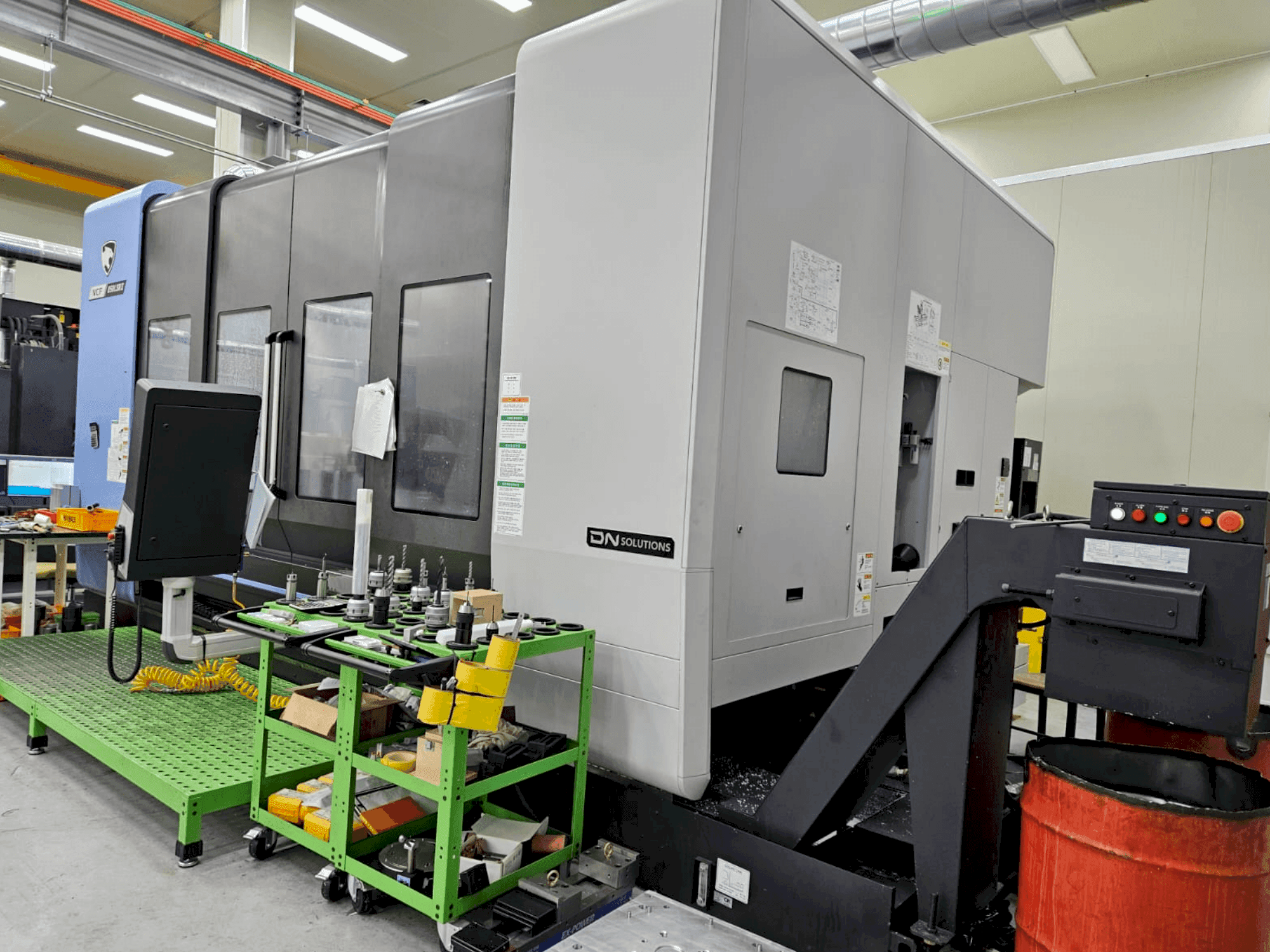

Front view of DN SOLUTIONS VCF 850LSRII  machine

DN SOLUTIONS VCF 850LSRII

DN SOLUTIONS - VCF 850LSRII

2022

Rs. 24,000,100

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DOOSAN VCF 850LSRII Vertical Machining center was manufactured in the year 2022 in South Korea. It is equipped with a 3,000 mm X-axis travel and controlly by a FANUC 31iB5 Plus control unit. The machine has 5-axis with a spindle speed of 12000 rpm. It is like new as only operated for 758 cutting hours. The VCF series is a perfect solution for multi-purpose machining for supreme rigidity. Machine has CE Conformity. See photo and video gallery for more impressions.

Overview

  • brand: DN SOLUTIONS
  • year: 2022
  • MODEL: VCF 850LSRII
  • production hours: 758
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: FANUC
  • GINDUMAC ID: DE-MIL-DN -2022-00001

Technical Information

General Data

  • Measurements width: 5440 mm
  • Measurements depth: 3795 mm
  • Measurements height: 3253 mm
  • Machine weight: 24000 kg

Control Unit

  • Brand: FANUC
  • Model: 31iB5 Plus

Main drive

  • Spindle speed range: 12000 1/MIN
  • Spindle motor power: AB112LL/15000_22/18.5 KW
  • Number of axis: 5

Movement

  • X-AXIS Movement: 3000 mm
  • X-AXIS Rapid traverse: 40 m/min
  • Y-AXIS Movement: 850 mm
  • Y-AXIS Rapid traverse: 40 m/min
  • Z-AXIS Movement: 800 mm
  • Z-AXIS Rapid traverse: 40 m/min

Workpiece

  • Workpiece weight: 3500 kg

Table

  • Inner length: 3500 mm
  • Inner width: 870 mm

Tools

  • Slots in storage: 30

Media

  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional equipment

    • - Chip conveyor (Right side_hinged type)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Linear scale : x, y, z, b, c
        • - 4 axis head tilting unit : 220 degree
        • - Rotary table : built in type d800mm
        • - Built-in spindle type
        • - Spindle head cooling system
        • - Ts27r_renishaw
        • - Ikc ready: renishaw (rmi-q) + s/w omp60 full set
        • - Datum ball_d25
        • - Flushing coolant
        • - Flood coolant pump : 1. 1 kw_0. 7 mpa
      • Qualitative Machine Benefits:
        • - Ihmi (ez i & machining cycle)
        • - Power on time : 2911h
        • - Run time : 857h
        • - Cut time : 758h
        • - Machine has ce conformity

      Extra information

      • - Auto power off // Tool Load Monitoring // Air blower // AICC 200 blocks // Data server 2GB // Program Storage : 10240M(4MB)_1000 EA // Embedded Ethernet // 3D Coordinate Conversion // Bucket // MPG handle // Coolant gun

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
