DN SOLUTIONS PUMA GT2100M

Photo Gallery

DN SOLUTIONS - PUMA GT2100MDE-TUR-DNS-2022-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DN SOLUTIONS PUMA GT2100M For Sale | gindumac.com

Show in original language

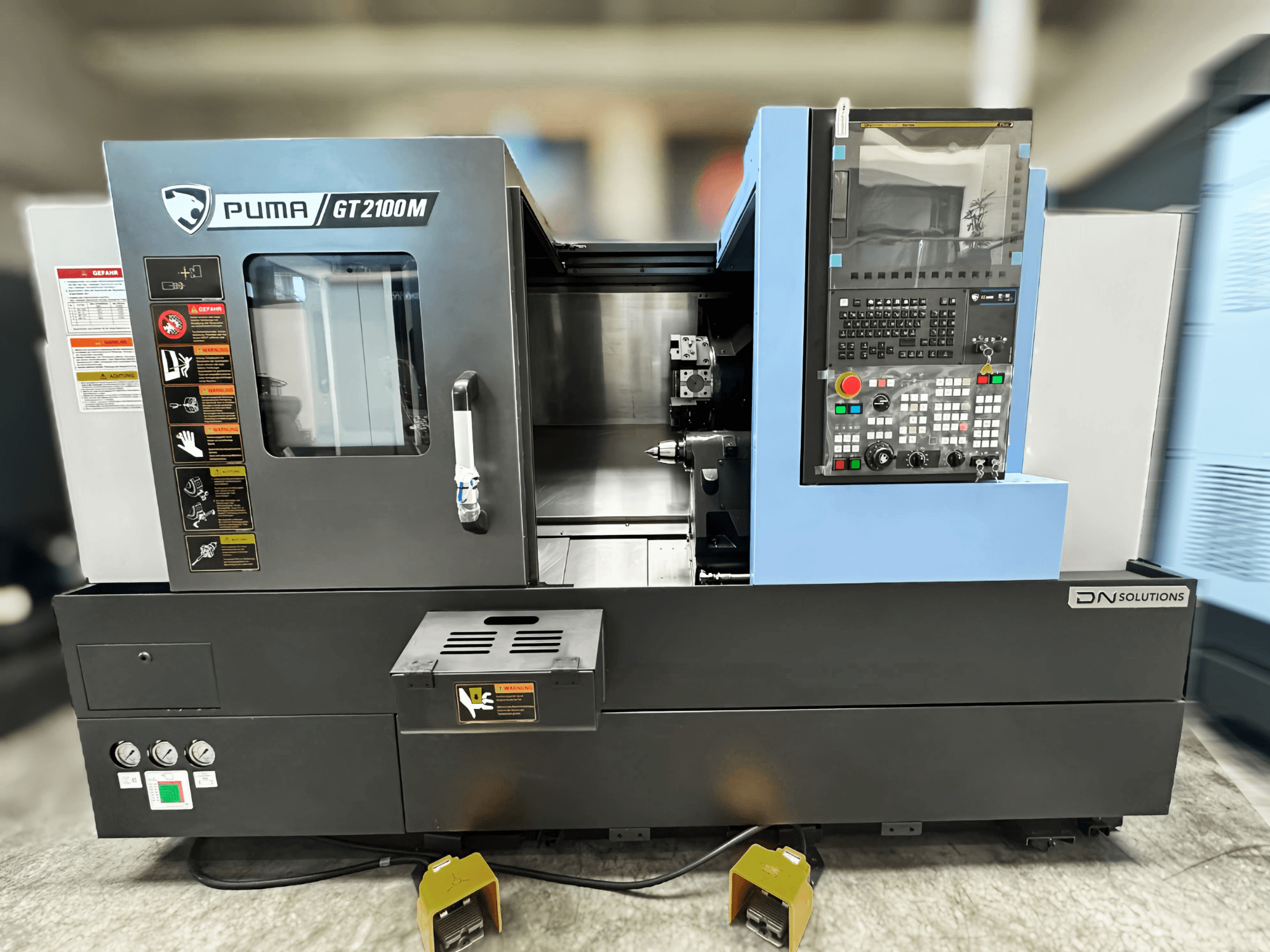

This 3-axis DN SOLUTIONS PUMA GT2100M was manufactured in 2022. As new, showroom model. It features a maximum spindle speed of 4,500 RPM and a robust turret with 12 stations. The machine is designed for high-precision turning and milling, with an X travel of 230 mm and Z travel of 580 mm. If you are looking to get high-quality turning capabilities, consider the DN SOLUTIONS PUMA GT2100M turn-mill centre we have for sale. Contact us for further details.

Overview

brand: DN SOLUTIONS
year: 2022
MODEL: PUMA GT2100M
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DN SOLUTIONS PUMA GT2100M

Control Unit

Control Brand: FANUC
Control Model: 0i-F Plus

Dimensions

Machine Height: 1759 mm
Machine Length: 2941 mm
Machine Width: 1632 mm

Movement

Number of Axes: 3
X-axis Travel: 230 mm
Z-axis Travel: 580 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Power: 18.5 kW
Spindle Speed: 4500 RPM

Additional Information

As new, showroom model
Chuck size: 8" (204)
Bar capacity: 65 mm
Rapid traverse (X/Z): 24 / 30 m/min
Turret: 12 stations, BMT 55 interface
Guideway type: Box guideway
Cooling system: Coolant pump 7 bar
Monitoring: Load monitoring
Design: Box-guided horizontal turning center with high torque
Performance: Optimized for stable and high-precision machining
Construction: High-speed turret and rigid spindle design

Additional equipment

Oil skimmer (filtration)
3-color signal light (automation)
Optional: Chip conveyor (hinge belt conveyor). Price on request
Machine is delivered with standard basic package: Turret fully equipped, base holder included.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
