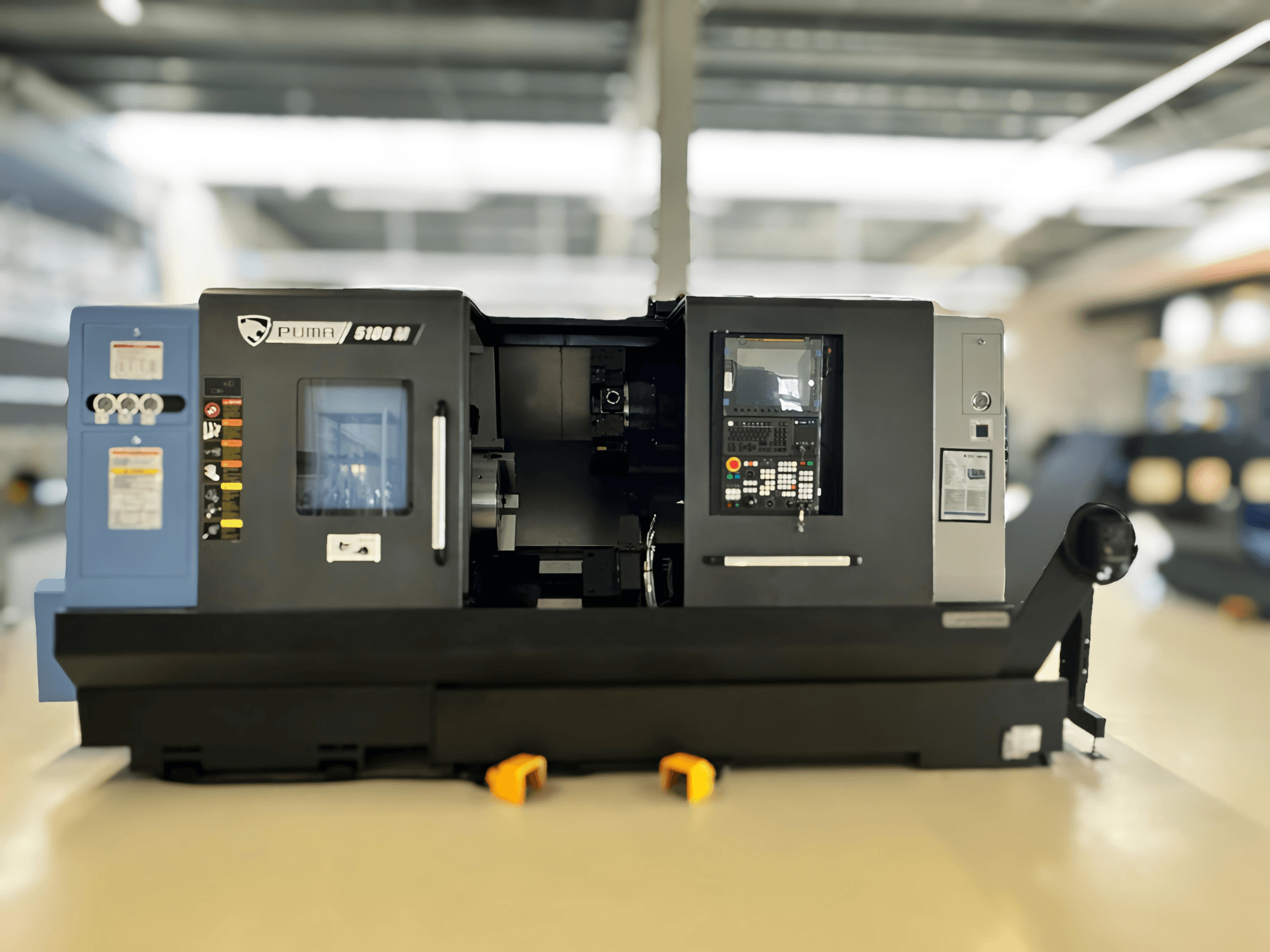

DN SOLUTIONS - PUMA 5100 MBDE-TUR-DNS-2023-00003

• Main spindle chuck size: 21 inch (535 mm)

• Bar capacity: 166 mm

• Rapid traverse X: 16 m/min

• Rapid traverse Z: 20 m/min

• Max rapid traverse: 20 m/min

• Main spindle torque: 2957 Nm

• Max turning diameter: 650 mm

• Max turning length: 952 mm

• Driven tools speed: 4000 rpm

• Number of tool stations: 12

• Tool interface: BMT75

• Guideway type: Box guideways

• Spindle bore: 117–166 mm (depending on configuration)

• Coolant system: High pressure coolant through turret

• Tailstock: Programmable tailstock

• Tool measurement: Automatic hydraulic tool measurement

• Cutting force monitoring: Yes

• Thread cutting: Fixed entry point with variable speed

• Additional handwheel: Yes

• Automatic machine door: Yes

• Electrical connection: 380 V

• Electrical supply: 3 phase

• Frequency: 50 / 60 Hz

• Rated power: 61.56 kVA

• Full load current: 93.53 A

• Short circuit capacity: 10 kA

• Interrupting capacity: 5 kA

Additional equipment

• Optional:

• 4 pcs. External clamping piece (500-0838)

• 1 pc. Raised external tool holder

• 1 pc. Face turning tool holder R/L

• 6 pcs. Internal turning tool holders

• 1 pc. Internal end cap (500-0839)

• 1 pc. Boring reducing sleeve set

• 1 pc. U-Drill reducing sleeve set

• 2 angled externally cooled external tool holders Eppinger

• 2 straight externally cooled external tool holders Eppinger

• Optional: Chip conveyor (hinge belt conveyor). Price on request.

• Machine is delivered with a standard basic package: Turret fully equipped, base holder included
