DN SOLUTIONS LYNX 2100GA

Photo Gallery

DN SOLUTIONS - LYNX 2100GADE-TUR-DOO-2021-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DN SOLUTIONS LYNX 2100GA For Sale | gindumac.com

Show in original language

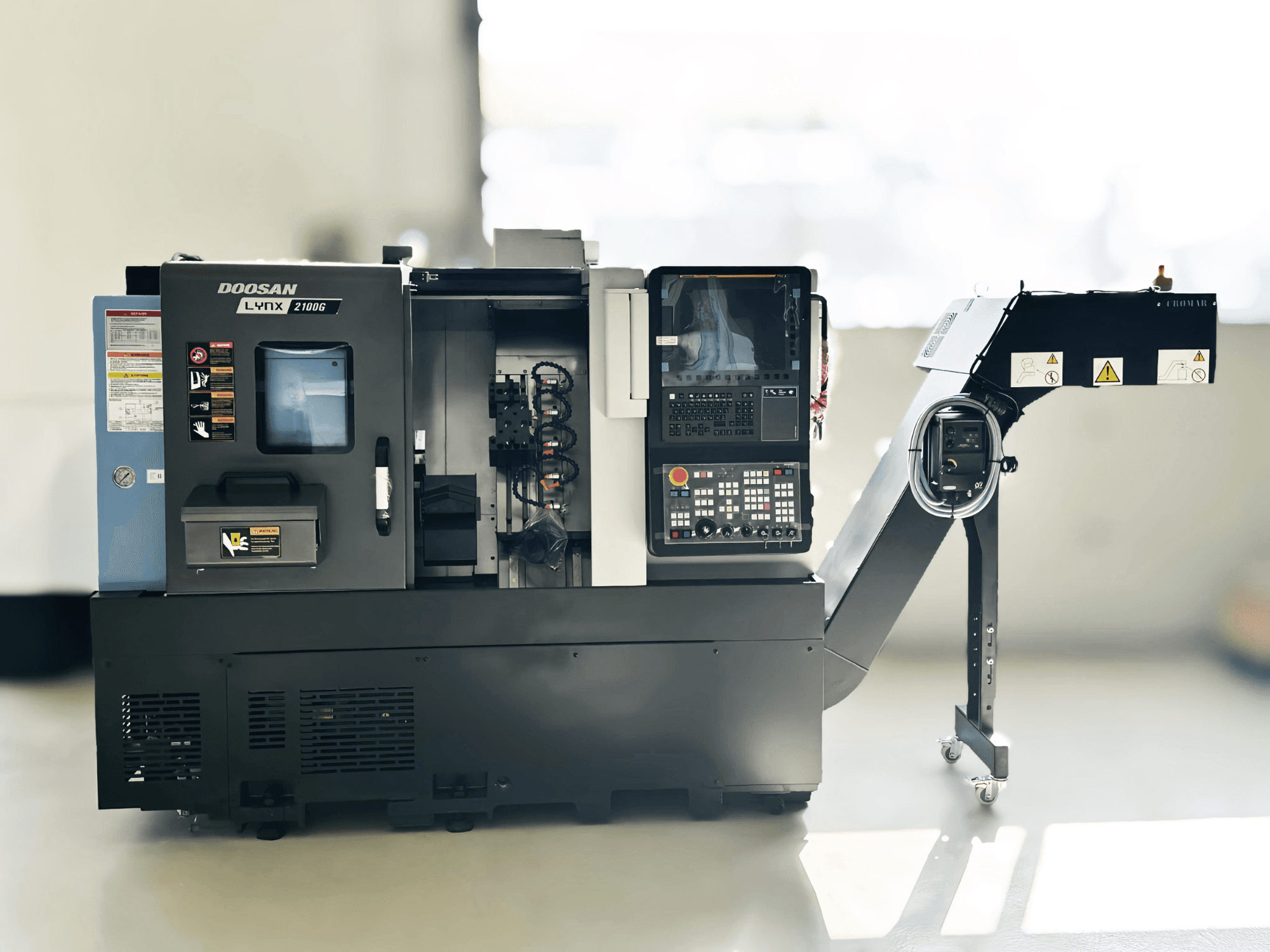

This 4-axis DN SOLUTIONS LYNX 2100GA was manufactured in 2021. As new, showroom model. It features a maximum spindle speed of 6,000 RPM and a bar capacity of 45 mm. The machine is designed for high-performance compact turning, optimized for small precision parts. If you are looking to get high-quality turning capabilities, consider the DN SOLUTIONS LYNX 2100GA horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: DN SOLUTIONS
year: 2021
MODEL: LYNX 2100GA
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DN SOLUTIONS LYNX 2100GA

Control Unit

Control Brand: FANUC
Control Model: 0i-F

Dimensions

Machine Height: 1935 mm
Machine Length: 2090 mm
Machine Width: 1400 mm

Movement

Number of Axes: 4
X-axis Travel: 450 mm
Y-axis Travel: 30 mm

Technical Specification

Counter Spindle: No
Max. Bar Diameter: 45 mm
Spindle Power: 18.5 kW
Spindle Speed: 6000 RPM

Additional Information

As new, showroom model
Axis count: 4 (X, Y, Z, C)
- X-axis travel: 450 mm (radial tool movement)
- Z-axis travel: 340 mm (longitudinal part travel)
- Y-axis travel: 30 / 36 mm (vertical travel for off-center milling/drilling)
- C-axis: Spindle rotational positioning and contouring
Chuck size: 6"
Bar capacity: 45 mm
Turret stations: Up to 12
Guideway type: Linear guideway
Cooling system: Coolant pump 7 bar
Tooling: Tool slide for secondary operations
Design: High-performance compact center optimized for small precision parts
Performance: Fast turret indexing and high-rigidity linear guide system

Additional equipment

Chip conveyor
Oil skimmer
Parts catcher with box
Parts ejector
Bar feeder interface
Optional: Chip conveyor (hinge belt conveyor). Price on Request
Machine is supplied with a standard basic package: turret fully equipped, base holder included.
Optional:
1 pc. External Turning Tool Holder Single
1 pc. External Turning Tool Holder Double
2 pcs. Internal Turning Tool Holders
1 pc. Internal Turning Tool Holder Cover
1 pc. Reducing Sleeve Set

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
