DN SOLUTIONS - LYNX 2100LMSA HU-TUR-DOO-2022-00002

Name: DN SOLUTIONS LYNX 2100LMSA
Brand: DN SOLUTIONS
SKU: HU-TUR-DOO-2022-00002
Price: 13371914 INR
Availability: InStock

Rs. 13,371,914

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DN Solutions LYNX 2100LMSA For Sale | gindumac.com

Show in original language

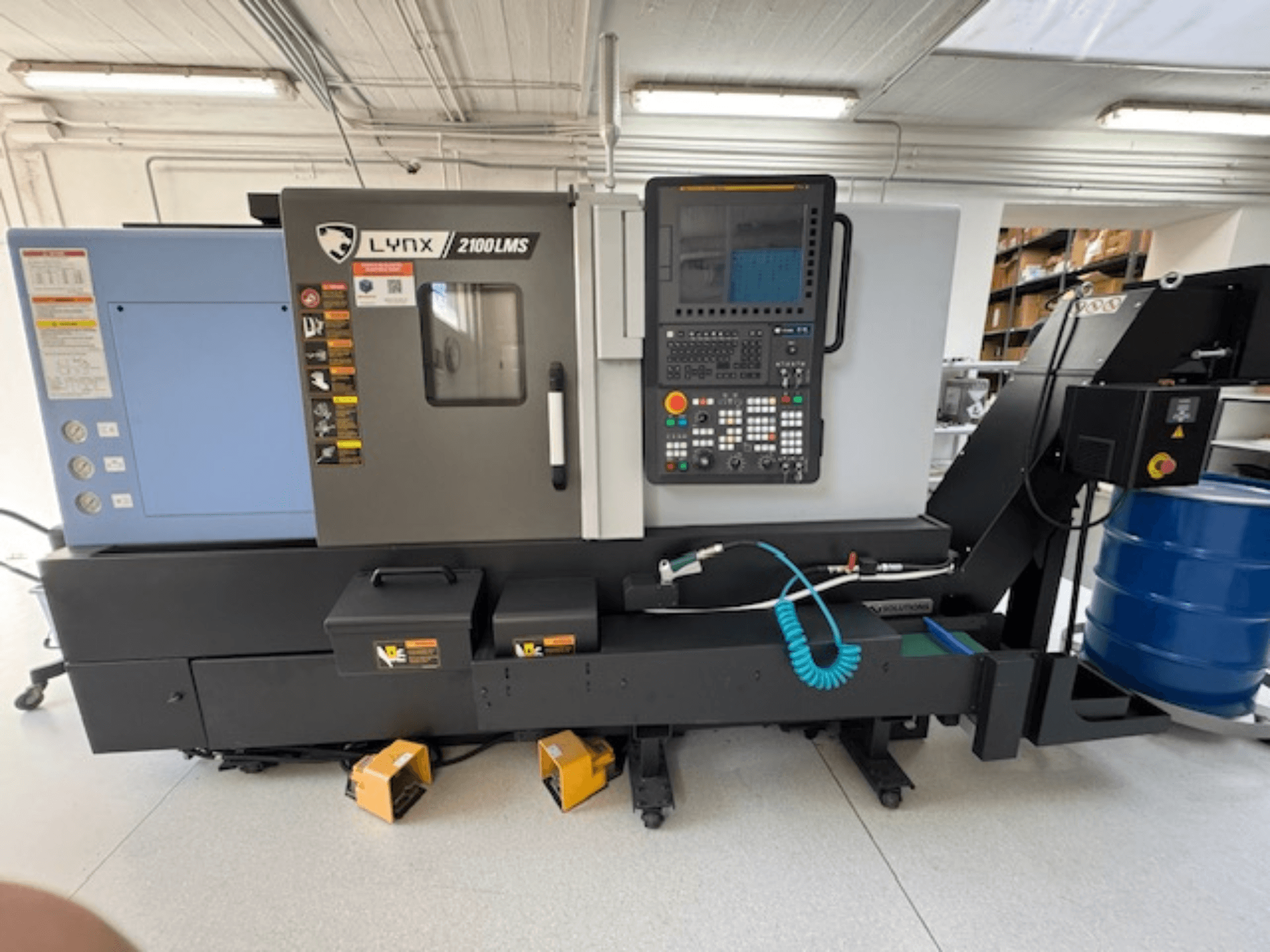

This 3-axis DN solutions LYNX 2100LMSA was manufactured in 2022. It features a maximum turning diameter of 300 mm and a turning length of 510 mm. The machine includes a 6-inch chuck size, a 12/24 station turret, and a sub-spindle for enhanced capabilities. If you are looking to get high-quality turning capabilities, consider the DN Solutions LYNX 2100LMSA horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: DN SOLUTIONS
year: 2022
MODEL: LYNX 2100LMSA
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DN SOLUTIONS LYNX 2100LMSA

Control Unit

Control Brand: FANUC
Control Model: 0i PLUS

Dimensions

Machine Height: 1693 mm
Machine Length: 2805 mm
Machine Weight: 3600 kg
Machine Width: 1595 mm

Movement

Number of Axes: 3
X-axis Travel: 205 mm
Z-axis Travel: 560 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Spindle Power: 15 kW
Spindle Speed: 6000 RPM

Additional Information

Condition: New, 0 operating hours
Control unit: FANUC 0i PLUS with 15” touchscreen

Capacity

Chuck size: 6 inch
Max. turning diameter: 300 mm
Max. turning length: 510 mm

Axes / Travels

X-Axis rapid traverse: 30 m/min
Z-Axis rapid traverse: 36 m/min
Number of linear axes: 2 (X / Z)
C-axis: Spindle positioning for milling and drilling operations

Main spindle

Max. spindle torque: 127 Nm

Sub-spindle

Sub-spindle: Yes
Max. sub-spindle speed: 6,000 rpm

Turret

Turret stations: 12 / 24
Rotary tool speed: 6,000 rpm

Integrated options

Automatic tool setter
High-pressure coolant system: 7 bar

Additional equipment

Chip conveyor
Robot interface
Automatic door
Parts catcher with conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
