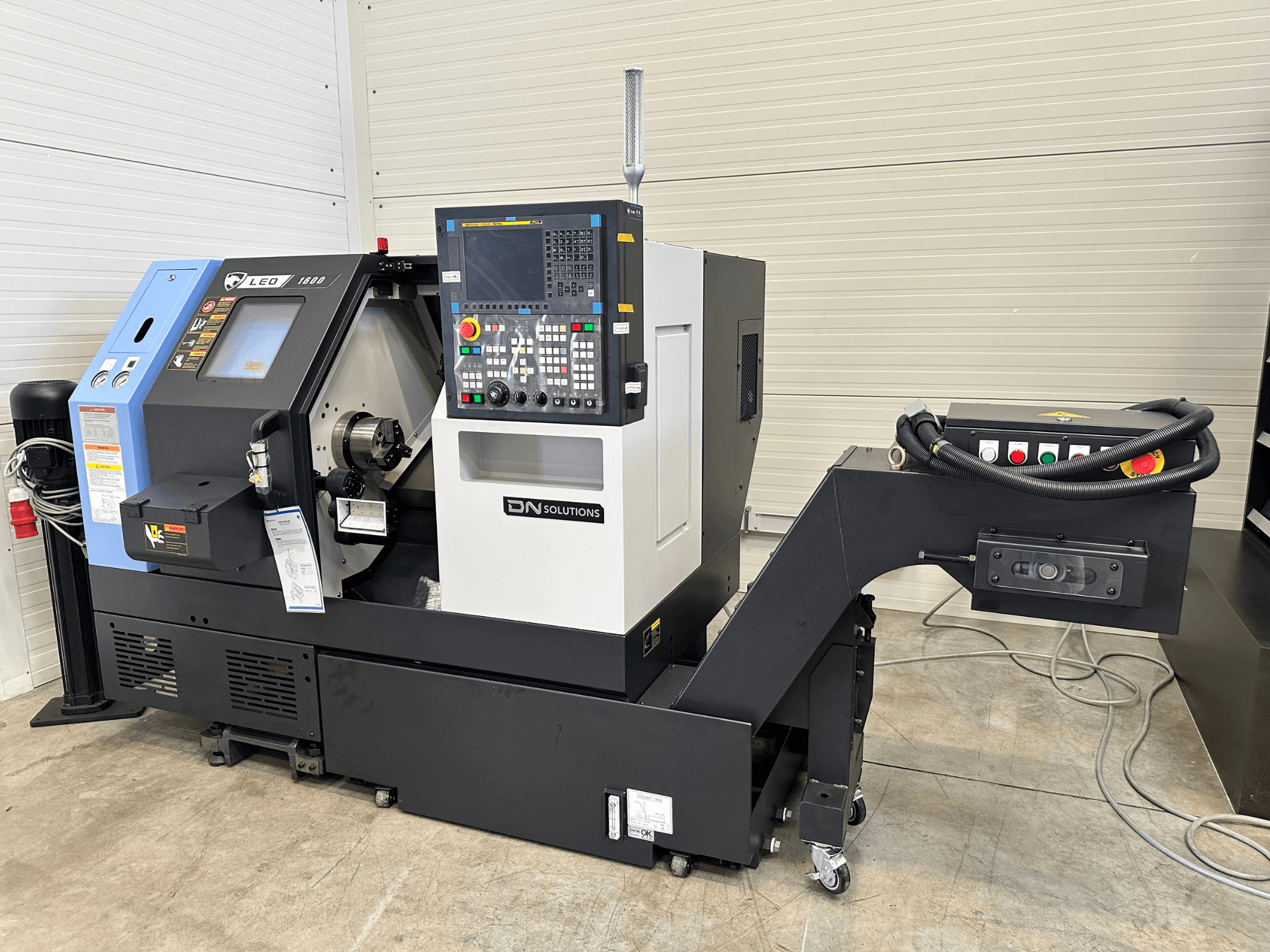

This 3-axis DN SOLUTIONS Leo 1600 turn-mill centre was manufactured in 2023. It features a maximum turning diameter of 320 mm and a turning length of 303 mm. The machine is equipped with a 6-inch main spindle chuck and offers a rapid traverse speed of 30 m/min in both X and Z axes. If you are looking to get high-quality turning capabilities, consider the DN SOLUTIONS Leo 1600 machine we have for sale. Contact us for further details.
Overview
- brand: DN SOLUTIONS
- year: 2023
- MODEL: Leo 1600
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - DN SOLUTIONS Leo 1600
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Height: 1635 mm
- Machine Length: 1850 mm
- Machine Weight: 2600 kg
- Machine Width: 1690 mm
Movement
- Number of Axes: 3
- X-axis Travel: 175 mm
- Z-axis Travel: 330 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Power: 7.5 kW
- Spindle Speed: 4000 RPM
Additional Information
Main spindle chuck size: 6 inch (153 mm)
Bar capacity: 45 mm
Rapid traverse X: 30 m/min
Rapid traverse Z: 30 m/min
Main spindle torque: 72 Nm
Max turning diameter: 320 mm
Max turning length: 303 mm
Number of tool stations: 12
Guideway type: Linear guideways
Monitor size: 10.4 inch
Electrical connection: 380 V
Electrical supply: 3 phase
Frequency: 50 / 60 Hz
Rated power: 14.97 kVA
Full load current: 22.74 A
Short circuit capacity: 10 kA
Interrupting capacity: 5 kA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
