- ➤ Used DMG MORI Sprint 42/10 linear | Swiss Type Lathe

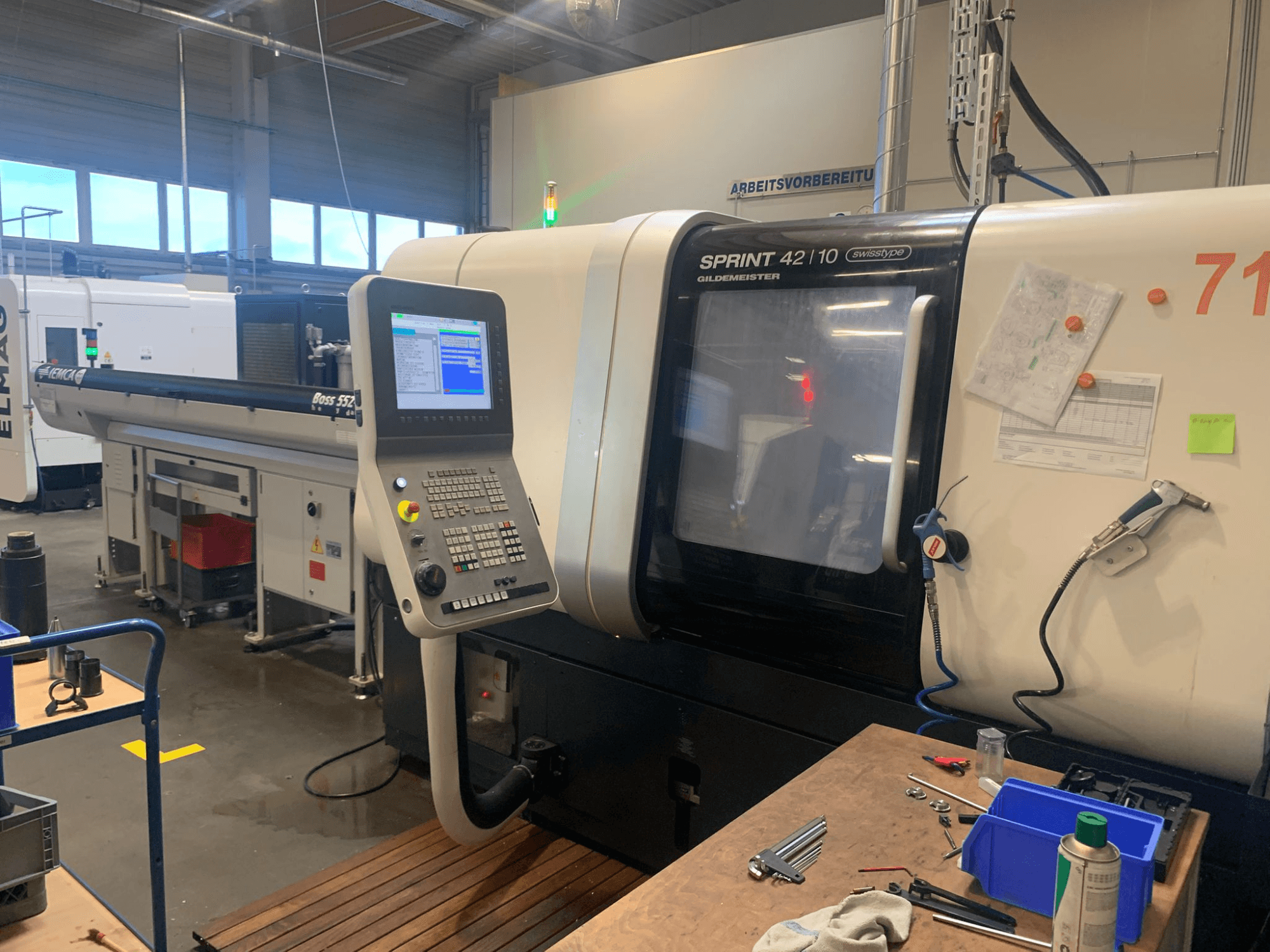

This 10-axis DMG MORI Sprint 42/10 linear was manufactured in 2021. It features a maximum spindle speed of 6500 1/min and includes a high-pressure cooling system of 20 bar. The machine is equipped with a bar feeder of 3200 mm length and offers advanced capabilities for precision turning. If you are looking to get high-quality turning capabilities, consider the DMG MORI Sprint 42/10 linear machine we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2021
- MODEL: Sprint 42/10 linear
- application type: Turning
- Location: Austria
- machine type: Swiss Type Turning Machine
- control unit brand: MITSUBISHI
Technical Information - DMG MORI Sprint 42/10 linear
Control Unit
- Control Brand: MITSUBISHI
- Control Model: M730UM
Dimensions
- Machine Weight: 6000 kg
Movement
- Number of Axes: 10
- X-axis Travel: 50 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Max. Bar Diameter: 42 mm
- Spindle Speed: 6500 RPM
- Through-spindle Coolant: Yes
Additional Information
Maximum Speed Spindle 1: 6500 1/min
Maximum Speed Spindle 2: 6500 1/min
Electrical Phases: L1,L2,L3,N,PE
Power Consumption: 57 kVA
Maximum Input Current: 82 A
Main Fuse: 100 A
Short Circuit Rating: 5 kA
Maximum Voltage: 440 V
Operating Voltage: 400 V
Voltage Tolerance: ±10%
Frequency: 50 Hz
AC Voltage: 230 V
DC Voltage: 24 V
Counter Spindle Flushing: Included
Counter Spindle Inner Cooling: Included
Main Spindle Inner Cooling: Included
Radial Driven Drilling and Milling Unit for Revolver: Included
Axial Driven Drilling and Milling Unit for Revolver: Included
Angular Adjustable Driven Drilling and Milling Unit: Included
High Pressure Cooling System: 20 bar
Bar Feeder: IEMCA BOSS 552
Bar Feeder Length: 3200 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
