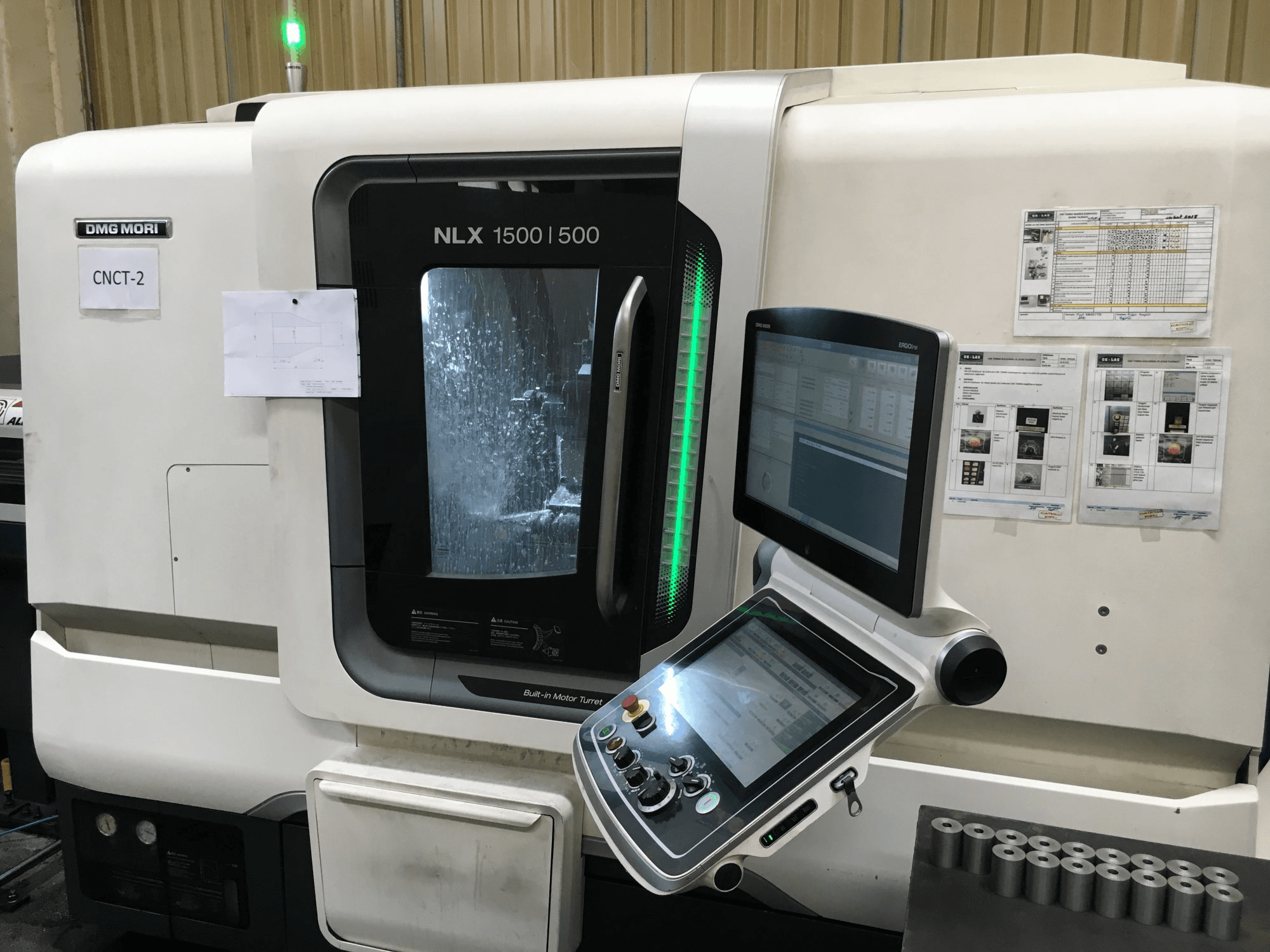

Front view of DMG MORI NLX 1500 SY/500 Machine
Front view of DMG MORI NLX 1500 SY/500 Machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

DMG MORI - NLX 1500 SY/500TR-TUR-DMG-2015-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DMG MORI NLX 1500 SY/500 Lathe from 2015 was manufactured in Japan and counts a total of only 2083 production hours. Equipped with a CELOS M730UM Control unit, this high efficient model is equipped with 2 spindles, 5 live tools as well a bar feeder. A successful accuracy test was carried out on this machine in 2015 in which all tolerance limits were adhered to. Results are available upon request.

Overview

  • brand: DMG MORI
  • year: 2015
  • MODEL: NLX 1500 SY/500
  • production hours: 2083
  • application type: Turning
  • Location: Turkey
  • machine type: Turn-Mill Centre

Technical Information - DMG MORI NLX 1500 SY/500

General Data

  • Measurements width: 3600 mm
  • Measurements depth: 2100 mm
  • Measurements height: 2200 mm
  • Machine weight: 5400 kg

Control Unit

  • Model: M730UM

Main drive

  • Number of spindles: 2
  • Spindle speed range: 6000-10000 1/min

Movement

  • X-AXIS Movement: 260 mm
  • Y-AXIS Movement: 100 (+/- 50) mm
  • Z-AXIS Movement: 590 mm

Workpiece

  • Workpiece drm: 366 mm
  • Workpiece x: 515 mm

Turret

  • Number of turrets: 1

Media

  • Main electronic connection: 200 V / 50 Hz
  • Power consumption: 32 kVA
  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional equipment

    • - LNS ALPHA SL65 S Bar Feeder
    • - 5x Live Tools

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
