DMG MORI NHX 4000

Photo Gallery

DMG MORI - NHX 4000DE-MIL-DMG-2020-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI NHX 4000 For Sale | gindumac.com

Show in original language

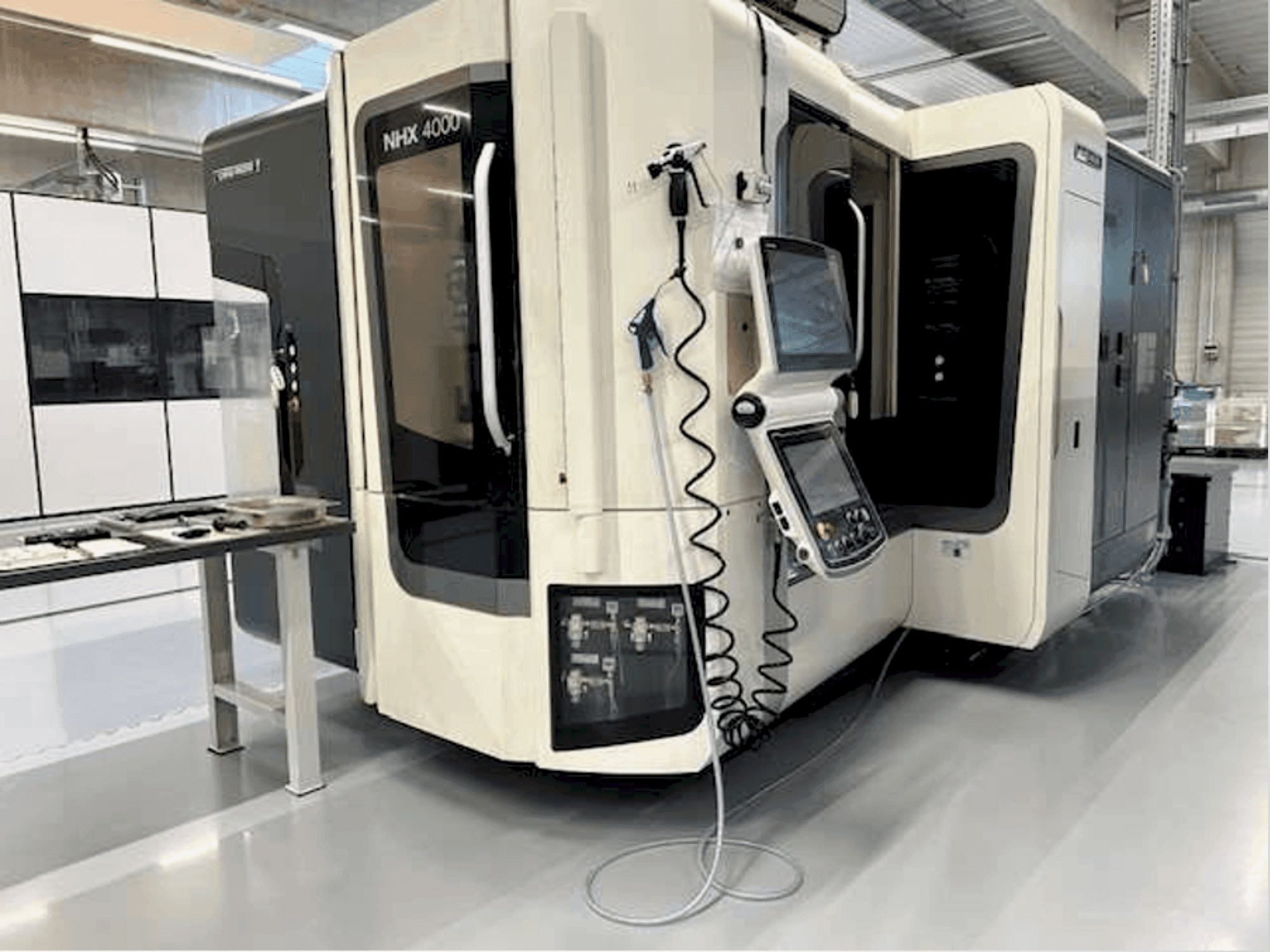

This 4-axis DMG MORI NHX 4000 horizontal machining center was manufactured in 2020. It features a high-torque spindle capable of 15,000 rpm, a 60-place tool magazine, and a NC table with 0.001° indexing. Enhanced with a F31iB control system and CELOS - ERGOline Touch, it offers advanced control and user-friendly interface. If you are looking to get high-quality milling capabilities consider the DMG MORI NHX 4000 machine we have for sale. Contact us for more information.

Overview

brand: DMG MORI
year: 2020
MODEL: NHX 4000
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - DMG MORI NHX 4000

Control Unit

Brand: FANUC
Model: F31iB

Main drive

Number of axis: 4

Tools

Slots in storage: 60

Additional Information

Additional equipment

Air filter unit, for drying and oil separation of the compressed air supplied.

Machine Benefits

Qualitative Machine Benefits

Frequency 50 hz
Metric setting
Schneider transformer 54 kva
Mpc (machine protection control)
Options for control: milling pockets and islands, fast canned cycles
Technology: english screen display, dmqp: interlit- tmf300/600 compact filter system 70 bar coolant supply through the spindle (ikz), additional 5 bar external spindle flushing, with lifting pump
Retrofits: conversion of the tool holder from bt40 to sk40, 10 additional m commands, command for inclined work surface, outer high-speed jump, function for engraving texts, signage and screen language in german

Technical Machine Benefits

Spindle: torque increase spindle 37/26/22 kw, 15000 min-1
Tool holder cone for bt-40 tool holder with face contact
Nc table with a minimum indexing of 0. 001°
Measuring probe (spindle) with optical signal transmission, renishaw omp60 + workpiece/fixture measurement
Probe (magnescale) for tool measurement and tool breakage control in the work area
Use of water-soluble coolants (emulsion)
Scraper belt conveyor with drum filter, rear ejection
Interface for high-pressure coolant system 70 bar
Interface for oil mist separator (suction opening, Ø 150 mm + electrical parts) (afs 1100)
Voltage at customer 400 v

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
