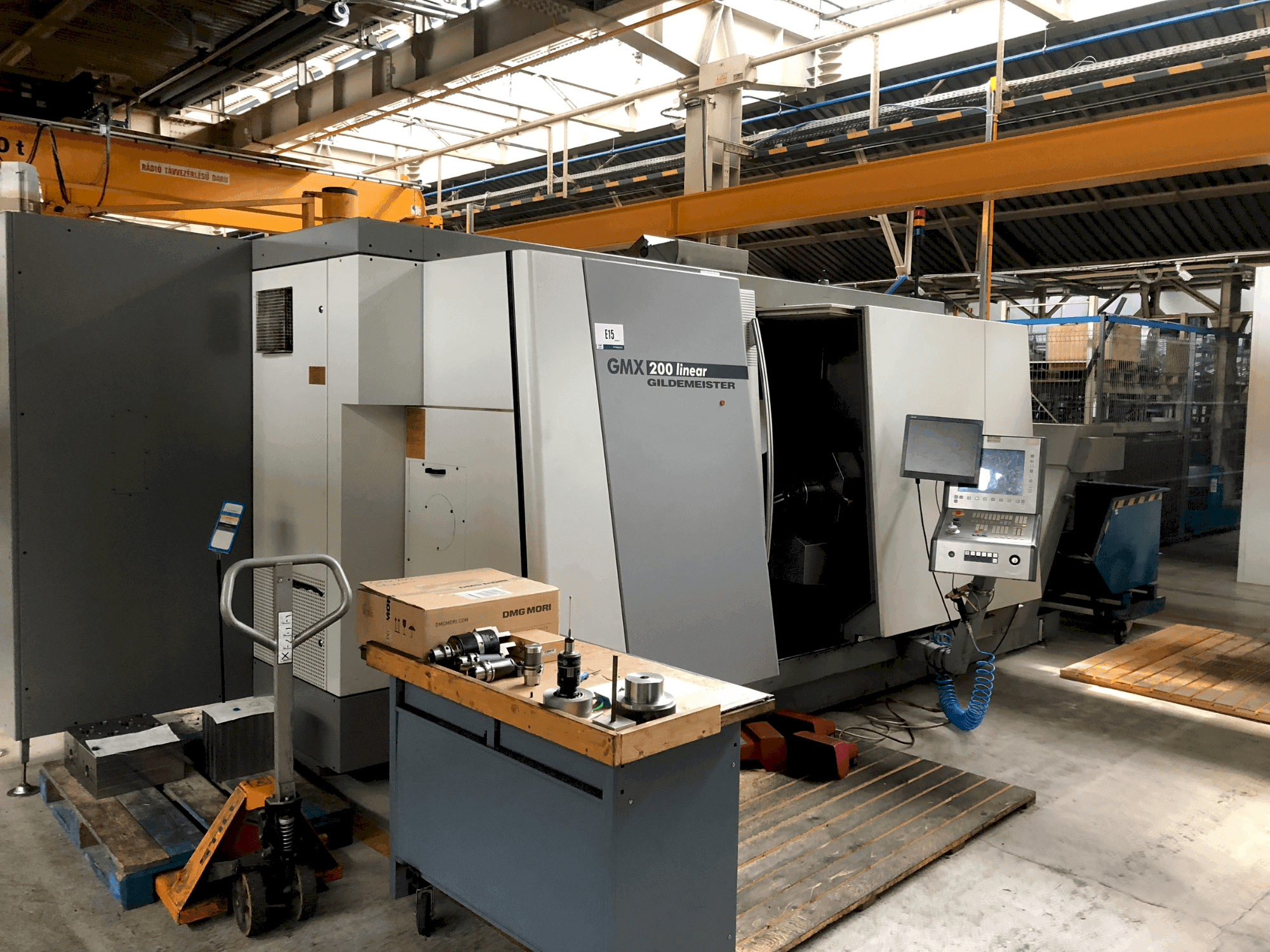

Front view of DMG MORI GMX 200 Linear (2004)  machine

DMG MORI - GMX 200 LinearHU-TUR-DMG-2004-00001

Rs. 5,274,950
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DMG MORI GMX 200 Linear Lathe was manufactured in the year 2004 in Germany and has 23500 spindle hours. It is equipped with a SIEMENS 840D powerline control unit with an Ethernet interface. The machine disposes of a main drive counter spindle which has a speed range of 5000 rpm, a main spindle left and a turning/milling spindle which has a speed range of 12000 rpm, a couple of hydraulic three-jack chucks and cooling tank with cleaning with belt filter and a spray gun. It has a differential pressure for main spindle and for counter spindle.

Overview

  • brand: DMG MORI
  • year: 2004
  • MODEL: GMX 200 Linear
  • production hours: 23500
  • application type: Turning
  • Location: Hungary
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - DMG MORI GMX 200 Linear

Control Unit

  • Brand: SIEMENS
  • Model: 840 D powerline
  • Interface: Ethernet

Main drive

  • Number of spindles: 2
  • Spindle motor power: 25/37 kW
  • Number of axis: 6

Tools

  • Type of tool holder: HSK-63A DIN 6989

Media

  • Chip conveyor: Yes
  • Cooling pressure: 20 bar

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Tow bar 68 mm
      • - C axis and spindle break (hydraulic)
      • - Y axis ± 80 mm
      • - B axis ± 120 interpolating and with hydraulic clamping
      • - Coolant tank 500 l// coolant cleaningwith belt filter // coolant pump
      • - Tool magazine 80-fold
      • - Connection for bar feed or bar loading magazine
      • - Coolant spray gun
      • - Tailstoch function for the counter spindle
      • - 2x hydraulic three-jack chuck 254 mm
    • Qualitative Machine Benefits:
      • - Absolute, direct measuring systems in all linear axes
      • - Differential pressure for main spindle
      • - Differential pressure for counter spindle
      • - Machine parameters on storage medium

    Extra information

    • - Bar package with water grap (preparation)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
