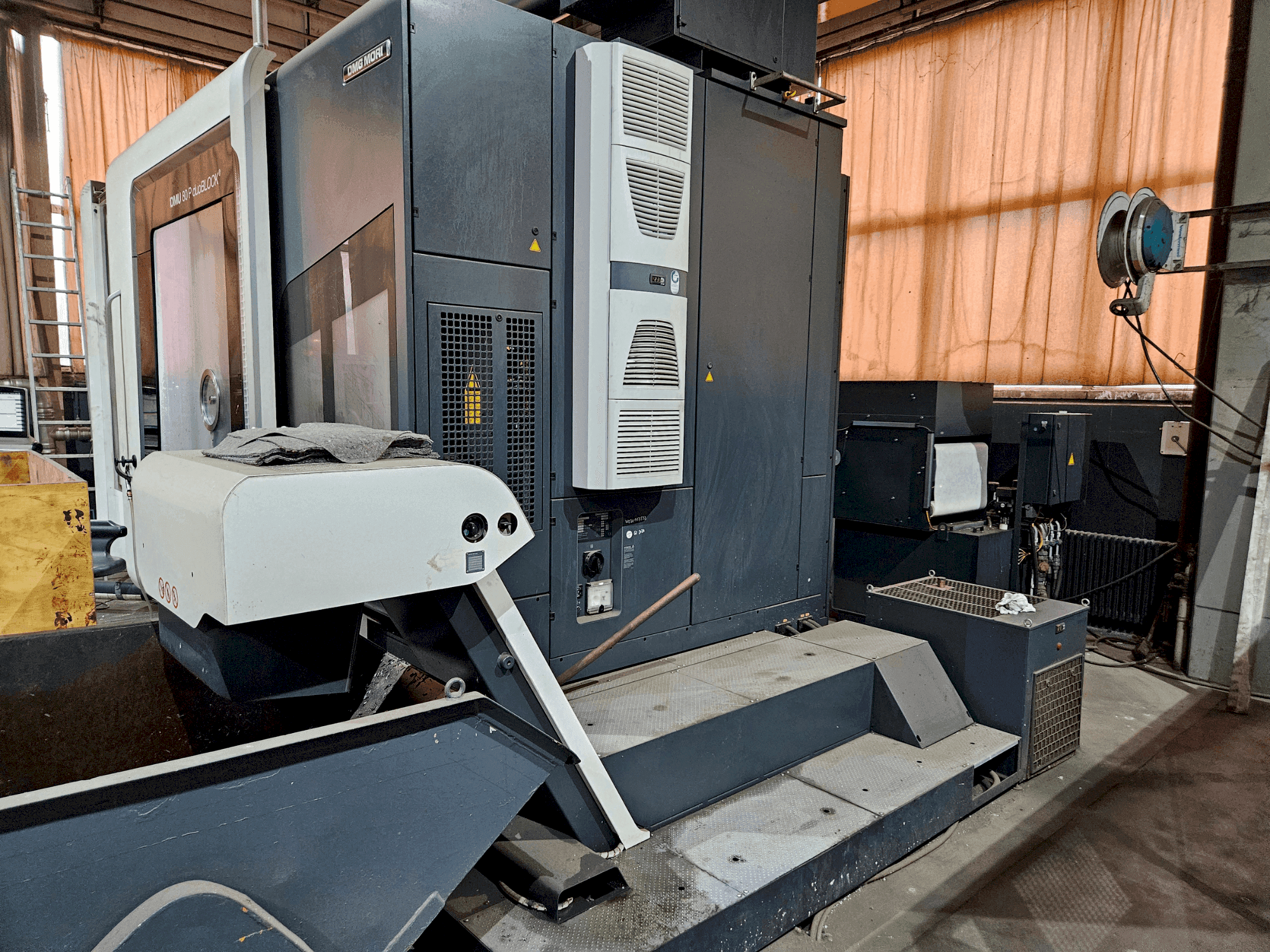

Front view of DMG MORI DMU 80 P duoBLOCK machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI DMU 80 P duoBLOCK

Photo Gallery

DMG MORI - DMU 80 P duoBLOCKDE-MIL-DMG-2015-00002

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI DMU 80 P duoBLOCK For Sale | gindumac.com

Show in original language

This 5-axis DMG MORI DMU 80 P duoBLOCK was manufactured in 2015. It features a Siemens 3D 840D sl Operate CELOS control system, a universal milling head with a swiveling range of 210°, and a motor spindle speed up to 18,000 rpm. The machine offers a working area of 800 x 1050 x 850 mm and supports a table load of 1500kg. If you are looking to get high-quality milling capabilities consider the DMG MORI DMU 80 P duoBLOCK machine we have for sale. Contact us for more information.

Overview

brand: DMG MORI
year: 2015
MODEL: DMU 80 P duoBLOCK
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG MORI DMU 80 P duoBLOCK

Control Unit

Brand: SIEMENS
Model: 840D sl Operate CELOS

Main drive

Spindle speed range: 20-18,000 rpm 1/MIN
Spindle motor power: Torque 130 Nm / 86 Nm
Tool taper: HSK A63
Number of axis: 5

Table

Outer length: 900 mm
Outer width: 700 mm
Number of tslots: 11
Table load: 1500 kg

Additional equipment

- Tank 600 litres
- Flushing gun 2 bar / 40l/min
- Oil/emulsion mist separator; throughput volume 1,600 m³/h
- Cone cleaning brush
- Infrared probe Heidenhain TS 649
- Tool measurement in the work frame Blum Laser NT-hybrid
- 3D quickSET extension
- MPC Machine Protection Control

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table: groove width: 14 mm
- - Distance between the t grooves: 63 mm
- - Direct measuring system
- - Fully protected cab
- - Package 40 bar / 17l/min
- - Ikz through spindle centre; blast air through spindle centre
- - Universal milling head with controlled axis
- - Swivelling angle max. 210°
- - Rapid traverse 30 1/min / turning speed max. 4th axis: 40 rpm / 4th axis swivelling range: 360 x 0. 001°
- - Working area: longitudinal 800mm, transverse 1050mm, vertical 850mm / feed lengthwise/crosswise/vertical: 60000/6000/6000 mm/min / rapid traverse longitudinal/transverse/vertical: 60/60/60 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
